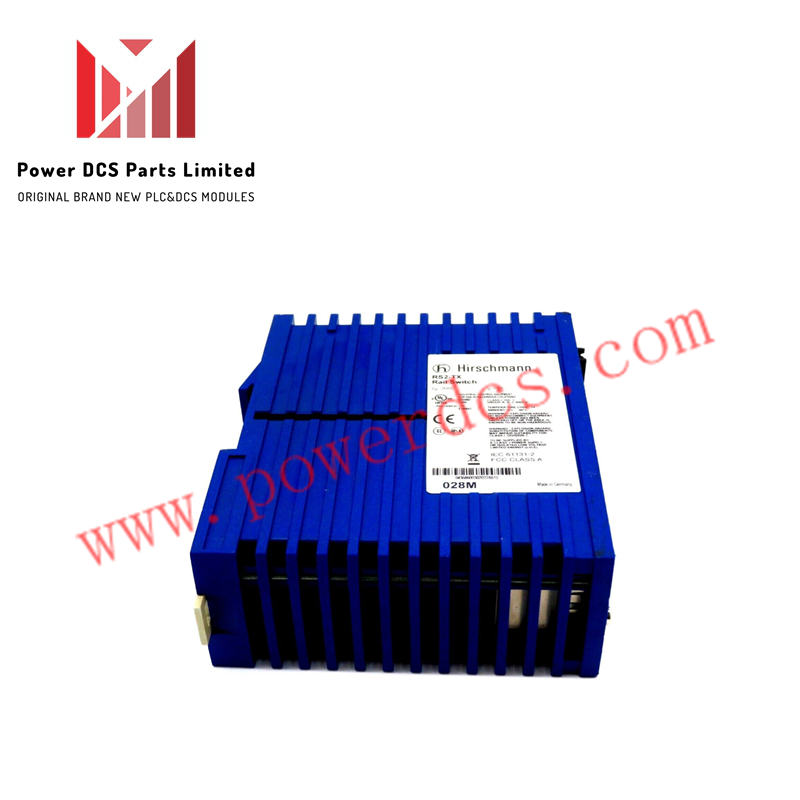

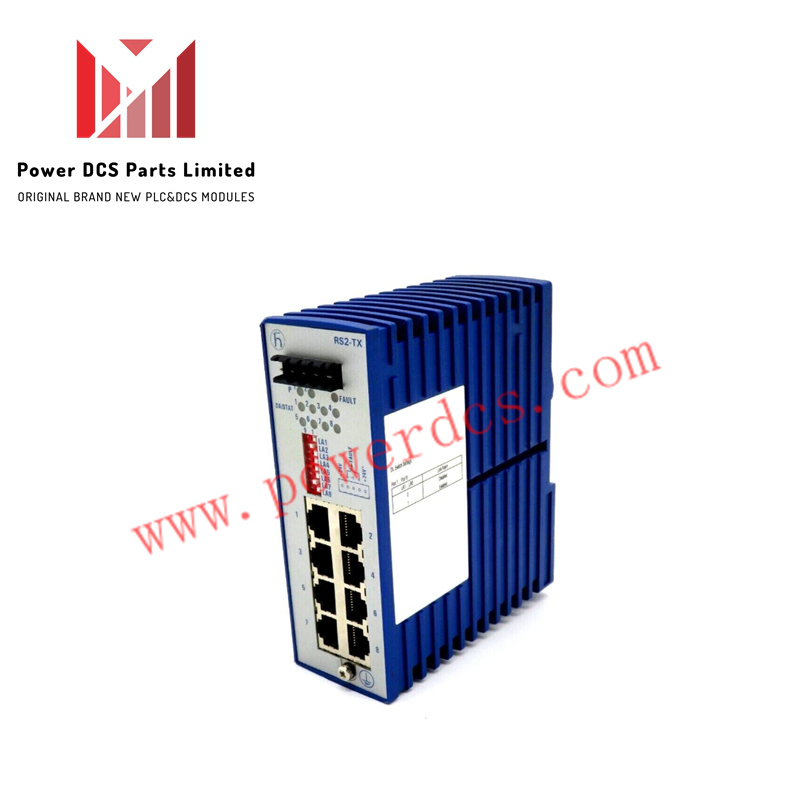

HIRSCHMANN RS2-TX RAIL SWITCH

Description

The HIRSCHMANN RS2-TX is an unmanaged industrial Ethernet switch designed for reliable data transmission in harsh environments. It supports fast Ethernet and is ideal for automation networks.

Specifications

• Model: RS2-TX

• Manufacturer: HIRSCHMANN (Belden Group)

• Type: Unmanaged industrial Ethernet switch

• Country of Origin: Germany

• Port Configuration: 8 × 10/100Base-TX RJ45 ports

• Transmission Speed: 10/100 Mbps with auto-negotiation

• Power Supply: 24V DC (range: −25% to +30%)

• Power Consumption: Max. 7W

• Operating Temperature: 0°C to +60°C

• Storage Temperature: −25°C to +70°C

• Humidity: 10% to 95% (non-condensing)

• Protection Class: IP20

• Mounting: DIN rail

• Dimensions: 47 mm × 135 mm × 111 mm

• Weight: Approx. 230 g

Features

• Reliable Switching: Supports eight RJ45 ports with auto-polarity and auto-crossing

• Compact Design: Slim housing fits easily into control cabinets

• Industrial Grade: Operates in wide temperature and humidity ranges

• Plug-and-Play Setup: No configuration required for deployment

• DIN Rail Mounting: Simplifies installation in industrial environments

• Energy Efficient: Low power consumption under 7W

• German Engineering: Built for long-term performance in automation systems
