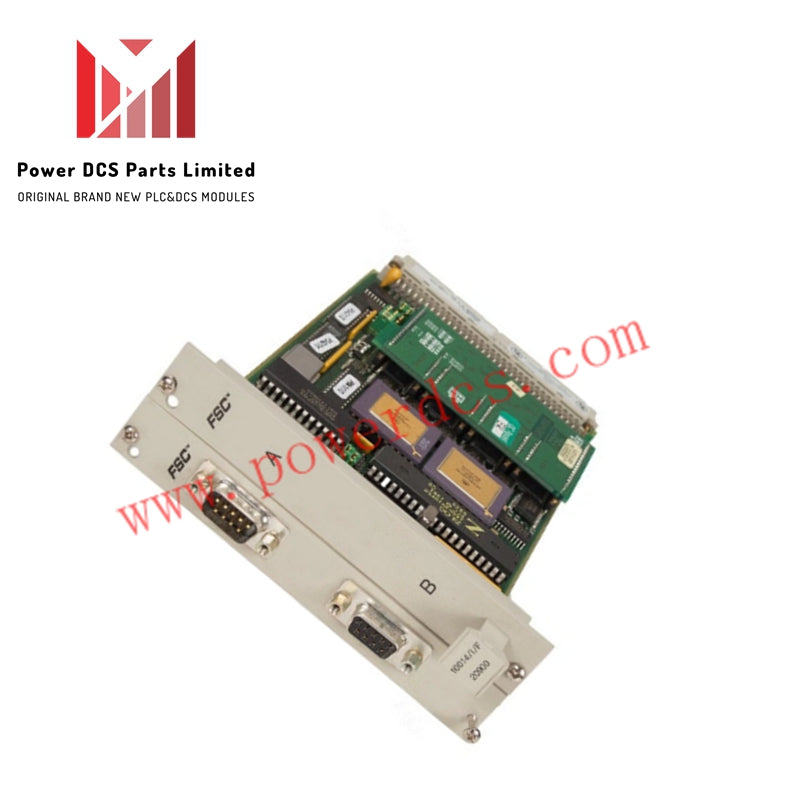

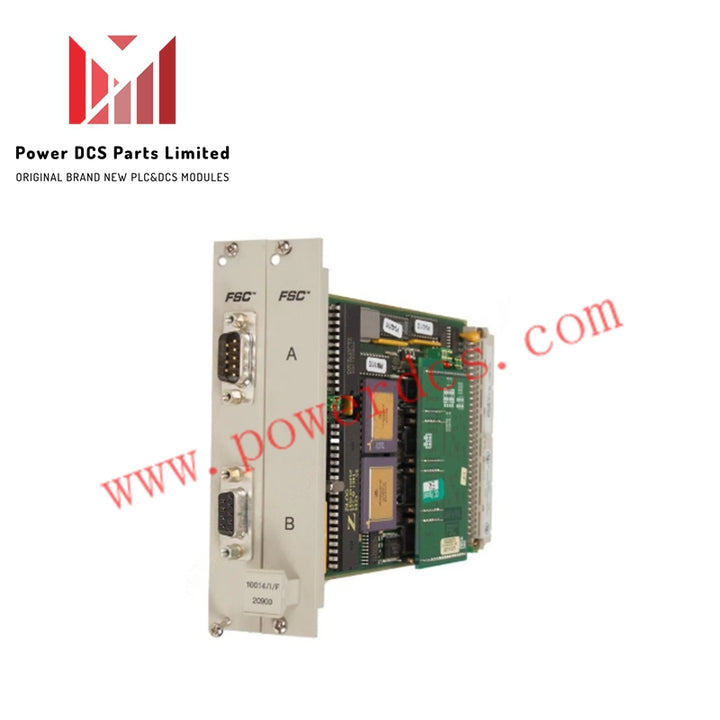

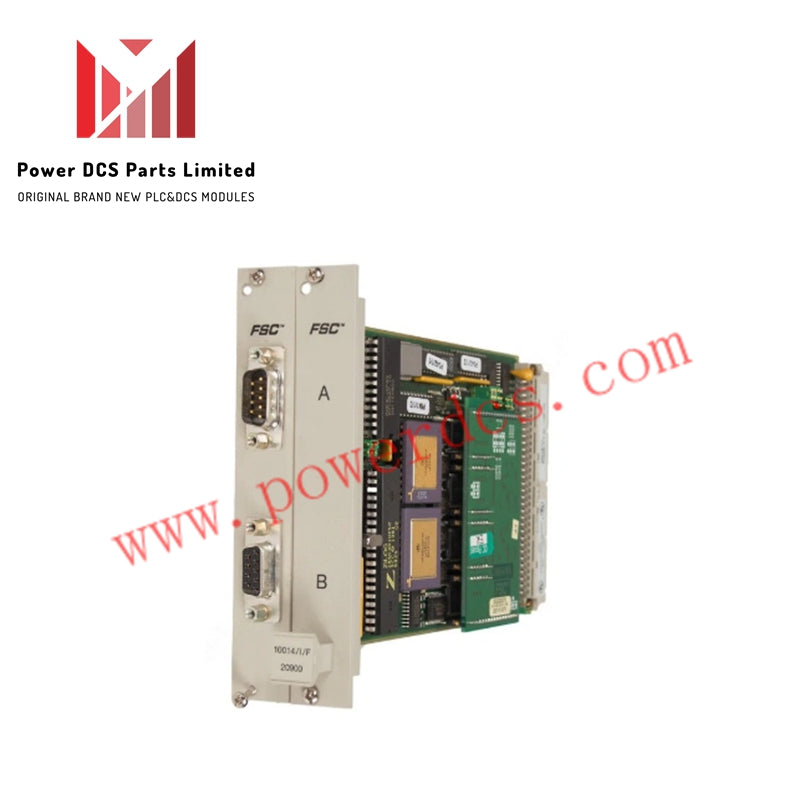

Honeywell 10014/I/F Fail-Safe Digital Output Module

The Honeywell 10014/I/F, also cataloged as the 10014 Digital Output Module, operates as a dedicated hardware component for safety-critical output switching within Honeywell SIS platforms.

Hardware Specifications

Galvanic Isolation & Fail-Safe Output Execution

Engineered to operate in high-integrity safety loops, the module utilizes channel-to-channel isolation and galvanic barriers to decouple internal rack logic from field-side voltage transients. The solid-state sourcing outputs deliver 550 mA per channel at 24 VDC while suppressing ground loops through continuous channel-to-backplane electrical isolation. Upon system power loss or critical fault detection, the output drivers execute a deterministic state transition, bringing all connected solenoids, shutdown valves, and interlocks to a de-energized safe state.

Frequently Asked Questions

Q: What mechanisms ensure the fail-safe response of output channels during system fault conditions?

A: Internal hardware watchdogs and solid-state drivers automatically force all 8 output channels into a de-energized open state if internal logic faults, backplane comms dropouts, or module power failures occur.

Q: How does the module prevent crosstalk and ground loop interference between channels?

A: Each channel features integrated galvanic isolation components that decouple field electrical ground from the internal system backplane logic and adjacent channel paths up to the rated system voltage limits.

Q: What are the primary switching load limits for the solid-state outputs?

A: Each sourcing channel supports up to 550 mA continuous current at 24 VDC, with a maximum allowable load capacitance of 1 uF and a maximum lamp load rating of 120 mA.

Field Installation Guidelines

1. Ensure the system rack power supply is completely de-energized prior to inserting or removing the module card.
2. Ground all installation tools and wear a grounded wrist strap to prevent ESD damage to sensitive solid-state switching circuitry.
3. Inspect backplane edge connector pins for dust or mechanical deformation before seating the unit into the rack slot.
4. Route field output wiring in separate wire ducts away from high-voltage AC lines to prevent inductive noise coupling.
5. Confirm that total per-channel continuous load current does not exceed 550 mA to prevent thermal overload on internal drivers.
