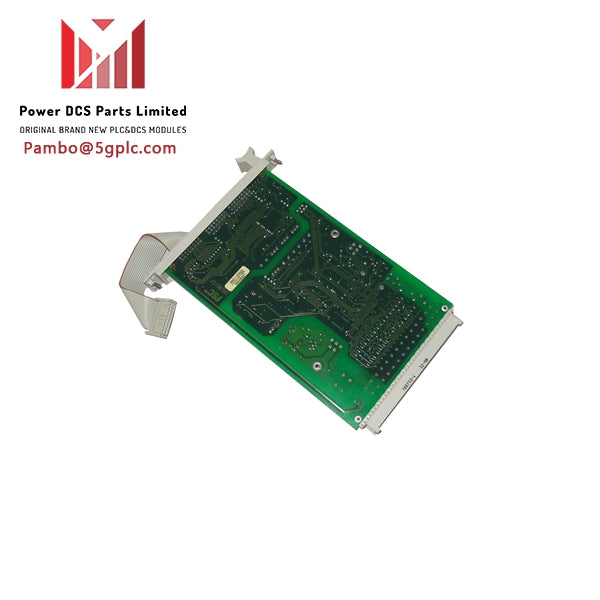

10310/2/1 | Honeywell | Earth Leakage Detector

Configured for insulation resistance monitoring and ground fault current detection in industrial control networks, the Honeywell 10310/2/1 (10310/2/1) Earth Leakage Detector (ELD) provides direct physical/electrical execution across 24 VDC and 115 VAC power loops. It monitors leakage currents up to 1 A, detecting insulation degradation and initiating protective responses to safeguard sensitive electronic equipment.

Hardware Specifications

Channel-to-Channel Isolation And Cold Junction Compensation

Operating within safety-instrumented process control infrastructures, the detector incorporates robust electrical isolation boundaries to separate high-voltage AC sensing circuits from low-voltage internal logic. The input stage maintains high common-mode rejection to prevent false fault trips induced by transient electrical noise. Furthermore, internal reference networks preserve measurement stability across fluctuating thermal conditions, ensuring precise ground fault detection alongside standard 4-20 mA HART loop protocol parameters and cold junction compensation (CJC) requirements where applicable.

Frequently Asked Questions

Q: Does the 10310/2/1 detector support hot-swapping under power within the rack backplane?

A: Hot-swapping is restricted; power must be completely disconnected from the unit and its associated circuits prior to removal or insertion to prevent electrical arcing or system fault propagation.

Q: What are the primary input voltage ratings supported by this earth leakage detector?

A: The module is designed to interface with both 24 VDC control power supplies and 115 VAC monitoring lines, rated for a maximum leakage current detection threshold of 1 A.

Field Installation Guidelines

1. Ensure all system power sources (24 VDC and 115 VAC) are fully isolated and locked out before handling or installing the unit.
2. Mount the detector securely within its designated electrical enclosure or panel slot, verifying firm mechanical seating.
3. Terminate all sensing and power wiring securely, ensuring proper earth ground continuity to maintain effective leakage detection accuracy.
4. Verify wiring integrity and insulation resistance parameters before restoring power to the monitored circuit.
