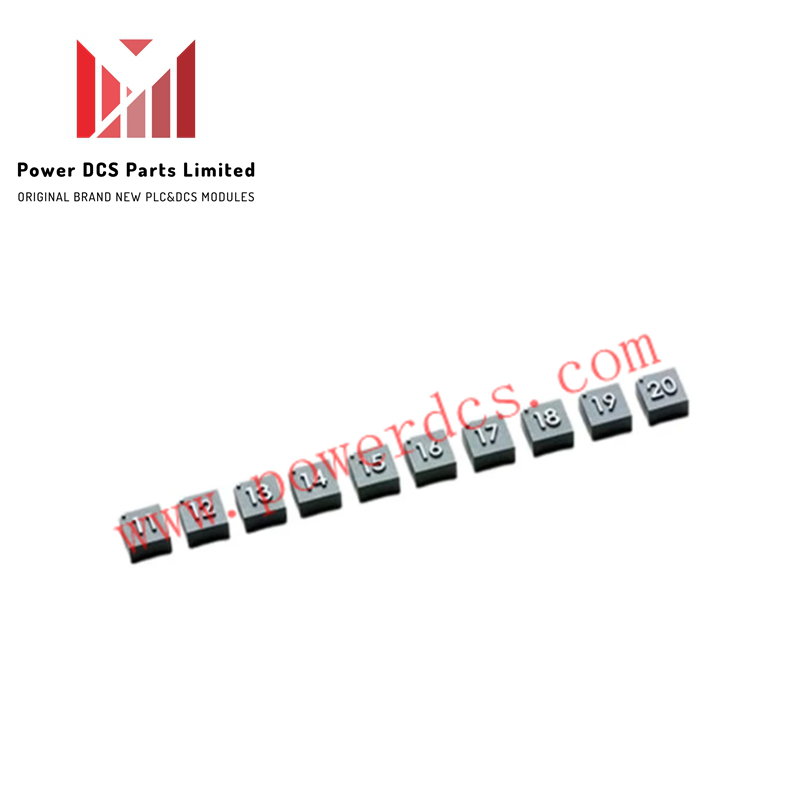

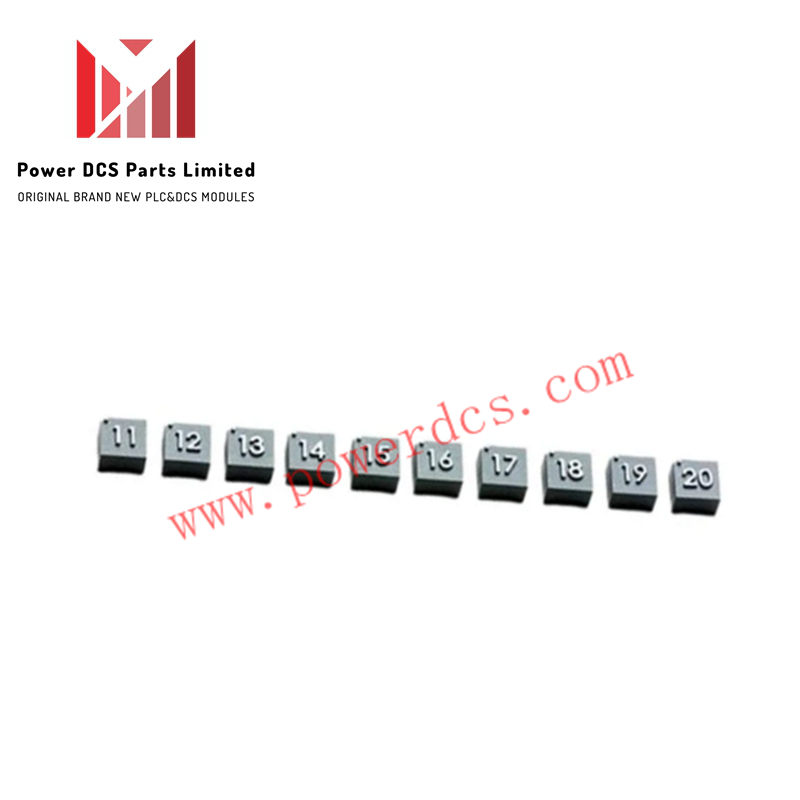

Honeywell 51153818-203 Jumper Kit

The Honeywell 51153818-203, also cataloged as the 51153818-203 Jumper Kit, serves as the primary 51153818-203 Jumper Kit utilized to execute backplane signal distribution and I/O module interconnectivity across Honeywell TotalPlant Solution (TPS) platforms.

Hardware Specifications

Honeywell DCS Process Control and Loop Isolation

Integrated within Honeywell TotalPlant Solution (TPS) distributed control architectures, the 51153818-203 jumper kit facilitates precise electrical signal routing between I/O modules and backplane bus terminals. While field instrumentation loops frequently transmit process variables via 4-20 mA HART protocol or FOUNDATION Fieldbus connectivity requiring strict channel-to-channel isolation, backplane jumper blocks must maintain low-resistance contact paths to prevent signal attenuation. The 2.54 mm pitch wire jumpers are rated for 250 V AC and 10 A per connection, ensuring stable electrical execution across high-density terminal blocks without thermal degradation or impedance mismatch.

Frequently Asked Questions

Q: Can the 51153818-203 jumper kit be installed or adjusted while the TPS backplane and I/O modules are energized?

A: Installing or repositioning wire jumpers on live backplane terminals can induce transient voltage spikes, short-circuit active signal loops, or trigger system communication faults; de-energize the rack before servicing.

Q: How does the 2.54 mm pitch configuration affect installation within confined cabinet spaces?

A: The standard 2.54 mm jumper pitch matches high-density terminal block layouts, enabling precise pin alignment and secure seating without crowding adjacent signal wiring.

Q: What precautions should be taken regarding current ratings when utilizing these wire jumpers?

A: Each individual wire jumper is rated for a maximum of 10 A at 250 V AC; ensure that connected load currents do not exceed this threshold to prevent overheating and insulation breakdown.

Field Installation Guidelines

• Verify that system power to the target rack or terminal block is completely isolated and locked out before installing wire jumpers.
• Inspect the jumper pins and terminal receptacles for oxidation, bending, or particulate contamination prior to insertion.
• Ensure that wire jumpers are pressed firmly into the 2.54 mm pitch receptacles to achieve full mechanical engagement and low electrical contact resistance.
• Verify that conductors connected to adjacent terminals conform to the 18-22 AWG compatibility range to prevent loose connections under industrial vibration.
