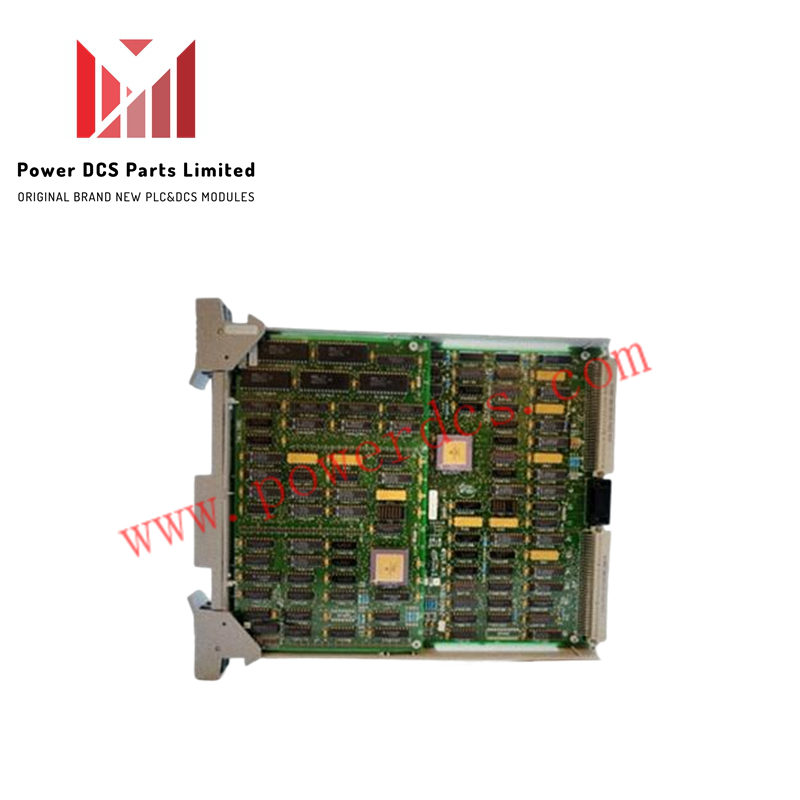

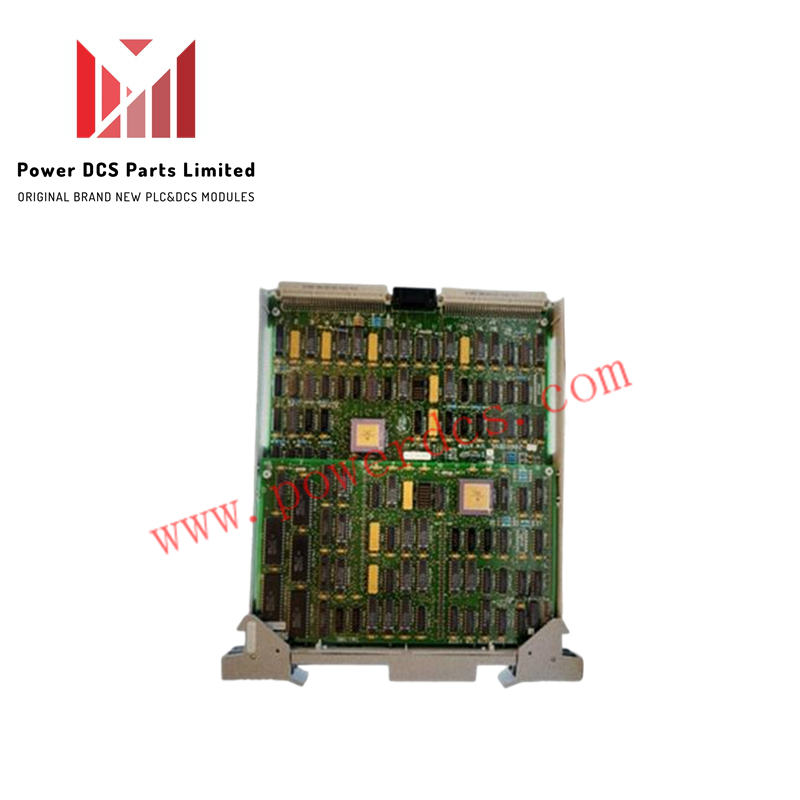

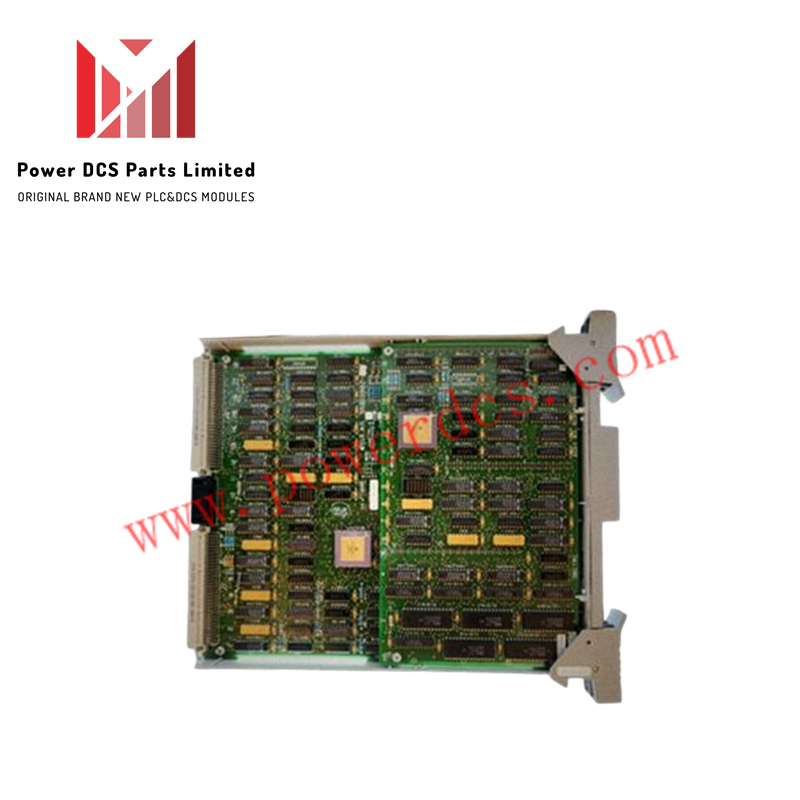

Honeywell 51155506-102 Universal Input Module

The Honeywell 51155506-102, also cataloged as the 51155506-102 Universal Input Module (UIM), operates as a dedicated processing element for multi-signal data acquisition across Experion PKS and TPS architectures.

Hardware Specifications

Honeywell DCS Process Control and Loop Isolation

Integrated within Honeywell Experion PKS and TPS distributed control environments, the 51155506-102 module acquires and digitizes diverse field inputs, including thermocouples, RTDs, and voltage or current loops. While many field instruments communicate via 4-20 mA HART protocol or FOUNDATION Fieldbus connectivity, universal input cards require rigorous channel-to-channel isolation and precise cold junction compensation (CJC) to eliminate common-mode voltage errors and signal cross-talk. The internal 500 V galvanic isolation barrier protects controller backplane circuitry from high-voltage field transients and ground potential shifts across complex industrial installations.

Frequently Asked Questions

Q: Can the 51155506-102 universal input module be hot-swapped while the Experion PKS chassis is energized?

A: Hot-swapping I/O modules under live backplane power must adhere strictly to system power budget and chassis revision guidelines to prevent backplane bus communication faults or channel reset anomalies.

Q: How does the module handle cold junction compensation for thermocouple inputs?

A: Internal terminal temperature tracking circuitry automatically applies cold junction compensation corrections within the firmware conversion matrix, preserving the rated +/- 0.1% measurement accuracy across ambient temperature swings.

Q: What communication protocols are supported for upper-level controller data exchange?

A: The module interfaces with system processors via the PMC backplane and supports upper-level protocol integration including Modbus, Profibus, and Ethernet/IP frameworks.

Field Installation Guidelines

• Verify that the 24 VDC supply rail is stable and isolated before inserting the module into the designated PMC backplane slot.
• Ensure module retaining mechanisms are fully engaged to prevent backplane bus disconnection under severe industrial vibration profiles.
• Terminate field sensor wiring to designated terminal blocks, maintaining strict shielding continuity for analog and thermocouple leads.
• Route signal cables through dedicated metallic conduits, segregated completely from high-voltage power lines and variable frequency drive outputs.
