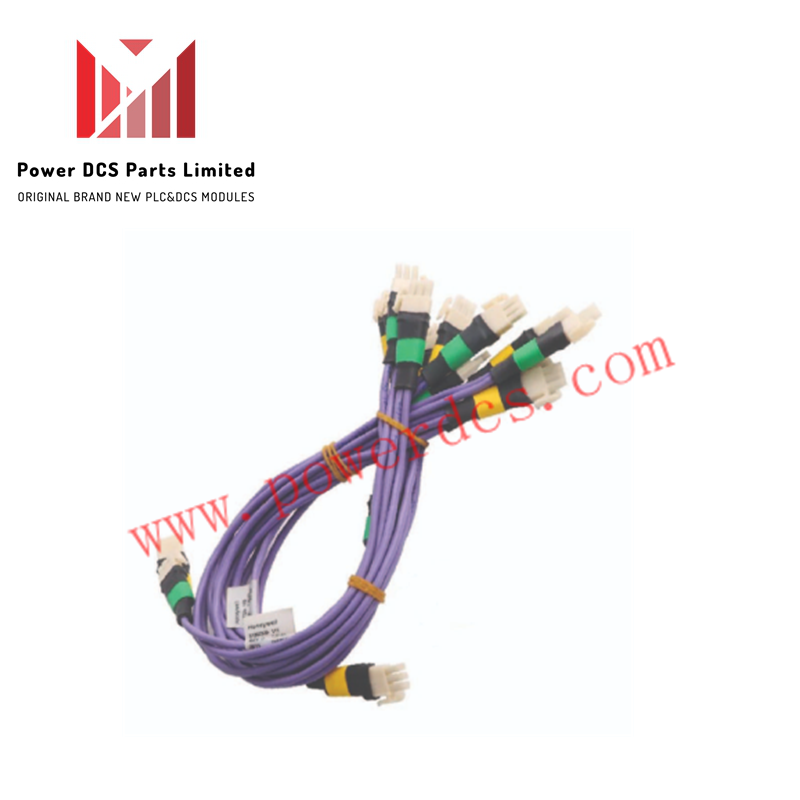

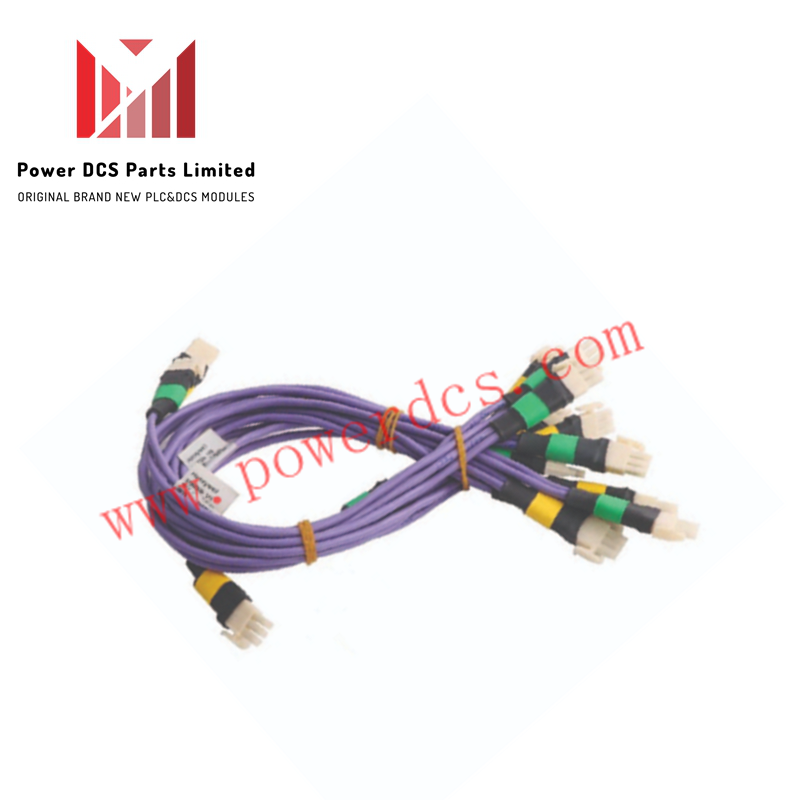

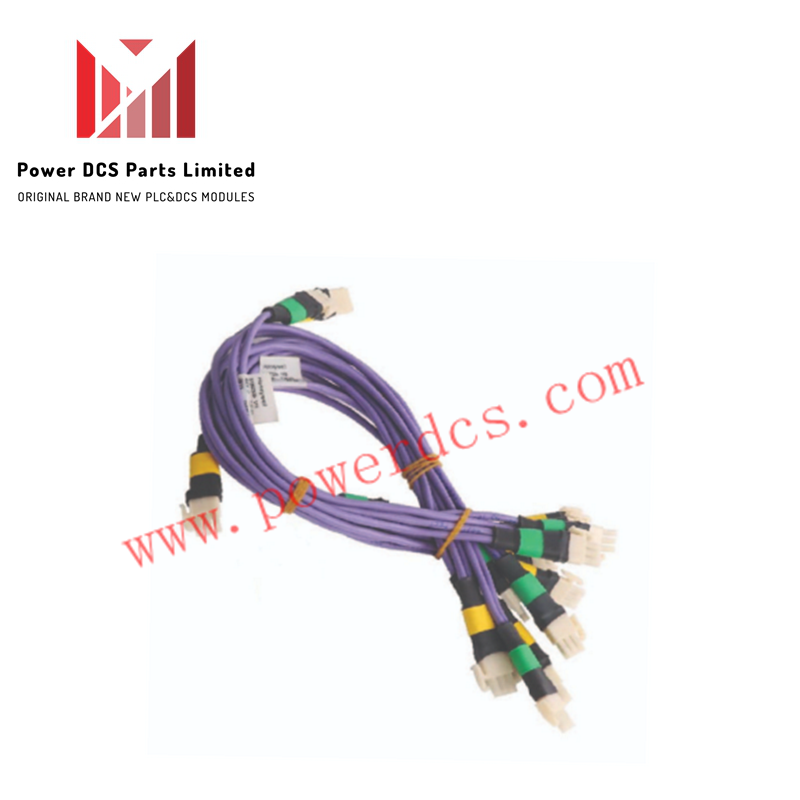

Honeywell 51202329-211 I/O Link Cable

The 51202329-211 is a shielded serial bus cable assembly engineered by Honeywell for deterministic data communication and signal routing in DCS and PLC chassis networks. It links distributed process control racks to preserve serial differential signals, system diagnostics, and pass-through 4-20 mA HART digital modulation across the I/O link interface.

Noise Immunity and Signal Isolation

The cable features high-density foil and braided shielding to protect high-speed serial bus transmissions against electromagnetic interference. Internal multi-conductor twisted pairing prevents signal cross-talk and capacitive line loading between adjacent differential lines during high-speed I/O link scanning cycles.

Cable Design and Mechanical Specifications

As a passive interconnect assembly, the module requires no external operating power. It is supplied with factory-terminated multi-pin connectors with integrated metallic backshells. The cable shield braid ties directly to these backshells, establishing continuous shield grounding to frame ground while isolating signal logic grounds to prevent ground loops.

Field Installation Guidelines

1. Inspect connector pins and cable jacket for physical damage or contamination before routing.
2. Lay the cable in dedicated low-voltage instrument raceways, maintaining at least 300 mm separation from high-voltage AC cables and drive lines.
3. Observe a minimum static bend radius of 10 times the outer cable diameter to prevent internal conductor strain.
4. Align connector keys carefully and press straight onto the I/O link header until retaining latches lock fully.
5. Secure cable strain relief clamps adjacent to termination ports to eliminate mechanical tension on connectors.

Frequently Asked Questions

Q: Can the 51202329-211 cable be cut and field-terminated?

A: No. The cable features factory-molded connectors designed to maintain controlled impedance and continuous shield grounding.

Q: How does the cable prevent ground loops between connected chassis?

A: The shield braid connects directly to the metallic connector backshell, providing a continuous path to chassis frame ground without tying into logic grounds.

Q: What clearance is required when routing near power lines?

A: A minimum physical separation of 300 mm should be maintained from high-voltage AC lines and variable frequency drives to prevent induced noise coupling.
