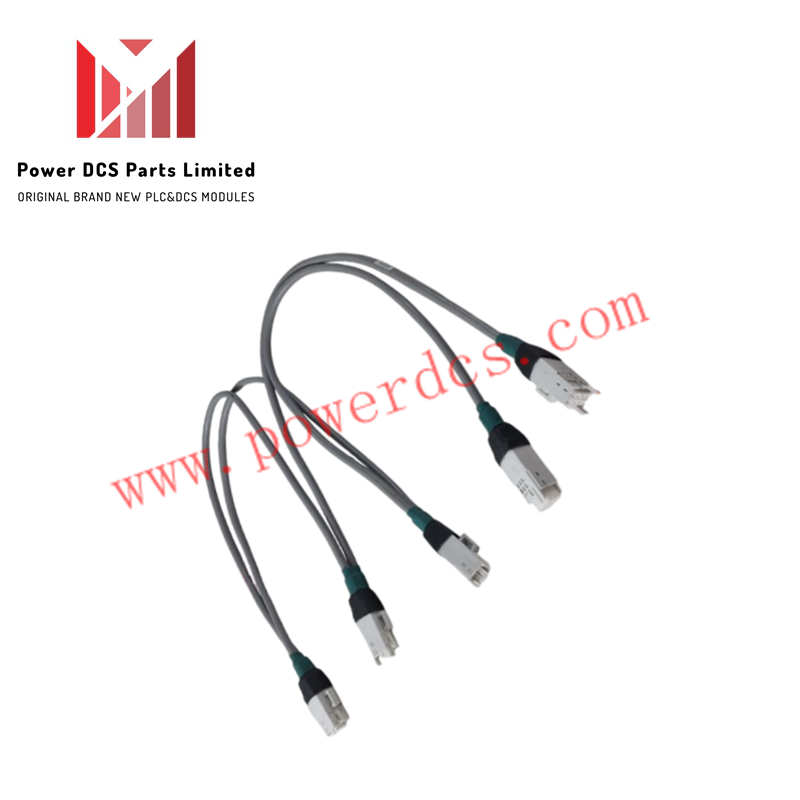

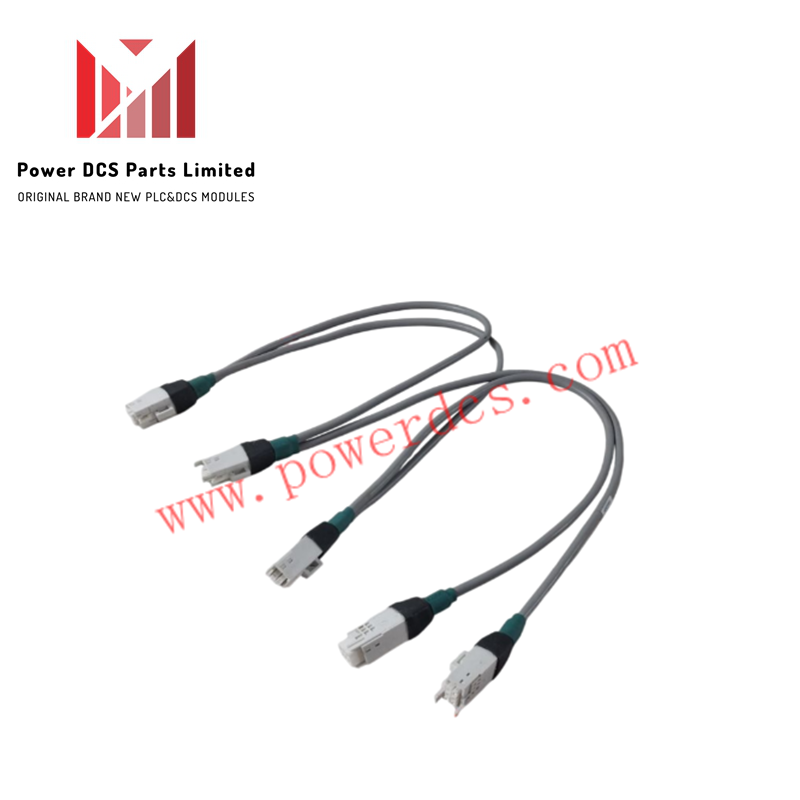

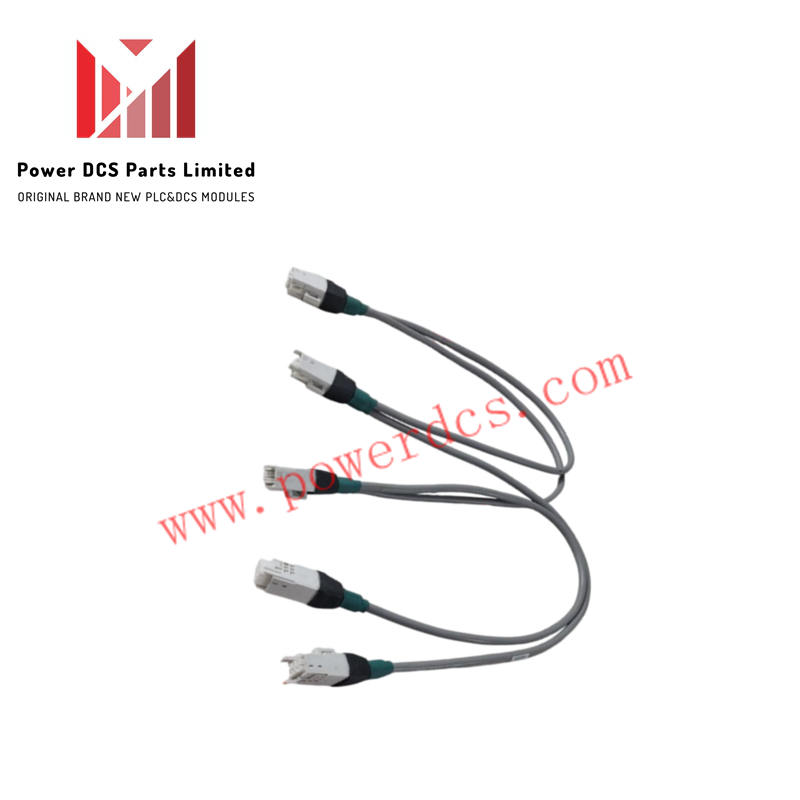

Honeywell 51202329-311 Violet Drop Cable

The 51202329-211 (51202329-311 Violet Drop Cable) is a dedicated passive interconnect cable engineered by Honeywell for low-voltage I/O link communications in DCS control networks. It provides direct physical and electrical signal routing across control racks, ensuring reliable data pass-through and loop integration.

Noise Rejection and Signal Isolation

The assembly utilizes an integrated high-density outer braid shield to protect communications against electromagnetic and radio-frequency interference (EMI/RFI). Its multi-conductor geometry preserves channel-to-channel isolation, preventing capacitive cross-talk between adjacent I/O communication channels in dense panel layouts while supporting 4-20 mA HART digital diagnostic telemetry overlays.

Field Installation Guidelines

1. Route violet drop cables through dedicated low-voltage wireways, maintaining separation from high-voltage AC power lines.
2. Observe a minimum static bend radius of 10 times the cable outer diameter to prevent internal conductor strain.
3. Securely latch factory-terminated connectors onto card headers until physical retention clips engage fully.
4. Terminate the shield braid to designated ground bars at a single point only to eliminate potential ground loop currents.
5. Apply clear identification labels to both ends of the cable assembly to facilitate maintenance traceability.

Frequently Asked Questions

Q: Can the 51202329-311 cable be disconnected while the system is powered?

A: Physical disconnection will not damage the passive cable, but controlled bus power removal is recommended to prevent diagnostic fault trips on connected I/O link modules.

Q: How does the cable shielding affect redundancy failover switching?

A: The shielding provides passive EMI/RFI suppression only; system failover speed is governed entirely by controller backplane logic and firmware.

Q: How should shield grounding be configured during cabinet installation?

A: Connect the metallic shield braid to local earth ground at a single point only to prevent ground loops across connected sub-racks.
