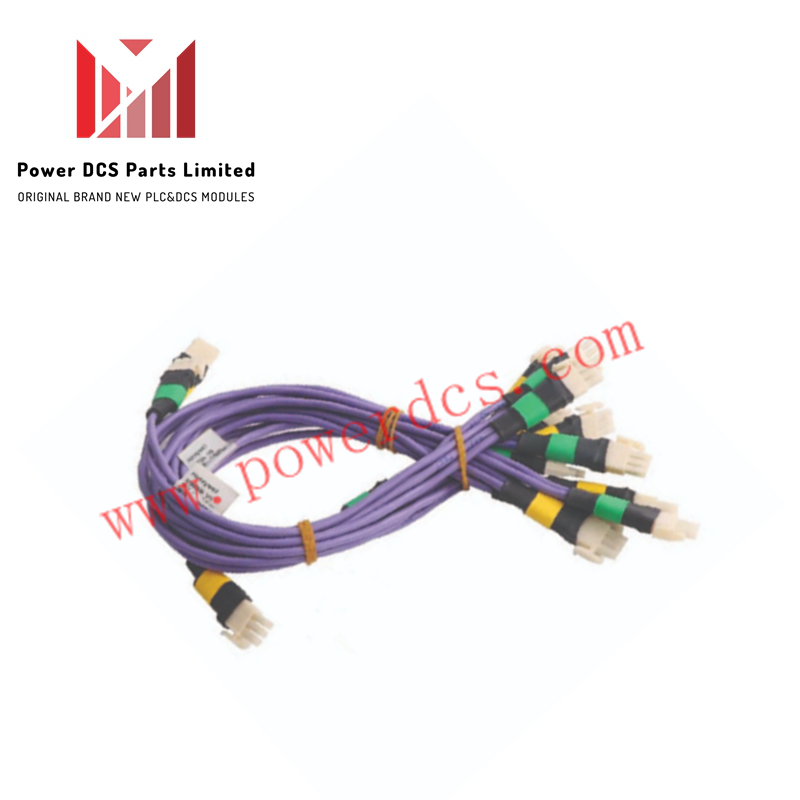

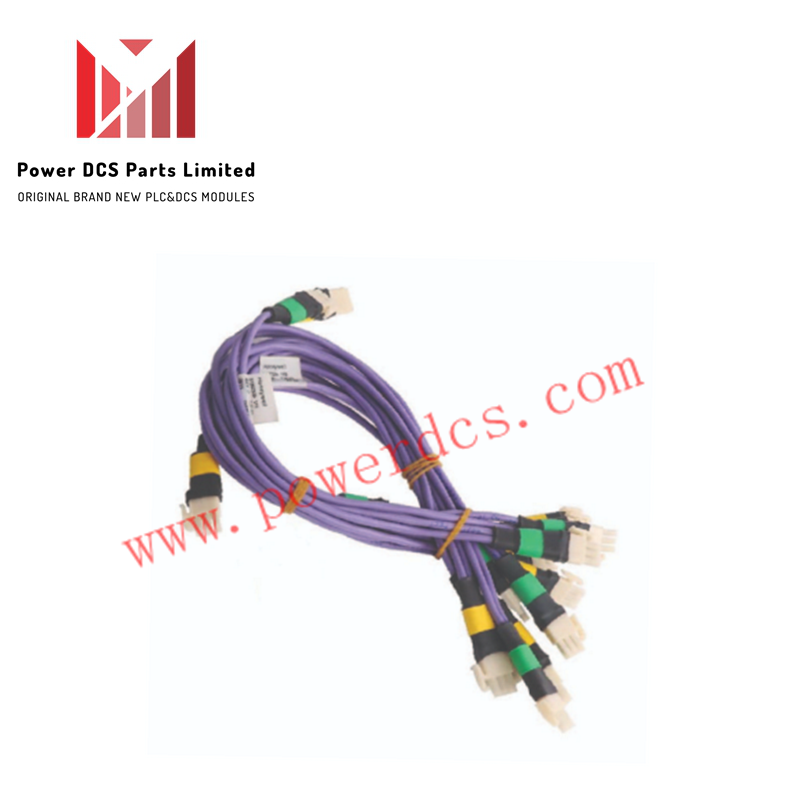

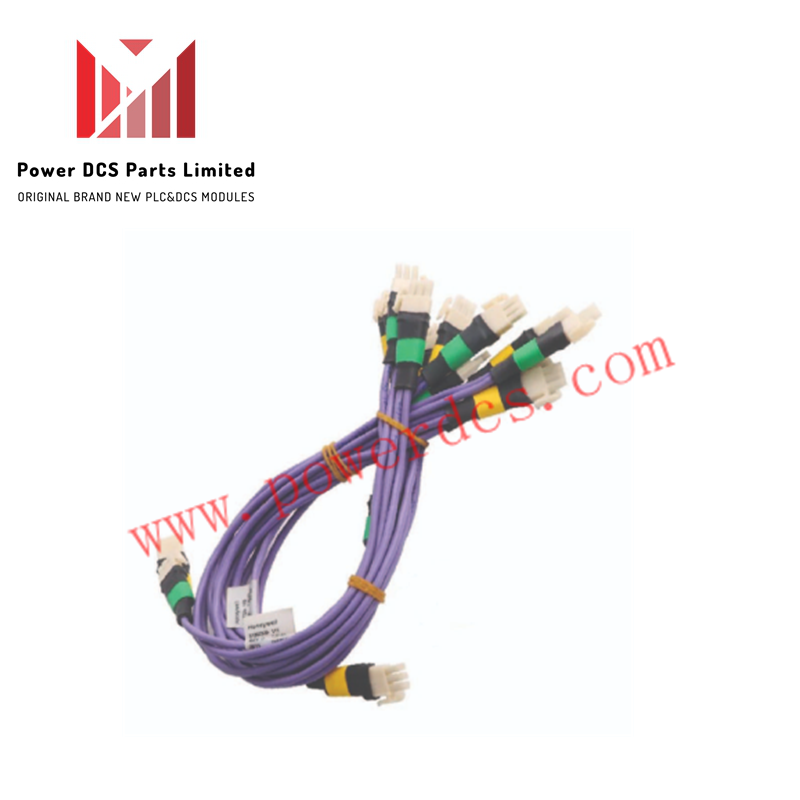

Honeywell 51202329-312 I/O Link Cable Pair

Configured for multi-drop communication and power transmission in industrial control systems, the Honeywell 51202329-312 (51202329-312 I/O Link Cable Pair) provides direct physical signal and power distribution execution.

Hardware Specifications

DCS Signal Transmission and Isolation

The assembly integrates within Honeywell process automation platforms, maintaining rigorous channel-to-channel isolation and stable 24 VAC distribution across distributed field nodes. Standard configuration supports multi-drop communication loops alongside power delivery, where internal shielding prevents electromagnetic interference (EMI) from corrupting data packets. The physical wiring architecture ensures deterministic bus traversal without introducing latency or feedback degradation across connected IOTA assemblies.

Frequently Asked Questions

Q: Does the 51202329-312 support hot-swapping on active controller networks?

A: Cabling adjustments must be performed with upstream loop power and 24 VAC supply isolated to prevent communication dropouts or transient bus faults on connected IOTA nodes.

Q: What is the maximum power consumption rating for this cable assembly?

A: The assembly is rated for a maximum power consumption of 16.5 VA under full operational load conditions.

Field Installation Guidelines

1. Verify that system power supplies and communication loops are de-energized prior to routing and connecting the cable set between controller nodes and terminal assemblies.
2. Route the 1.5-meter cable along designated internal cabinet wireways, maintaining physical separation from high-voltage AC power lines to prevent induced noise coupling.
3. Secure connector plugs firmly to terminal interfaces, ensuring locking mechanisms or retention screws are fully engaged to withstand industrial vibration environments.
