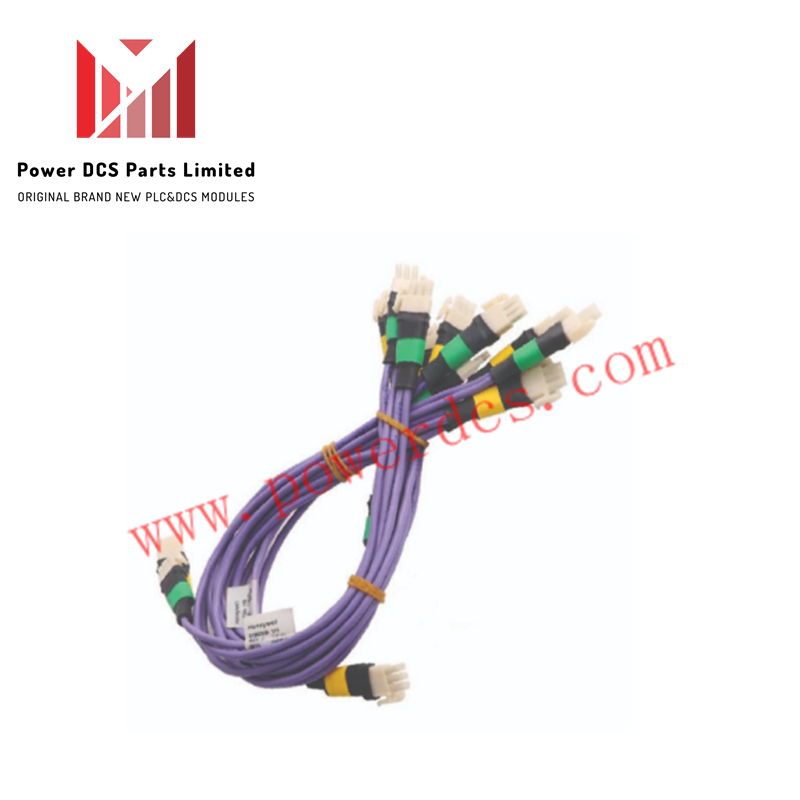

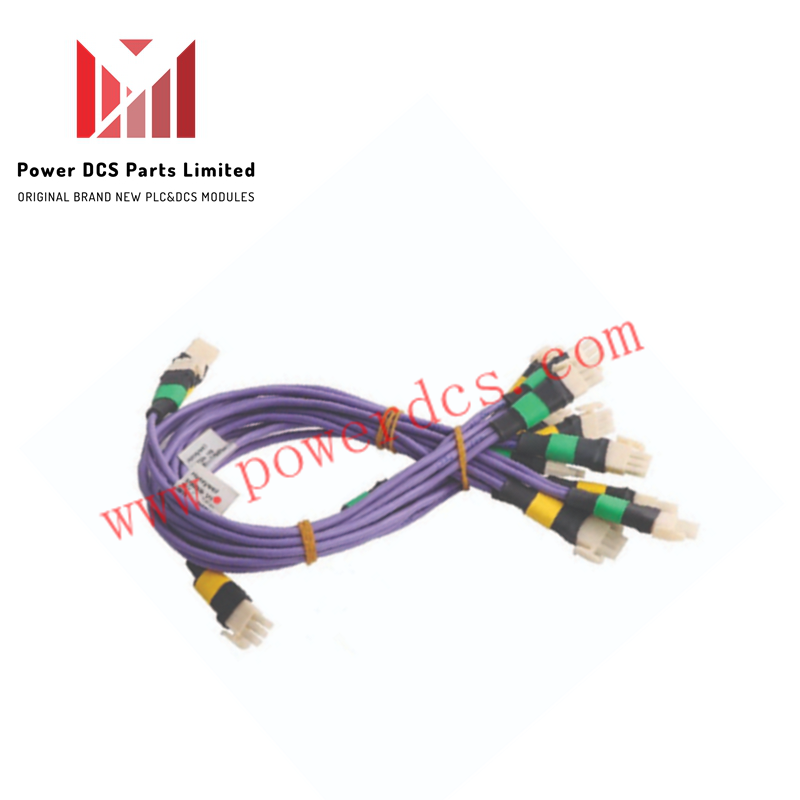

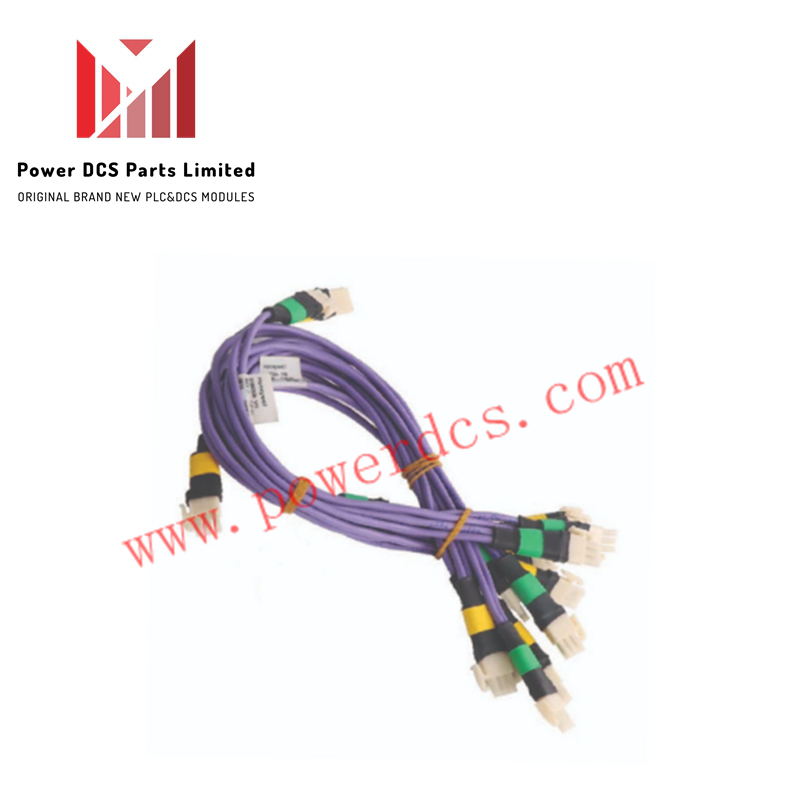

Honeywell 51204042-200 I/O Link Interface Cable

Specifications

  • Manufacturer: Honeywell

  • Product No.: 51204042-200

  • Condition: 10 Items in Stock

  • Product Type: I/O Link Cables

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

The Honeywell 51204042-200, also cataloged as the 51204042-200 I/O Link Interface Cable, operates as a dedicated hardware component for high-speed serial bus communications and signal interconnection within Honeywell Experion PKS and TDC 3000 cabinet subsystems.

Hardware Specifications

Parameter Specification
Model 51204042-200
Brand Honeywell
Origin USA
Weight 0.2 kg (estimated)
Dimensions Standard cabinet interconnection length
Operating Temp -20 deg C to 70 deg C
Power Consumption Passive interconnect assembly (0 W)
Cable Type High-speed I/O link interface cable
Shielding Structure Drain wire terminated to chassis ground via FASTON terminals

Process Control and Signal Communication Interfaces

The assembly integrates within Honeywell distributed control architecture, maintaining strict channel-to-channel isolation and cold junction compensation (CJC) path integrity across distributed nodes. Standard configuration supports 4-20 mA HART loop protocol environments alongside high-speed serial bus communication layers. The integrated shielding suppresses electromagnetic interference (EMI) through direct chassis grounding via FASTON terminals, ensuring deterministic bus operation and low-latency packet transmission between field devices and master controller cards.

Frequently Asked Questions

Q: Can the 51204042-200 cable assembly be utilized in systems equipped with I/O Link protector modules?

A: No, this cable is designed for CE compliant subsystems operating without I/O Link protector modules. When migrating or upgrading to protector module architectures, the cable assembly must be replaced with the 51195479-xxx series cable.

Q: How is the cable shield grounded to prevent noise pickup across the communication link?

A: The cable features integrated FASTON terminals designed to connect directly to the metallic frame of the card file, establishing a low-impedance ground path for stray high-frequency interference.

Field Installation Guidelines

  1. Crimp and snap the FASTON shield connectors firmly onto the card file chassis grounding tabs to ensure low-resistance earth bonding before powering the bus.
  2. Maintain a minimum cable bend radius of 10 times the outer cable diameter during installation to prevent conductor strain or shield mesh deformation.
  3. Route the I/O link interface cable through dedicated low-voltage instrument ducts, keeping physical separation from high-current AC power cables.
