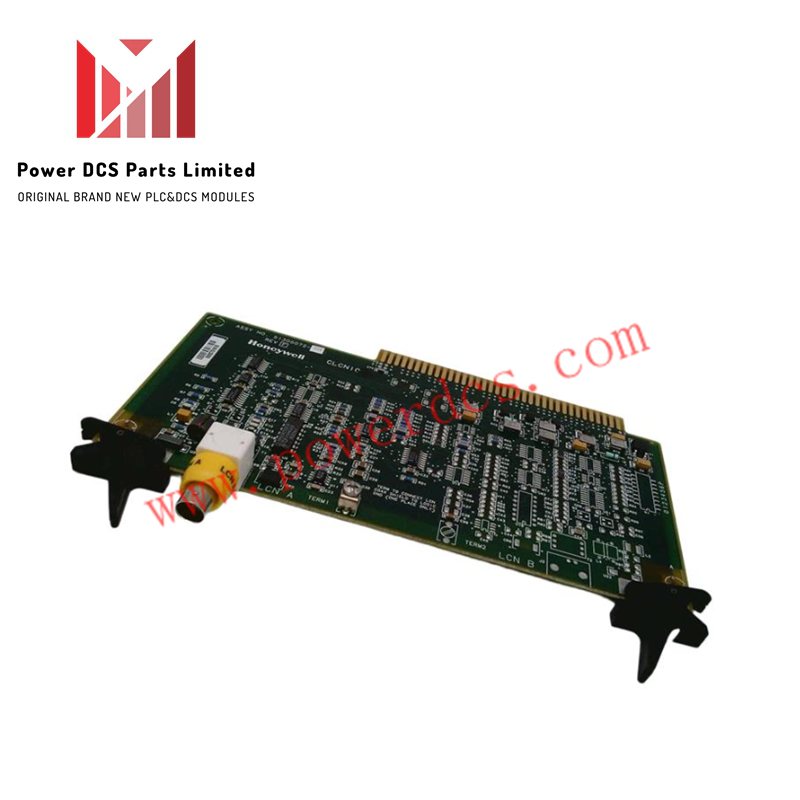

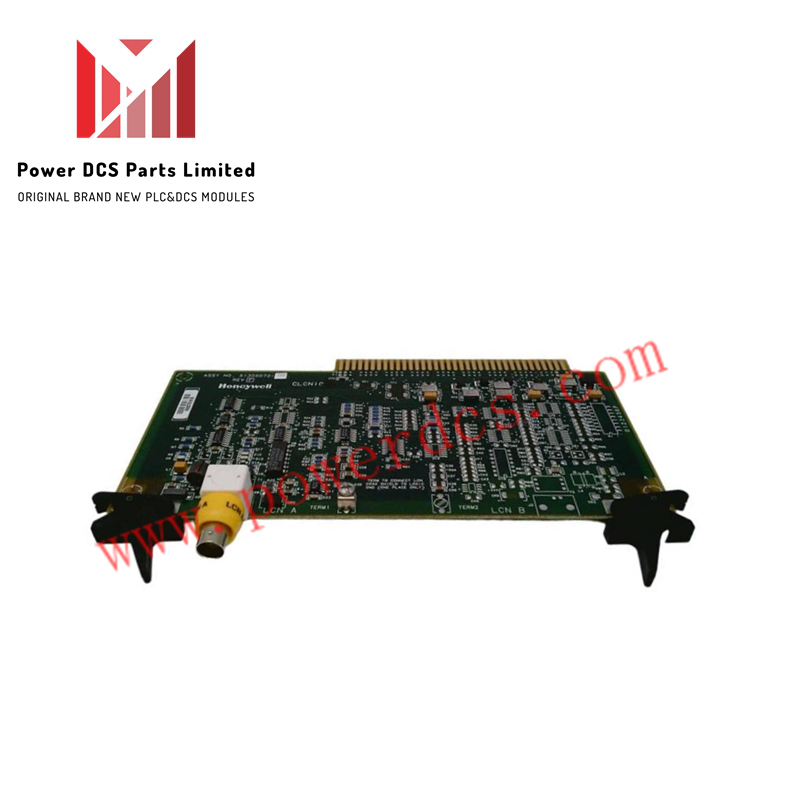

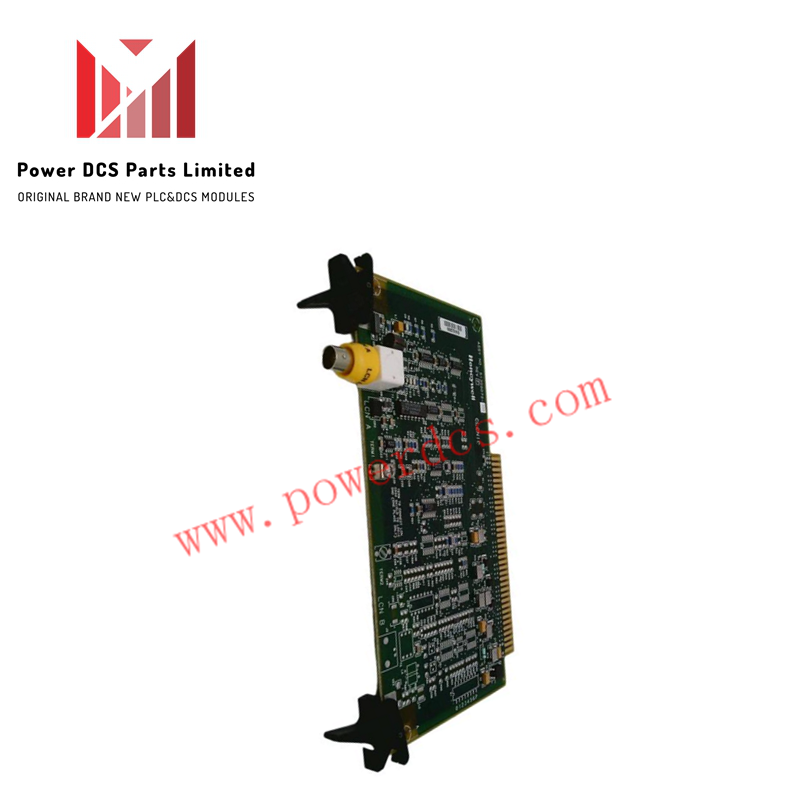

Honeywell 51305072-500 Control Board

The Honeywell 51305072-500 is a control circuit board designed for Honeywell TDC 3000 distributed control systems. Operating as a specialized KLCN I/O processor board, it manages peripheral interface signals and backplane communication functions within the controller chassis architecture.

Chassis Architecture and Weight

Designed as an add-on printed circuit board for TDC 3000 rack assemblies, the 51305072-500 connects directly to internal bus slots to process dedicated I/O operations. The assembly features a lightweight form factor weighing 0.29 lbs, allowing straightforward handling during component replacement.

Lifecycle Status

This part number has been discontinued by the manufacturer. Maintenance engineers and procurement specialists sourcing replacement units for existing TDC 3000 systems should verify exact revision compatibility prior to field installation.

Frequently Asked Questions

Q: What system platform uses the Honeywell 51305072-500 control board?

A: The 51305072-500 is used within Honeywell TDC 3000 distributed control systems for KLCN I/O processing.

Q: What is the current manufacturer lifecycle status of the 51305072-500 board?

A: The 51305072-500 control board has been discontinued by the original manufacturer.
