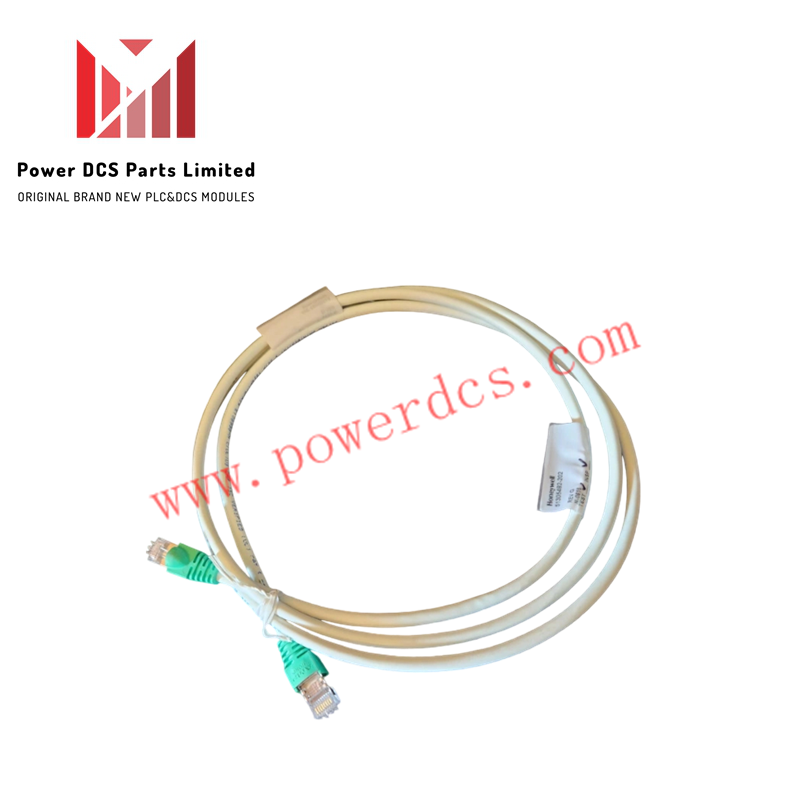

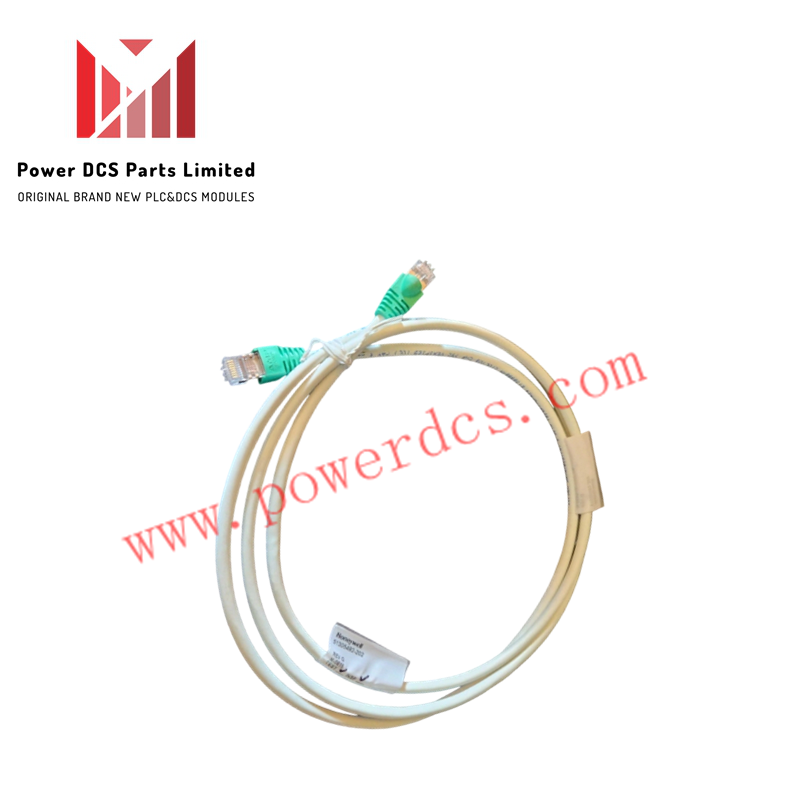

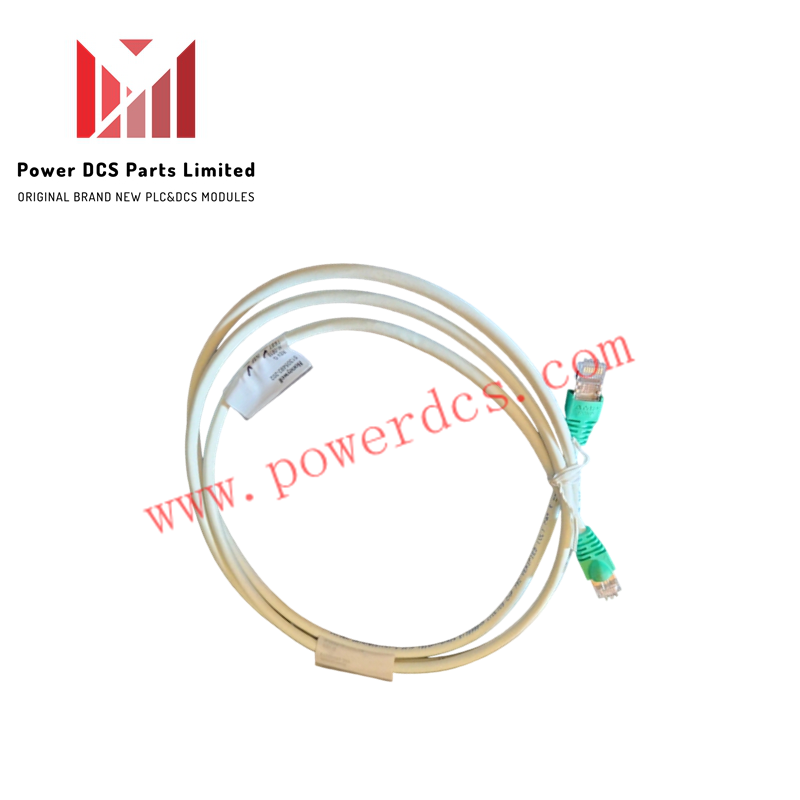

Honeywell 51305482-205 TPNB LAN B Cable

The 51305482-205 is a 5-meter TPNB LAN B CAT5e Ethernet cable assembly engineered by Honeywell for 100BASE-T industrial networks within Experion PKS and DCS platforms. Constructed with 24 AWG stranded copper conductors, it supports data transmission rates up to 100 Mbps with a length tolerance of ±0.5% to ensure predictable signal performance in automation control networks.

Transmission and Electrical Characteristics

The cable maintains tight electrical tolerances to minimize signal attenuation and propagation delay across high-speed industrial data links. Featuring a characteristic impedance of 100 Ω ±15%, it limits DC resistance to ≤9.38 Ω/100m and mutual capacitance to ≤5.6 nF/100m. Its controlled propagation delay (≤548 ns/100m) and delay skew (≤45 ns/100m) prevent timing jitter in latency-sensitive control communications.

Environmental and Physical Specifications

The assembly operates reliably across an ambient temperature range of -20°C to +60°C and withstands non-condensing relative humidity levels from 5% to 95%. Rated for up to 30 V AC, the cable is built with durable industrial insulation suitable for enclosure wireways and control cabinet routing.

Frequently Asked Questions

Q: What network protocols and speeds are supported by the 51305482-205 cable?

A: The cable supports 100BASE-T industrial Ethernet protocols with data transmission speeds up to 100 Mbps.

Q: What is the specified conductor gauge and construction of this cable assembly?

A: It utilizes 24 AWG stranded copper conductors configured in a CAT5e cable construction.

Q: What control system architectures are compatible with this TPNB LAN B cable?

A: The cable is designed for Honeywell Experion PKS and DCS distributed control network interfaces.
