Honeywell 51305980-284 100-Base-T Short Cable

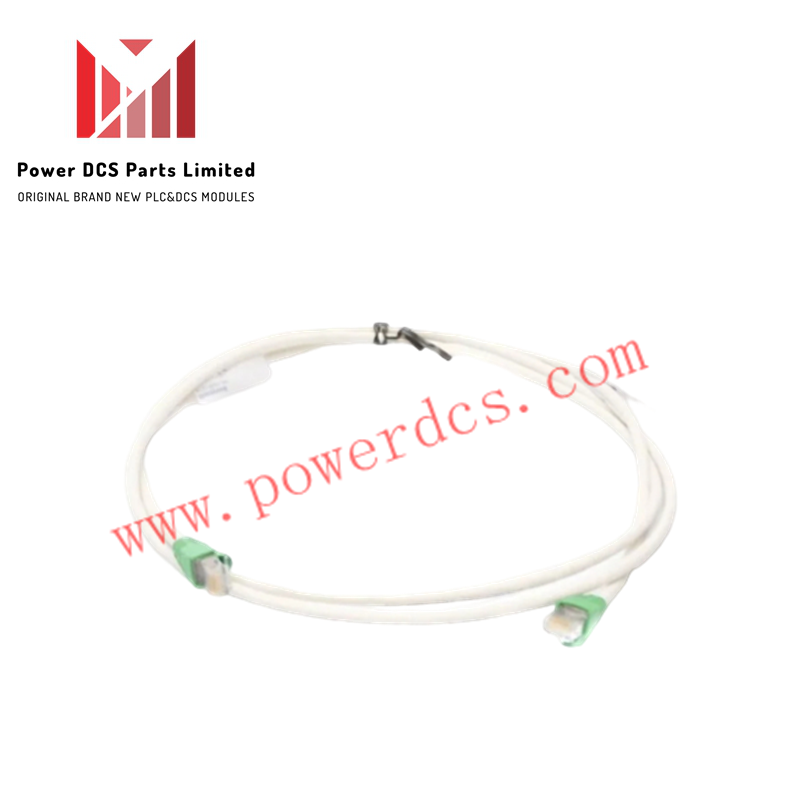

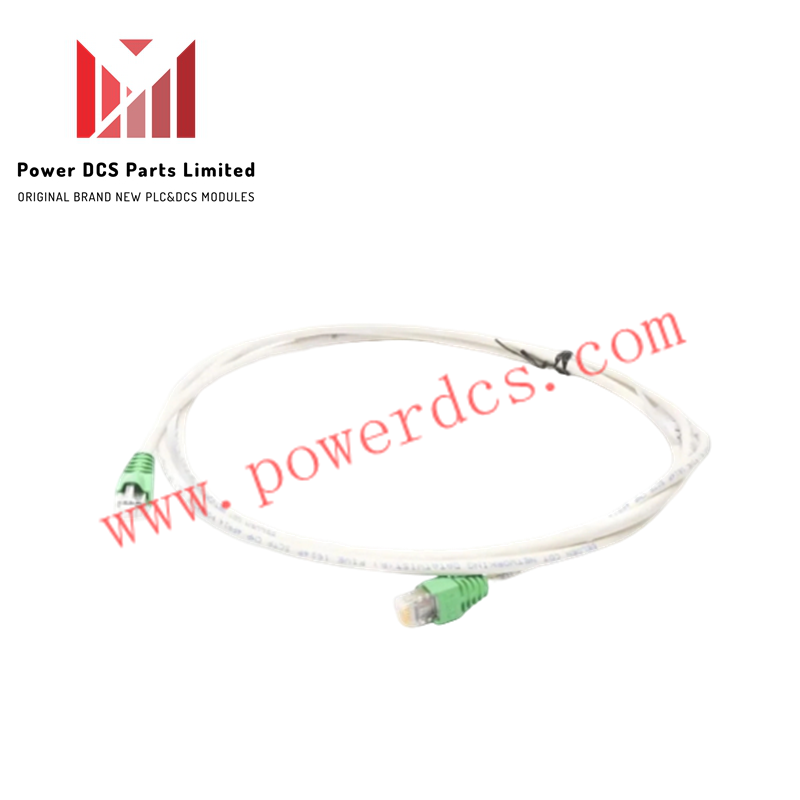

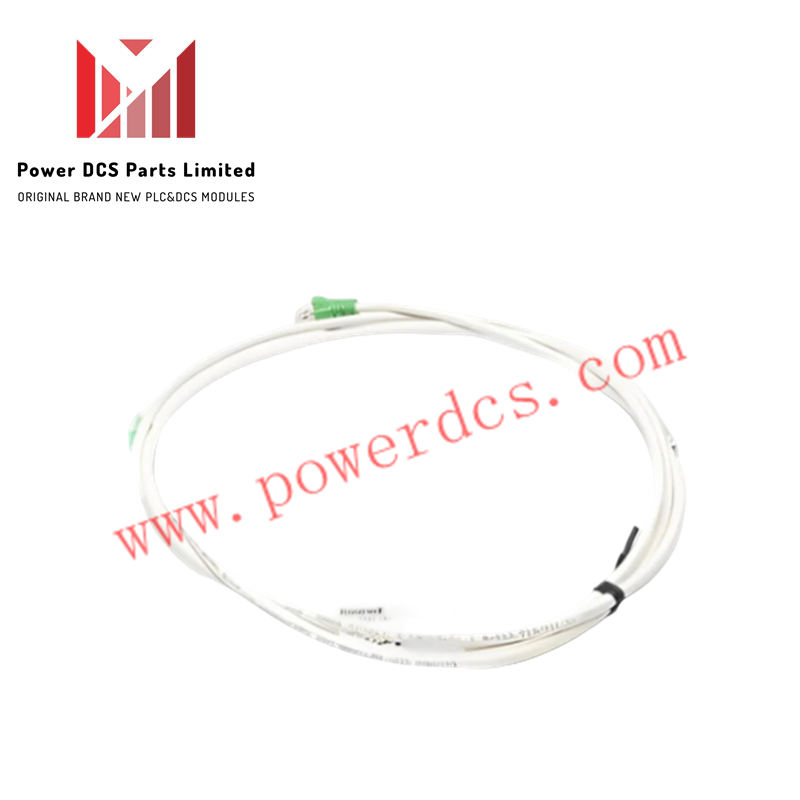

The Honeywell 51305980-284 is an 84-inch (2.13-meter) Category 5e (CAT5e) unshielded twisted-pair (UTP) Ethernet cable designed for Honeywell Measurex industrial control systems. Terminated with RJ45 male-to-male connectors featuring green boots for rapid field identification, it supports 100 Mbps data transfer speeds across short-range system cabinet interconnections.

Electrical and Environmental Specifications

Constructed with 24 AWG wiring, the cable features a characteristic impedance of 100 ohms (+/- 15%) and supports signal bandwidth up to 100 MHz. It is rated for operation across a temperature range of -20 deg C to 60 deg C, with a minimum bend radius requirement of 4 times the cable outer diameter to prevent conductor degradation during panel routing.

Frequently Asked Questions

Q: What connector type and boot color are used on the Honeywell 51305980-284 cable?

A: The cable utilizes RJ45 male-to-male connectors fitted with green boots for quick visual recognition inside wiring panels.

Q: What are the wire gauge and shielding specifications for this model?

A: The cable is built with 24 AWG conductors arranged in an Unshielded Twisted Pair (UTP) configuration.
