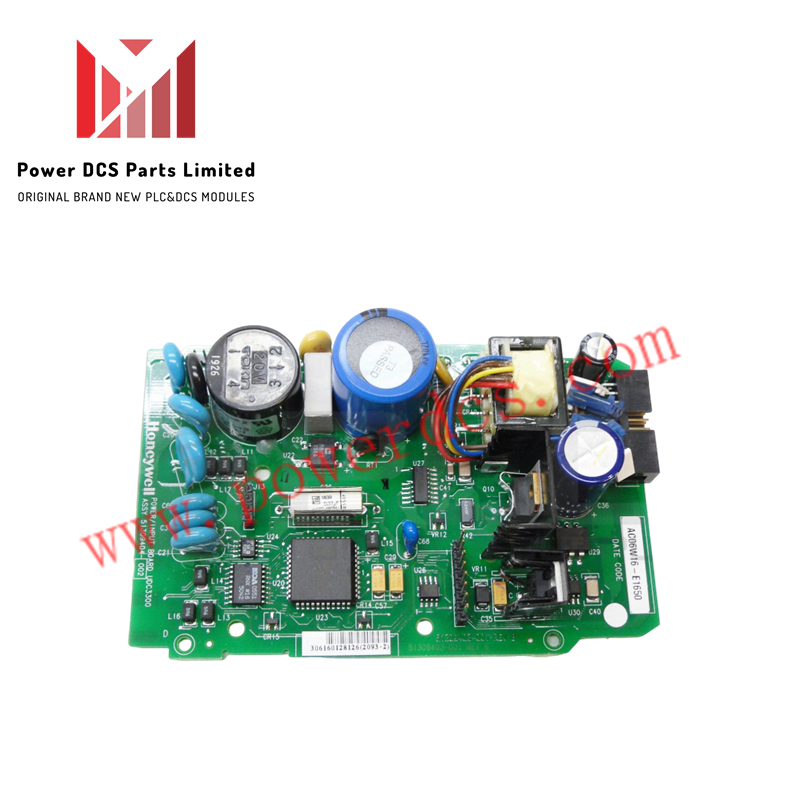

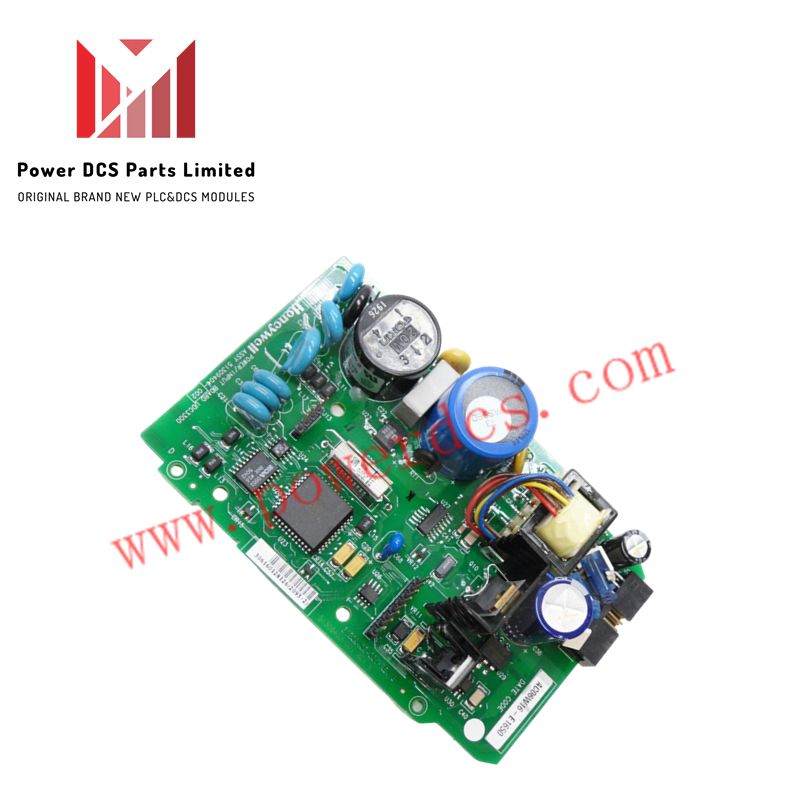

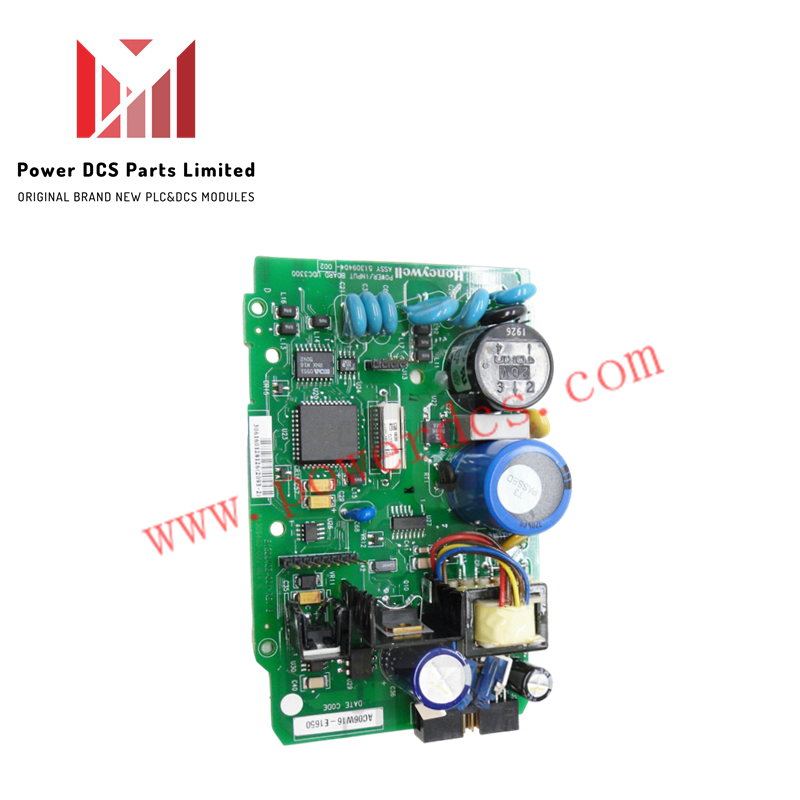

Honeywell 51309404-002 Power/Input Board

The 51309404-002 is an internal power and signal input printed circuit board manufactured by Honeywell for UDC3300 series digital controllers. It processes AC line power across an input range of 90 to 264 VAC and manages field input signal conditioning for process monitoring and closed-loop control.

Power Conditioning and Input Functionality

Designed as an add-on circuit board for the UDC3300 controller chassis, the assembly converts incoming AC line voltage into stabilized internal DC power rails. The board integrates primary power transformation components and input signal interface circuitry, protecting controller logic from supply voltage fluctuations across 90 to 264 VAC line networks.

Frequently Asked Questions

Q: What line voltage range does the Honeywell 51309404-002 power/input board support?

A: The board accepts a wide AC input voltage range from 90 to 264 VAC.

Q: Which controller series uses the 51309404-002 circuit assembly?

A: This board is engineered specifically for installation within Honeywell UDC3300 series digital controllers.
