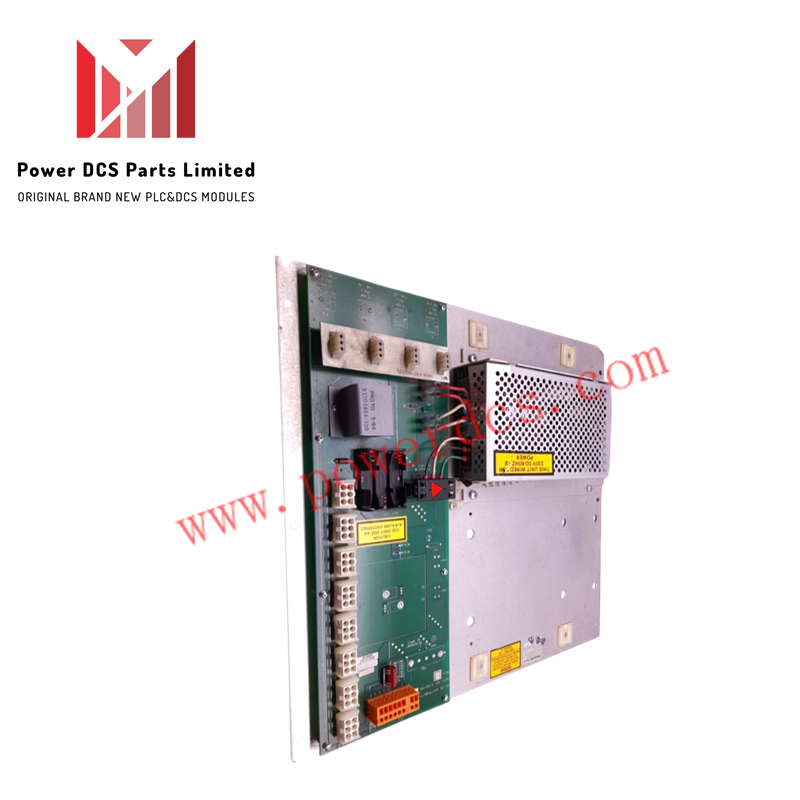

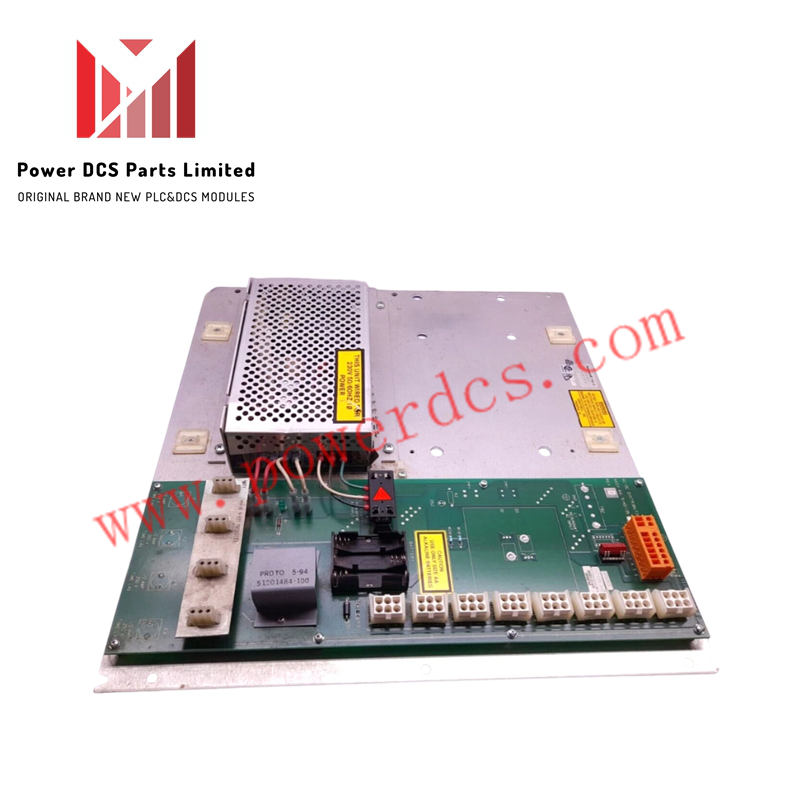

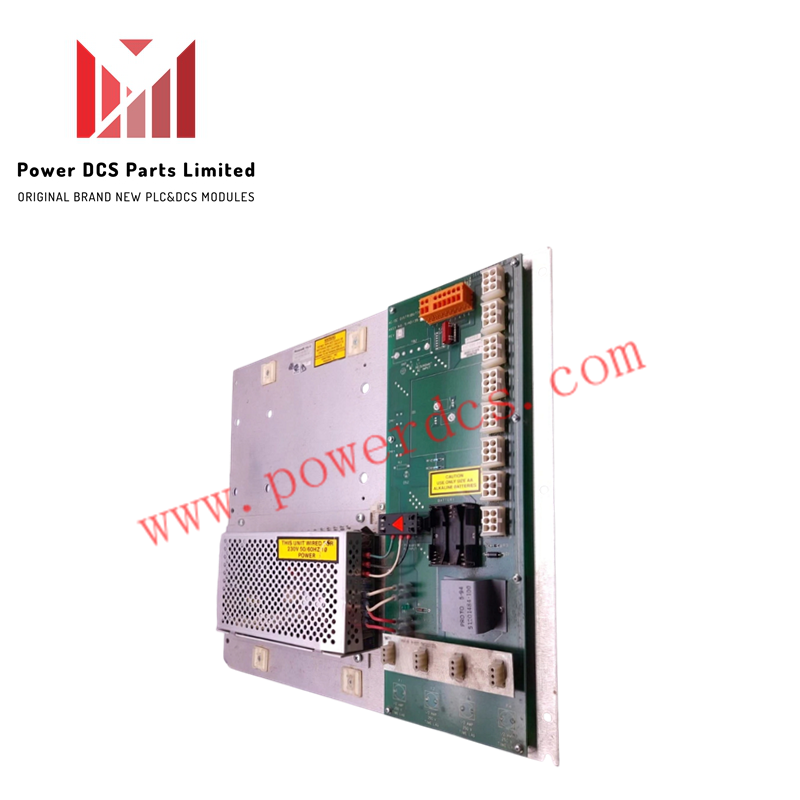

Honeywell 51401140-400 AC-Only Power System

The 51401140-400 is a dedicated AC power system engineered by Honeywell for AC power conditioning and secondary bus supply distribution within Honeywell DCS and automation platforms. Operating on a nominal 240 VAC supply, this module converts and conditions primary input power to deliver regulated DC logic power across distributed control sub-racks.

Power Isolation and Noise Suppression

The power system incorporates internal galvanic isolation barriers separating incoming 240 VAC power lines from sensitive system logic rails. Integrated transient voltage suppression clips high-voltage spikes, preventing common-mode noise propagation into analog loop interfaces and 4-20 mA HART communication lines. Internal electromagnetic shielding minimizes AC line hum interference on adjacent I/O modules installed within high-density control cabinets.

Field Installation Guidelines

1. Ensure the primary 240 VAC feed is de-energized and locked out prior to physical installation.
2. Mount the module securely onto the cabinet sub-rack slot, verifying that retaining clips engage the chassis frame.
3. Wire the incoming 240 VAC mains to designated screw terminals, applying torque to standard specifications (0.5 to 0.6 Nm).
4. Connect the earth ground terminal directly to the enclosure ground bus bar using a minimum 12 AWG copper conductor.
5. Apply input voltage and verify output LED status indicators prior to placing connected DCS I/O racks into service.

Frequently Asked Questions

Q: Can this power supply module be hot-swapped while the system is energized?

A: No. Isolating the external 240 VAC feed is required prior to physical extraction to prevent arcing across backplane terminal pins and maintain cabinet electrical safety.

Q: How does the unit handle line fluctuations on the 240 VAC input?

A: The input circuit features internal overvoltage clamping designed to handle industrial line voltage fluctuations without disrupting secondary outputs.

Q: What mounting clearance is recommended for thermal management?

A: A minimum vertical clearance of 25 mm above and below the module is required to ensure adequate passive convection cooling inside sealed enclosures.
