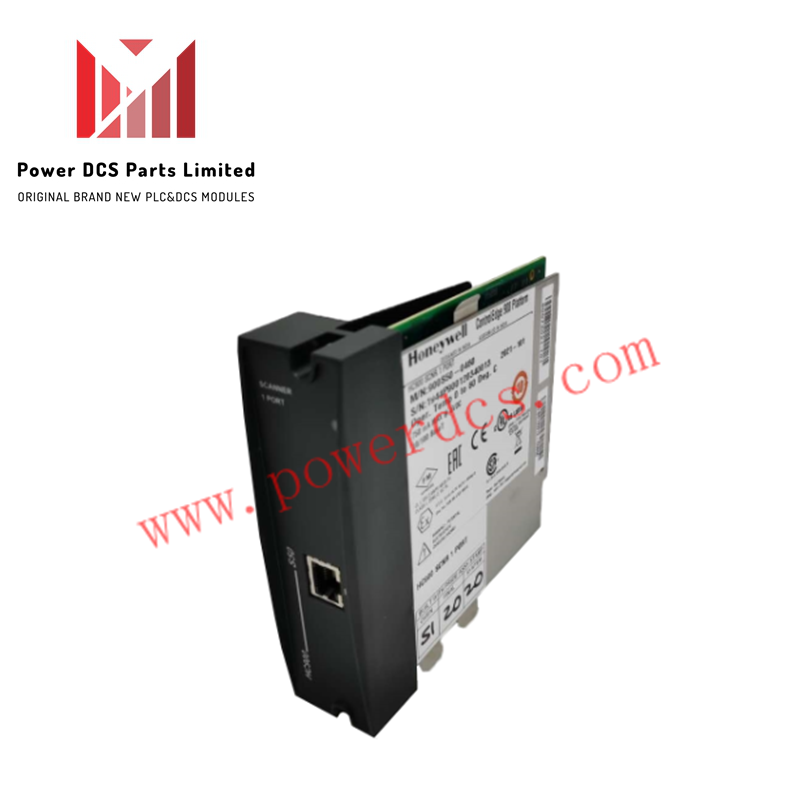

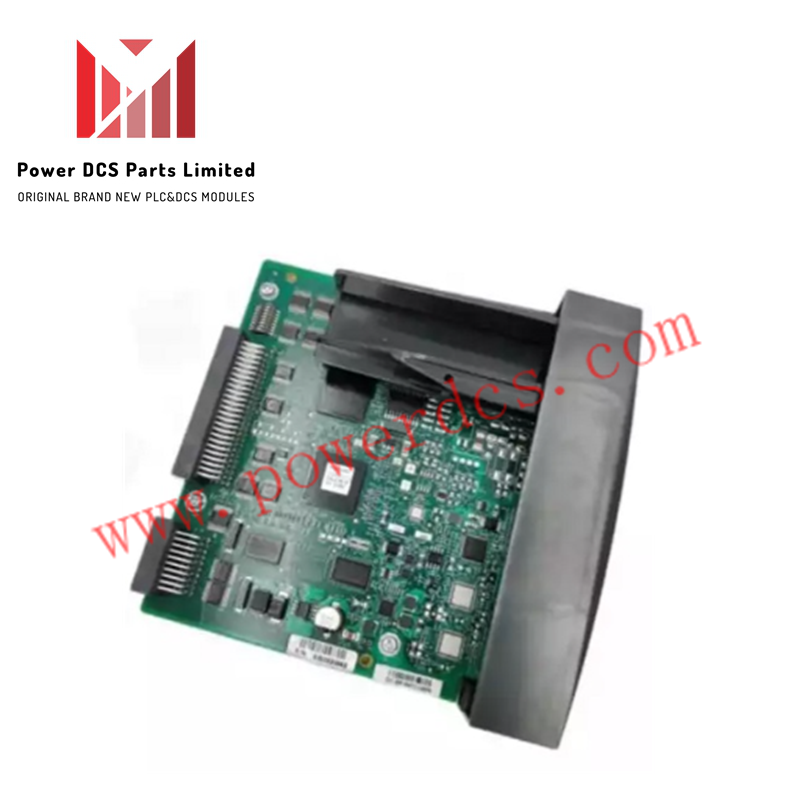

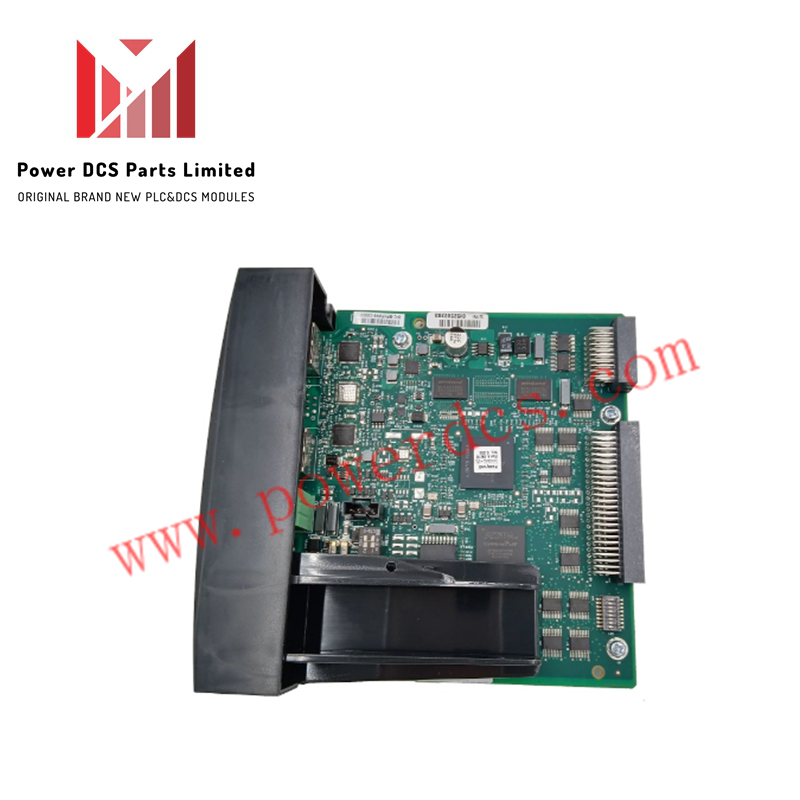

Honeywell 900C50-0460-00 CPU ControlEdge 900
Specifications
Manufacturer: Honeywell
Product No.: 900C50-0460-00
Condition: 10 Items in Stock
Product Type: Controller CPU Modules
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
Product details
Description
Configured for central processing and loop control execution in Honeywell ControlEdge 900 architectures, the Honeywell 900C50-0460-00, also cataloged as the 900C50-0460-00 ControlEdge 900 CPU module, provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 900C50-0460-00 |
| Brand | Honeywell |
| Origin | Standard Industrial Manufacturing |
| Weight | 0.36 kg (Shipping weight: 2 kg) |
| Dimensions | 137 mm H x 38.1 mm W (5.4 in H x 1.5 in W) |
| Operating Temp | Standard industrial cabinet range |
| Power Consumption | Low-voltage rack backplane powered |
| Core Performance | Central processing unit for ControlEdge 900 controllers |
Channel Isolation And Loop Protocol Integrity
The processor module maintains strict galvanic and optical isolation barriers between backplane logic buses and field-facing communication interfaces to suppress transient voltage spikes. It supports open Ethernet connectivity, Modbus TCP, and 4-20 mA HART loop protocol integration across connected I/O expansion racks. Cold junction compensation (CJC) references and high-speed internal data buses ensure stable signal processing and deterministic control execution without mutual interference.
Frequently Asked Questions
Q: Can the 900C50-0460-00 CPU module be hot-swapped while the ControlEdge 900 rack is powered?
A: No. System power must be isolated and locked out before inserting or extracting the CPU module from the chassis backplane to prevent bus communication faults or flash memory corruption.
Q: How is controller configuration and firmware managed on this CPU?
A: Configuration data and firmware updates are loaded via the designated engineering station communication port, utilizing nonvolatile memory storage to retain user programs during power loss.
Field Installation Guidelines
- Ensure primary cabinet power and rack power supplies are locked out and tagged out prior to installation or handling.
- Align the module card edges carefully with the rack backplane guides and press firmly until the mechanical locking latches engage fully.
- Terminate communication cables and power leads securely, ensuring shield drain wires are bonded directly to the cabinet ground bar.
- Verify controller status indicators and network communication links upon power-up before downloading configuration software and initiating process control.
