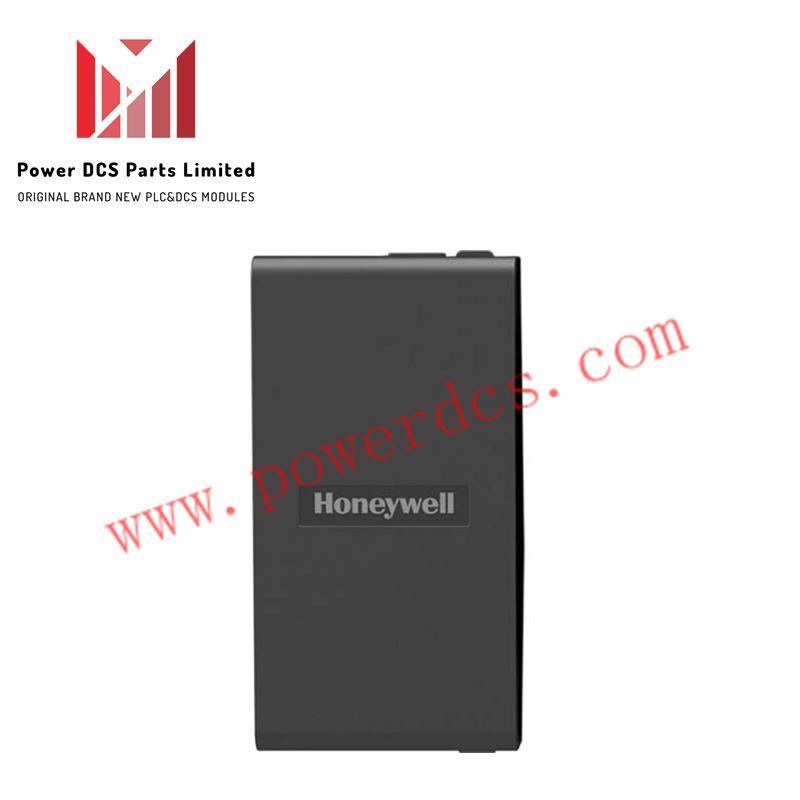

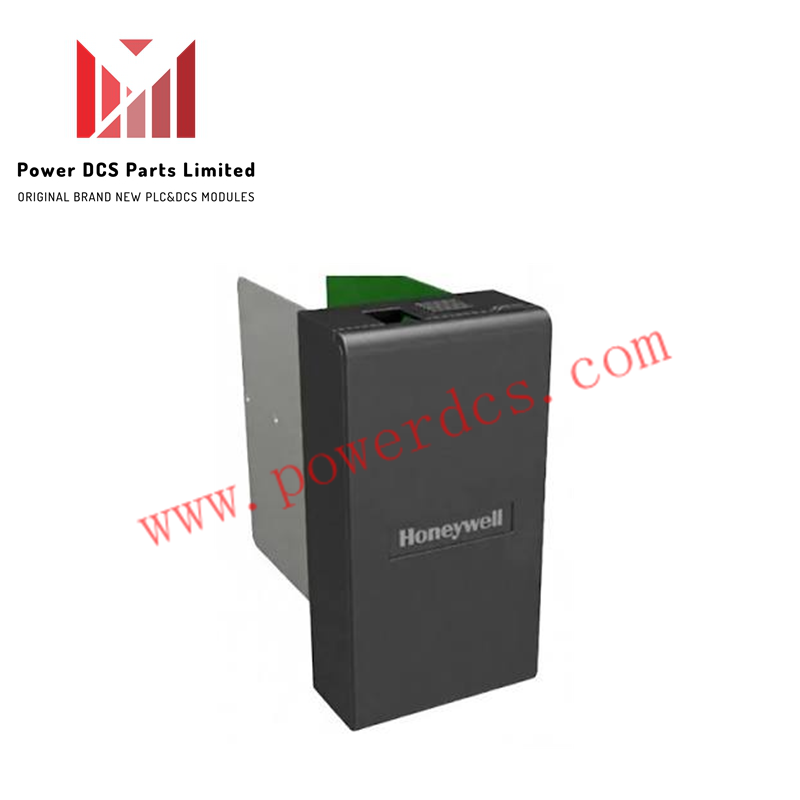

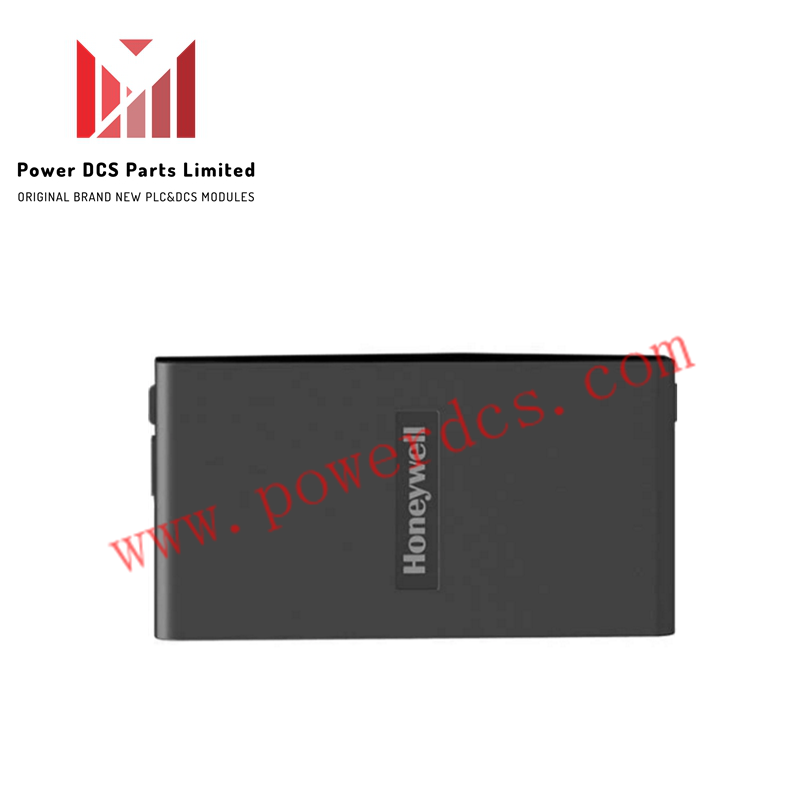

Honeywell 900P01-0501 Power Supply

The Honeywell 900P01-0501, also cataloged as the 900P01-0501 120/240 VAC 60W Power Supply, operates as a dedicated hardware component for AC-to-DC power conversion and voltage rail distribution within ControlEdge controller racks.

Hardware Specifications

Channel-To-Channel Isolation And Loop Protocol Integrity

The power supply module incorporates galvanic isolation barriers between primary AC line inputs and secondary low-voltage DC rails to prevent common-mode noise and high-voltage transients from entering the backplane bus. It supports downstream 4-20 mA HART loop protocol power distribution requirements across connected I/O cards without introducing ground loops. Internal voltage regulation circuitry and cold junction compensation (CJC) reference stabilization protect system processing nodes against line voltage fluctuations and thermal drift.

Frequently Asked Questions

Q: Can multiple 900P01-0501 power supplies be operated in parallel for redundant load sharing?

A: System architecture guidelines must be verified for the specific controller chassis, as direct paralleling requires dedicated isolation diodes or redundant power configuration modules to prevent reverse current loading.

Q: What precautions should be taken prior to extracting the power supply module?

A: Main AC line power feeding the cabinet distribution panel must be completely isolated, locked out, and tagged out before disconnecting wiring harnesses or unseating the unit.

Field Installation Guidelines

• Verify that primary 120 / 240 VAC input power is isolated, locked out, and tagged out prior to handling or wiring the power supply module.
• Mount the unit securely in the designated power slot of the ControlEdge rack chassis, ensuring firm mechanical engagement with backplane power pins.
• Check input line terminals and output DC connection points for secure mechanical clamping and proper insulation before energizing.
• Measure output DC rail voltages using a calibrated digital multimeter to verify correct regulation prior to connecting downstream controller modules.
