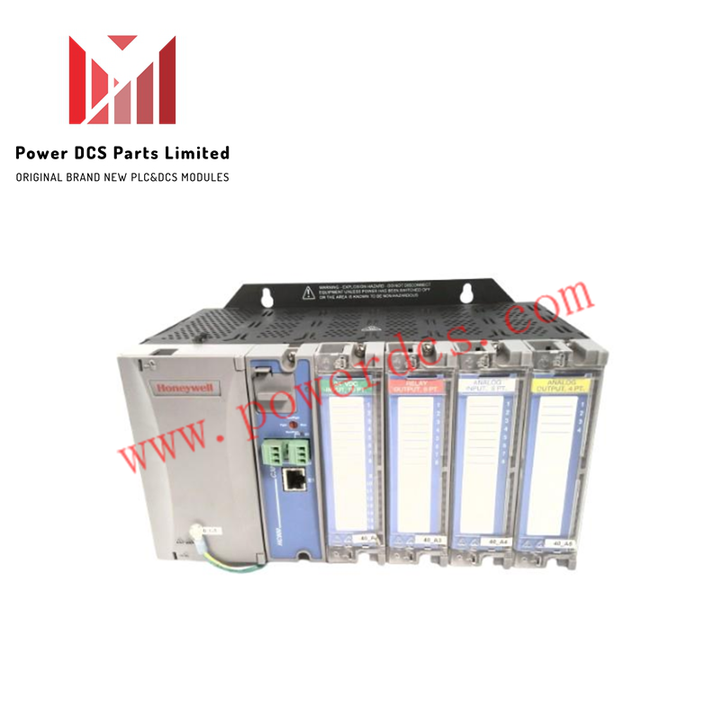

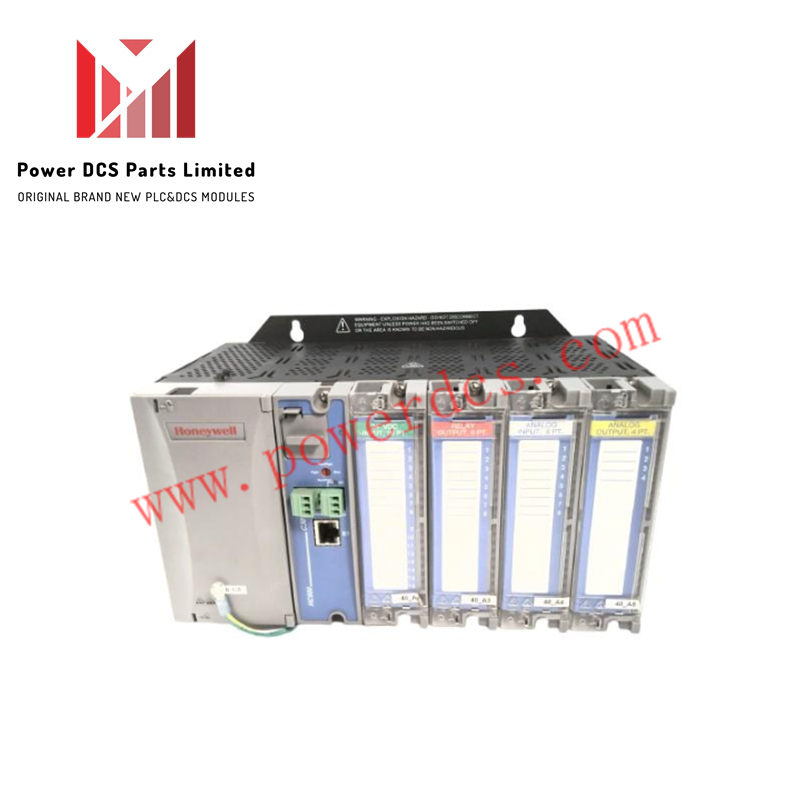

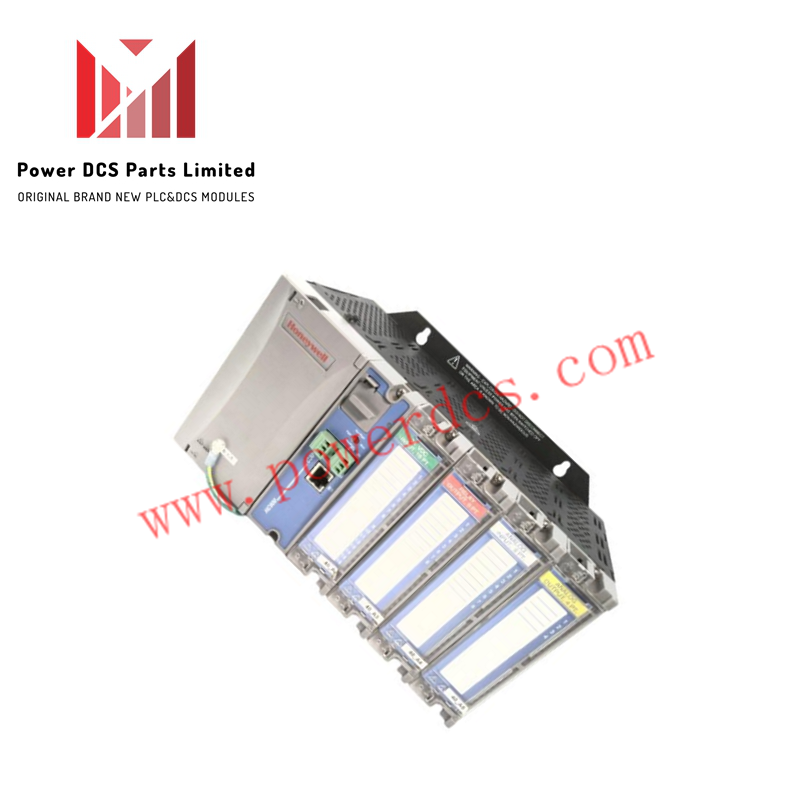

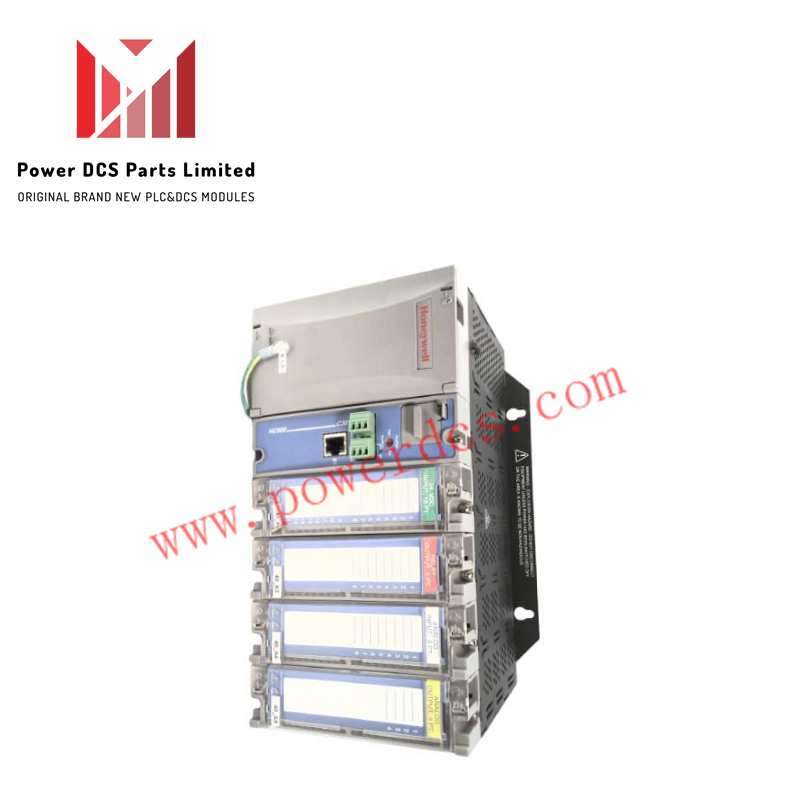

Honeywell 900R04-0200 Backplane Assembly

Configured for 4-slot modular hardware mounting and backplane bus signal distribution within ControlEdge HC900 hybrid controller architectures, the Honeywell 900R04-0200 (900R04-0200 Backplane Assembly) provides direct physical/electrical execution.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The backplane printed circuit assembly routes high-speed communication buses and power distribution rails across all 4 module slots while maintaining rigid physical separation between adjacent signal paths. Integrated ground planes and internal layout shielding suppress common-mode transient noise and cross-talk between high-density I/O slots. This electrical decoupling preserves signal integrity for distributed analog cards managing 4-20 mA HART loop protocol communications alongside high-voltage digital modules.

Frequently Asked Questions

Q: Does the 900R04-0200 rack assembly support online hot-swapping of modules?

A: Yes, individual I/O modules support hot-swapping within active rack positions provided that system backplane power is stable and standard electrostatic precautions are followed.

Q: What is the designated direct replacement part for this 4-slot rack assembly?

A: The official manufacturer-designated replacement model for the 900R04-0200 chassis is the 900R04-0300.

Field Installation Guidelines

1. Ensure that main cabinet power feeds supplying the HC900 rack are locked out and de-energized prior to mechanical mounting.
2. Secure the 4-slot chassis securely to the control cabinet backplate using mounting bolts through designated frame holes, ensuring clean metal-to-metal contact for earth bonding.
3. Verify that backplane connector pins inside each of the 4 slots are straight and free of foreign debris before inserting any I/O cards or CPU modules.
4. Route power supply and network cables through designated wire raceways, maintaining physical separation from high-voltage field wiring.
