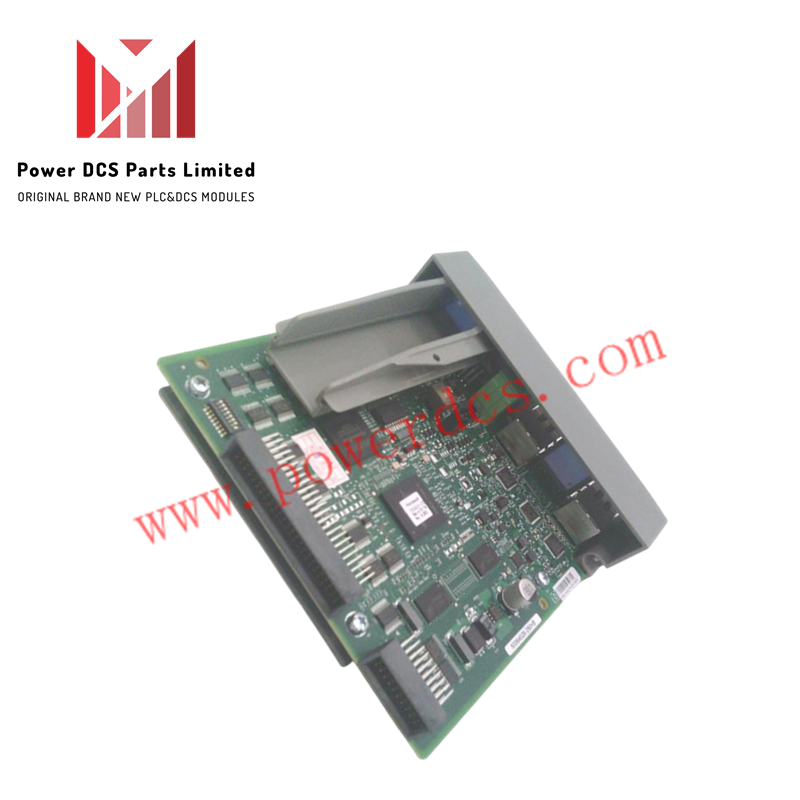

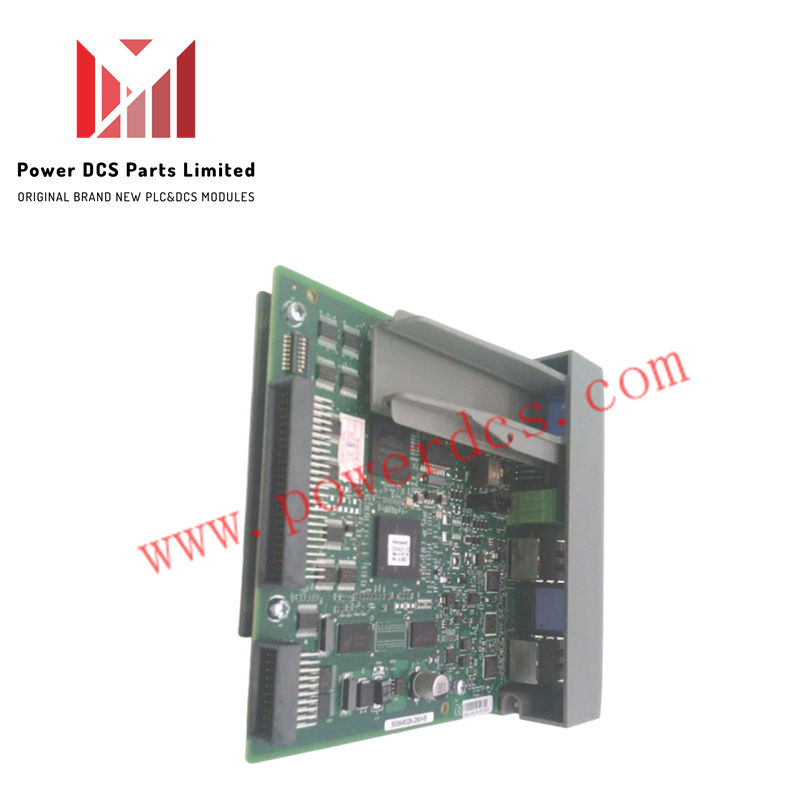

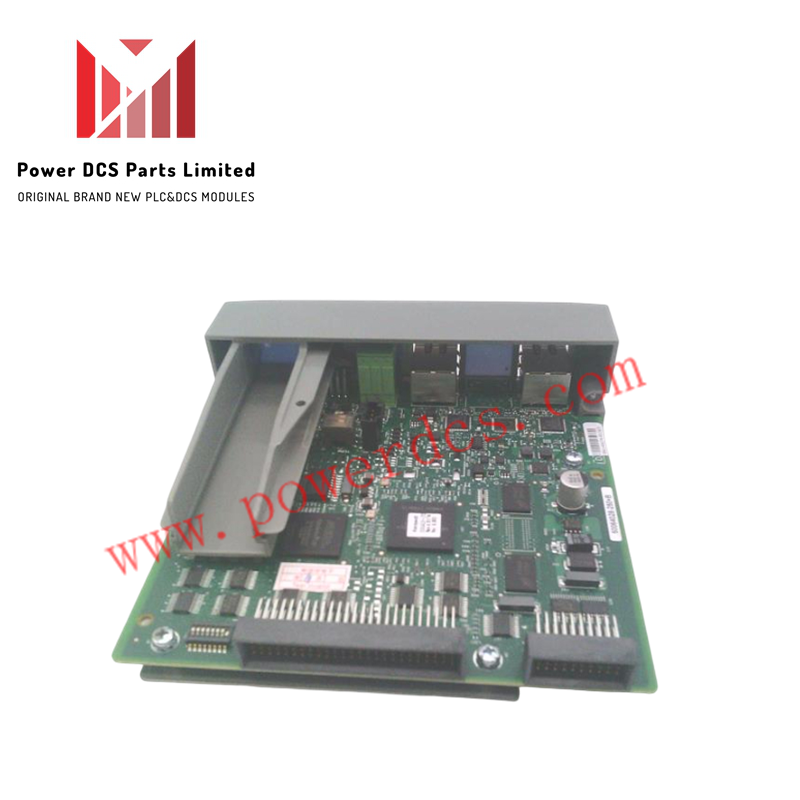

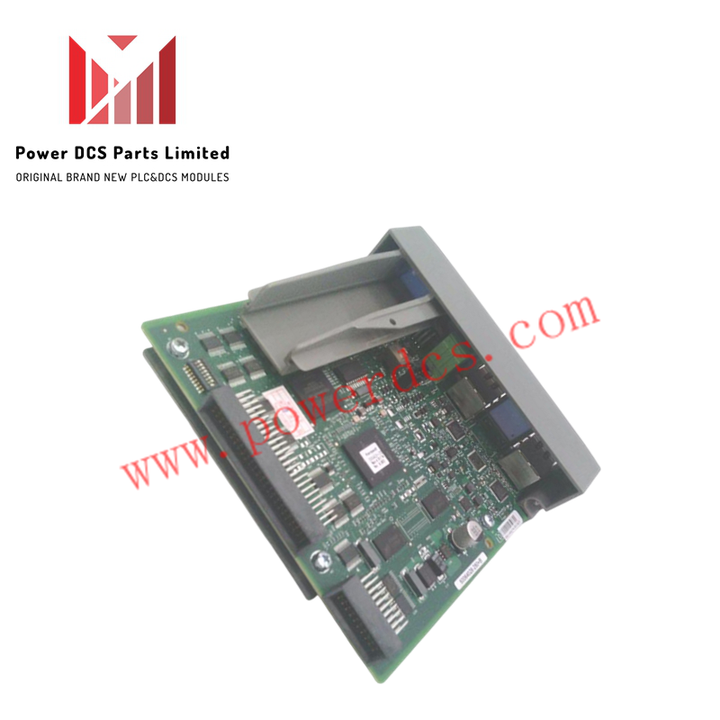

Honeywell 900S75-0360-00 I/O Scanner Module

The Honeywell 900S75-0360-00, also cataloged as the 900S75-0360-00 I/O Scanner Module, operates as a dedicated hardware component for high-speed data exchange and communication execution within ControlEdge HC900 controller architectures.

Hardware Specifications

Channel-To-Channel Isolation And Loop Protocol Integrity

The I/O scanner module integrates galvanic isolation across its dual EIA-485 communication interfaces to protect controller backplane logic from ground potential shifts and serial line transients. While managing deterministic data exchange between remote I/O racks and the central ControlEdge HC900 controller, the module maintains strict separation from analog 4-20 mA HART loop protocol lines. Cold junction compensation (CJC) references and internal bus filtering ensure high-speed serial polling operates without inducing electromagnetic interference in neighboring measurement loops.

Frequently Asked Questions

Q: Can the 900S75-0360-00 scanner module be hot-swapped while the rack power is active?

A: No. System power and rack supply feeds must be isolated and locked out prior to inserting or extracting the module from the chassis backplane to prevent bus communication faults or terminal damage.

Q: What are the maximum baud rate and physical layer specifications for the serial communication ports?

A: The module features dual EIA-485 ports supporting communication speeds up to 230.4 kbps over shielded twisted-pair cabling with proper line termination resistors.

Field Installation Guidelines

• Ensure primary cabinet power and 24 VDC rack power supplies are completely isolated, locked out, and tagged out prior to installation.
• Align the module card edges carefully with the rack backplane guides and press firmly until the mechanical locking latches engage fully.
• Terminate EIA-485 serial communication cables securely to the designated terminals, ensuring shield drain wires are bonded directly to the cabinet ground bar.
• Verify communication link status and diagnostic LED activity upon power-up before placing the remote I/O rack into active service.
