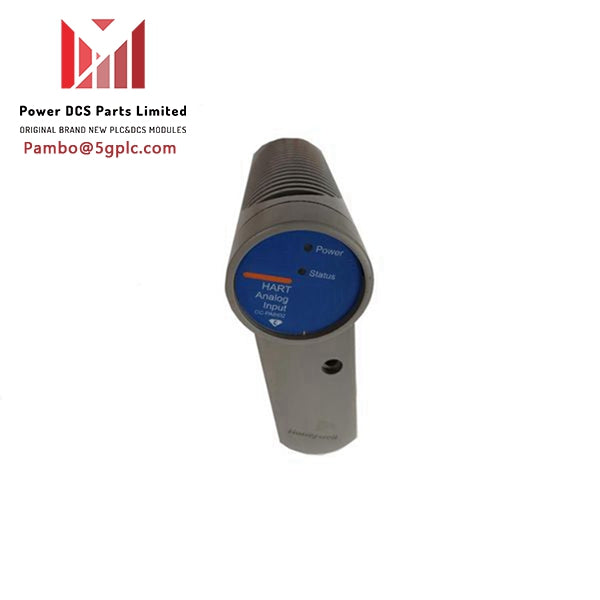

Honeywell CC-PAIH02 HART-Compatible Analog Input Module

Overview

The Honeywell CC-PAIH02 is a 16-channel high-level analog input module with HART communication. It is part of Honeywell's Experion Series-C I/O system. The CC-PAIH02 is designed to accept current inputs from transmitters and sensing devices. It provides non-incendive field power, suitable for configuring and monitoring HART devices.

Features

• 16 high-level current input channels
• HART communication
• Non-incendive field power
• Extensive self-diagnostics
• Optional redundancy
• Fast loop scan

Technical Specifications

• Input type: Current (2-wire or self-powered transmitters)
• Input range: 4-20 mA only (through 200 Ω)
• A/D converter resolution: 16 bits
• Common mode rejection ratio: 70 dB
• Common mode voltage: -6 to +5 V peak
• Normal mode rejection ratio: 19 dB
• Normal mode filter response: 50 Hz to 60 Hz, down 3 dB
• Accuracy: ± 0.075% of full-scale (23.5°± 2°C)
• Operating temperature range: 0 to 60°C
• Power requirements: 24 VDC
