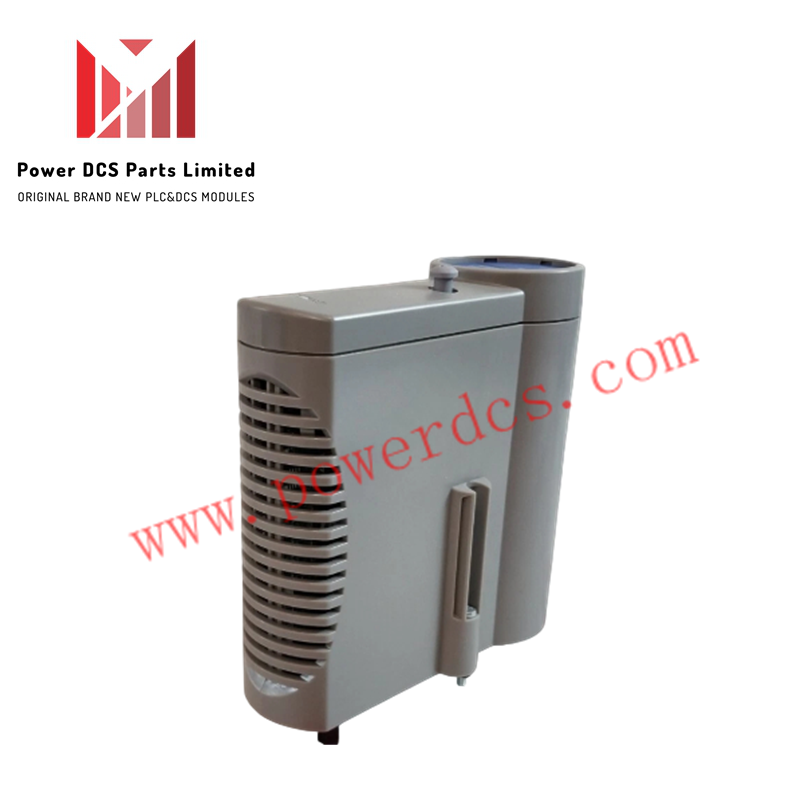

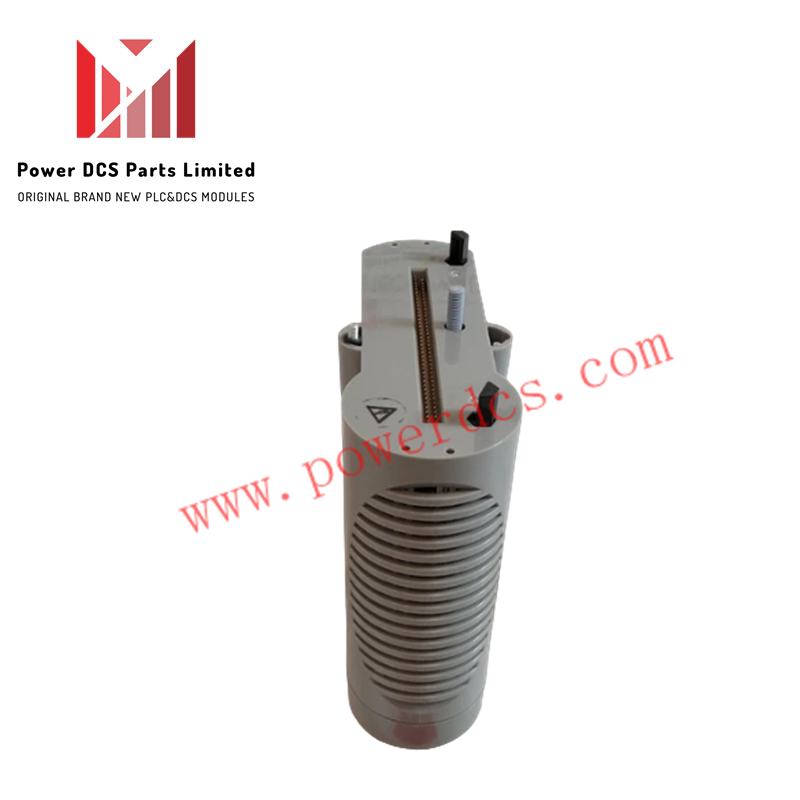

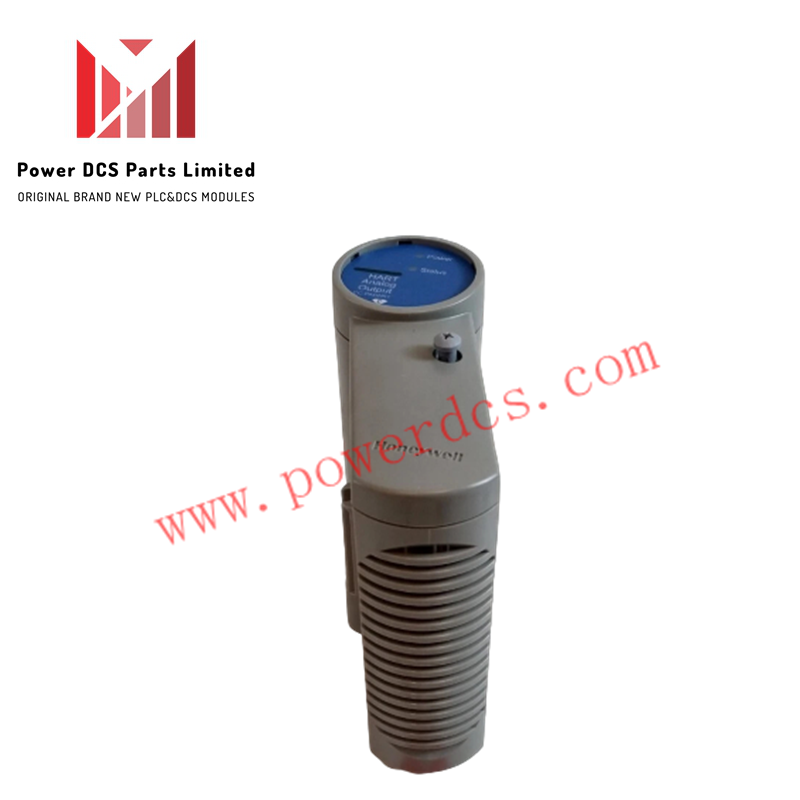

Honeywell CC-PDIS01 Experion Series C Digital Input Module

The Honeywell CC-PDIS01 51405042-175, also cataloged as the CC-PDIS01 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition within Honeywell DCS platforms. It processes binary status signals from field switches and relays, routing filtered digital input data directly to the controller execution environment.

Hardware Specifications

Channel-to-Channel Isolation & Electrical Noise Suppression

The Honeywell CC-PDIS01 incorporates integrated channel filtering circuits to attenuate high-frequency electrical noise and contact bounce, delivering clean binary state transitions across all input channels in harsh cabinet environments. Galvanic channel-to-channel isolation decouples field-side switch circuits from internal backplane processing logic. This isolation suppresses common-mode voltage surges and prevents ground loops between distributed field drops and backplane bus electronics.

Frequently Asked Questions

Q: Can the CC-PDIS01 digital input module be replaced online without de-energizing the system?

A: Yes, the CC-PDIS01 supports hot-swapping on an energized Series C IOTA board, allowing online module replacement without disrupting adjacent channel operation or system backplane communications.

Q: How does the CC-PDIS01 protect backplane processing logic from field line transients?

A: Internal optoelectronic isolation barriers decouple the physical input wiring from internal processing logic, blocking high-voltage surges and field ground potential offsets.

Q: What power source energizes the internal logic circuits of the CC-PDIS01?

A: The module draws its internal operational power directly from the 24 VDC redundant backplane distribution lines on the Series C carrier assembly.

Field Installation Guidelines

1. Inspect the backplane multi-pin connectors and guide rails on the Series C IOTA carrier slot to verify that no debris or mechanical damage exists prior to installation.
2. Align the CC-PDIS01 module edge with the vertical guide tracks of the assigned slot on the I/O Termination Assembly.
3. Apply firm, even pressure to push the module into the carrier until the mechanical locking latches fully engage with the backplane header.
4. Route field input switch wiring through designated cabinet wire channels, keeping low-voltage digital signal cables separate from high-voltage AC power conductors.
5. Terminate field wiring and ensure cable shield drain wires connect to the cabinet earth ground bus at a single point to prevent circulating noise currents.
