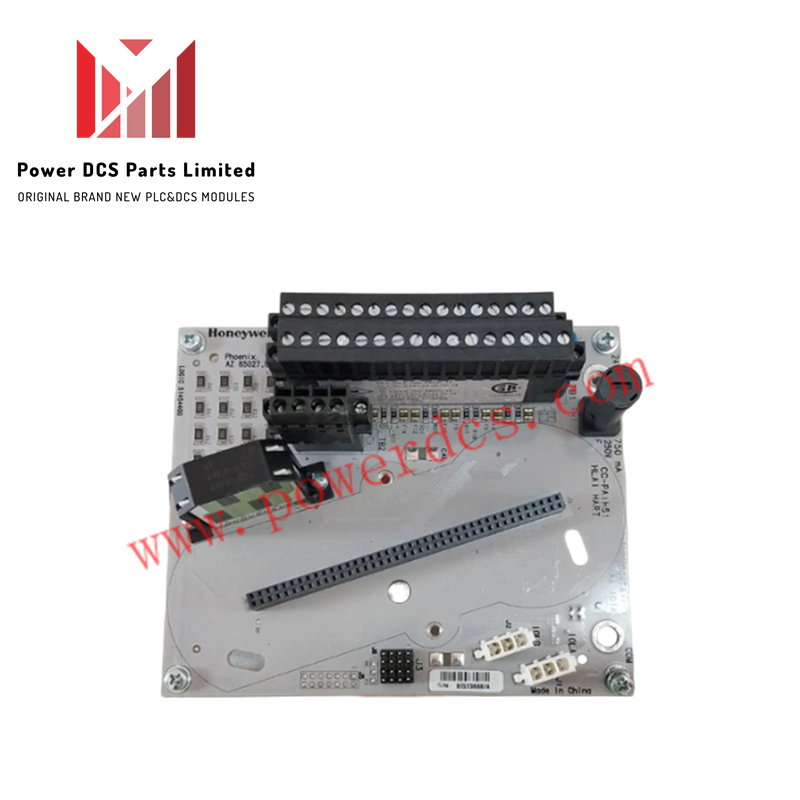

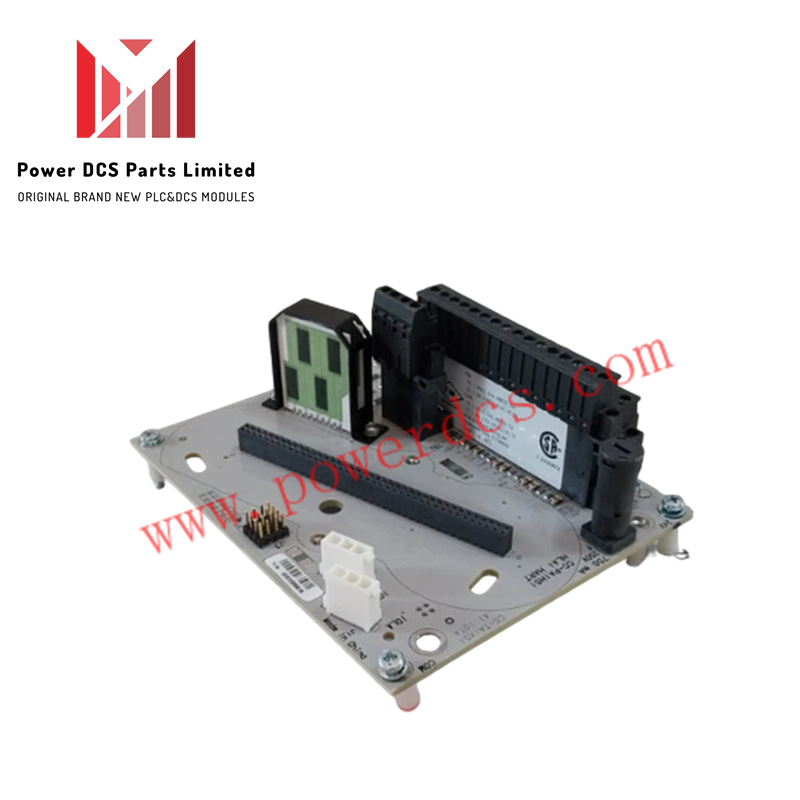

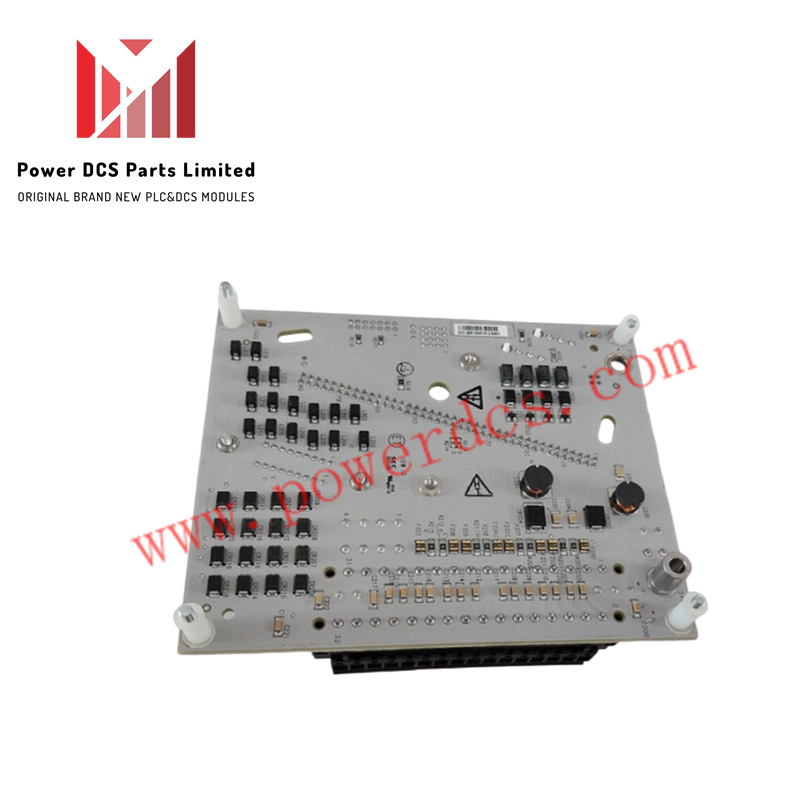

Honeywell CC-TAIX51 51307075‑175 Experion C300 Analog Input IOTA Module

Configured for high-precision field sensor signal acquisition in Experion PKS and C300 controller systems, the Honeywell CC-TAIX51 (CC-TAIX51 Analog Input IOTA Module) provides direct physical/electrical execution. It handles 16 independent analog input channels to interface process field instruments, transmitter loops, and primary sensing elements directly to the control backplane.

Hardware Specifications

Channel-to-Channel Isolation and Differential Processing

The Honeywell CC-TAIX51 features channel-to-channel isolation architecture designed to attenuate common-mode voltage fluctuations, ground loop currents, and high-frequency industrial noise across field wiring loops. Each of the 16 independent analog input channels contains dedicated filtering circuitry to process signals from two-wire and four-wire field transmitters. Channel multiplexing and precision analog-to-digital converter (ADC) stages continuously condition current and voltage inputs, providing isolated data streams directly to the C300 execution environment without signal degradation.

Frequently Asked Questions

Q: How many field input channels are supported on a single CC-TAIX51 assembly?

A: The CC-TAIX51 supports 16 independent analog input channels for connecting field transmitters and sensors.

Q: Can the CC-TAIX51 IOTA card be replaced or hot-swapped during live system operation?

A: Yes, provided system redundancy and safety guidelines are maintained, the active electronic module seated on the CC-TAIX51 IOTA can be hot-swapped without disturbing field wiring terminations.

Q: How does the CC-TAIX51 handle field ground loops across differential measurement loops?

A: Integrated galvanic isolation and channel-to-channel isolation barriers eliminate ground potential differences between field sensor loops and internal processing logic.

Field Installation Guidelines

1. Mount the CC-TAIX51 IOTA assembly onto the enclosure DIN rail, ensuring the grounding clips firmly engage the metallic mounting surface for electrical continuity.
2. Route 16-channel analog input field wiring through designated wire ducts, maintaining separation from high-voltage AC power lines to minimize inductive interference.
3. Terminate signal cables at the IOTA screw terminal blocks using appropriate wire ferrules, adhering strictly to polarity markings for each loop.
4. Connect overall cable shields to the dedicated enclosure ground bar at one end only to prevent circulating ground loop currents.
5. Align the corresponding Series C Analog Input card with the CC-TAIX51 header connectors and press firmly until the mechanical locking mechanisms seat fully.
