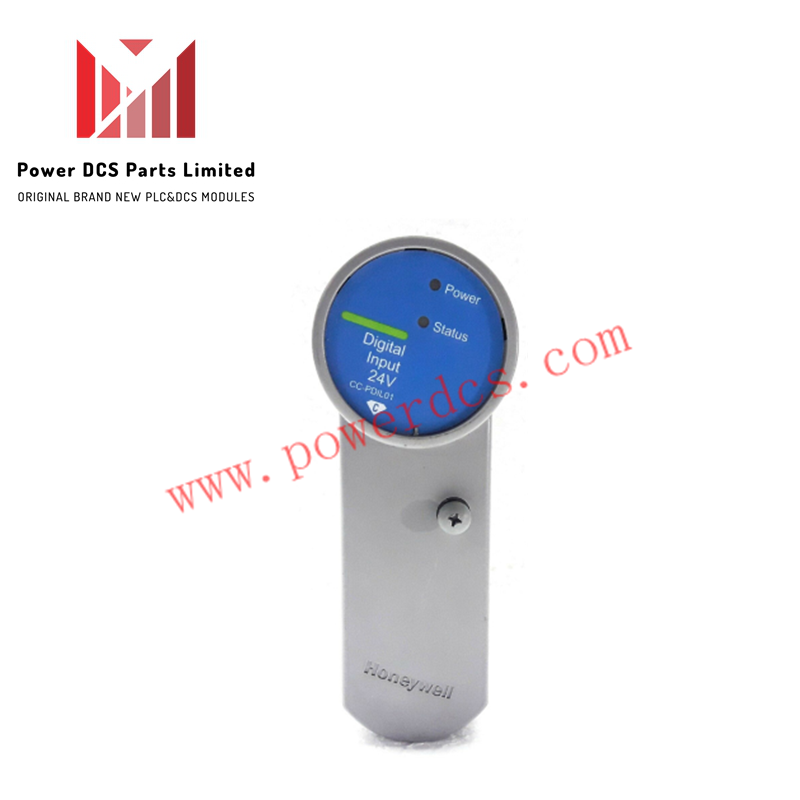

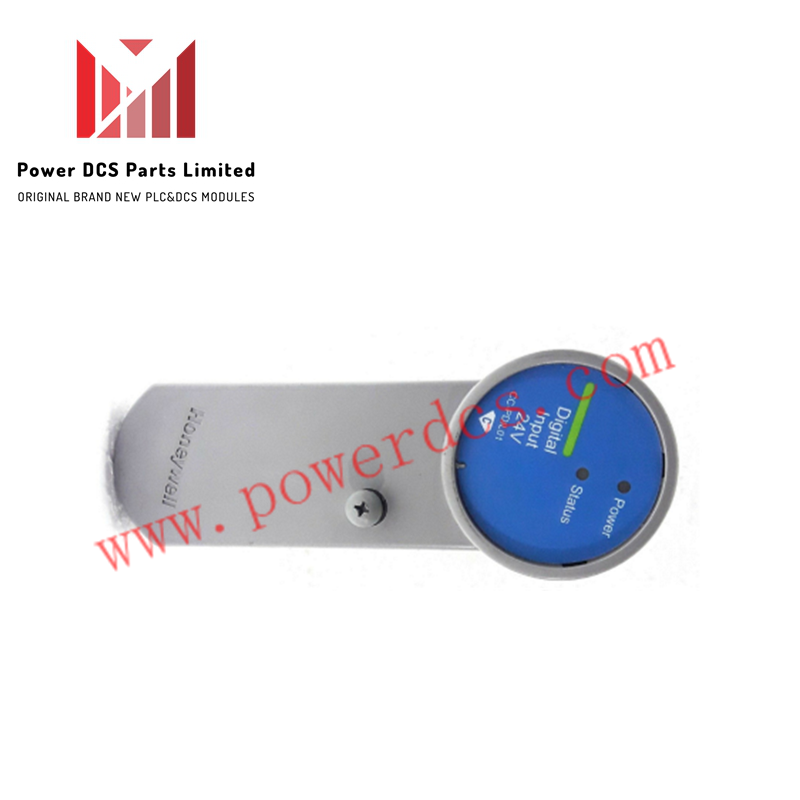

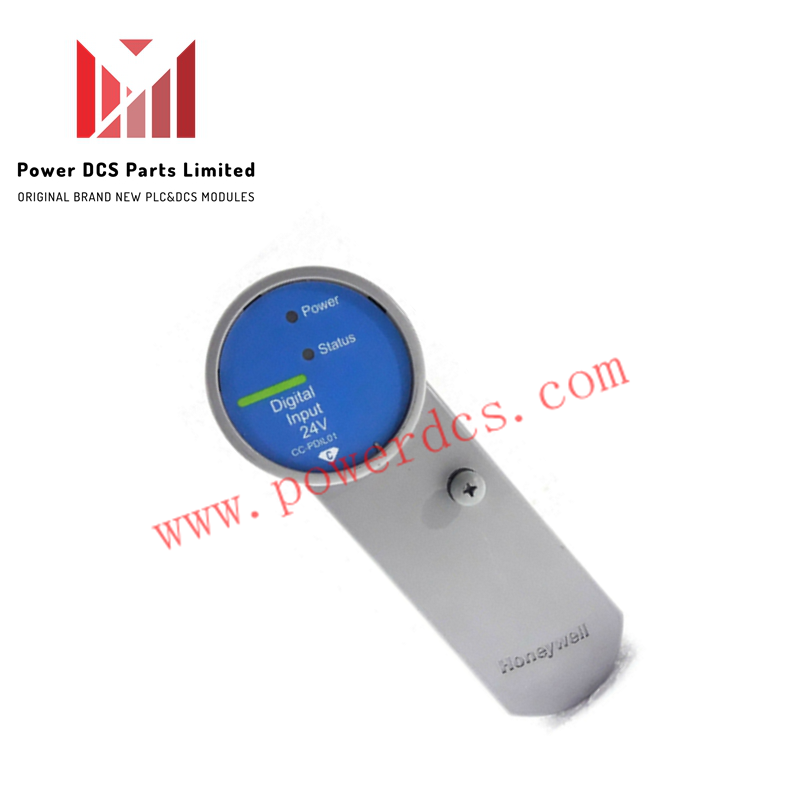

HONEYWELL DC-PDIL51 Digital Input 24V Module 51454818-175

The DC-PDIL51 (part number 51454818-175, associated with the DC-TDIL51 IOTA) is a 24 VDC digital input module manufactured by Honeywell for Experion PKS distributed control systems. Operating across a 12 to 24 VDC input voltage range, it processes discrete ON/OFF state signals from field devices such as limit switches, pushbuttons, and proximity sensors. Housed in a compact IP67-rated enclosure measuring 90 × 90 × 60 mm, the unit supports both DIN rail and panel mounting inside industrial enclosures.

Signal Compatibility and Industrial Enclosure Design

The module captures discrete field logic states and transmits real-time status data across control networks. Engineered for extreme operating conditions between -40 deg C and +85 deg C, its rugged IP67 enclosure provides high resistance against dust and moisture ingress. The module interface facilitates communication across field networks using standard industrial protocols including Modbus, Profibus, and EtherNet/IP.

Frequently Asked Questions

Q: What is the operating voltage range for the Honeywell DC-PDIL51 digital input module?

A: The module accepts a digital DC input voltage range of 12 to 24 VDC.

Q: What mounting options are supported by the 51454818-175 module?

A: It can be mounted using either a standard DIN rail or panel-mount configuration.

Q: What environmental protection rating does the module enclosure carry?

A: It features an IP67 enclosure rating and operates in ambient temperatures from -40 deg C to +85 deg C.
