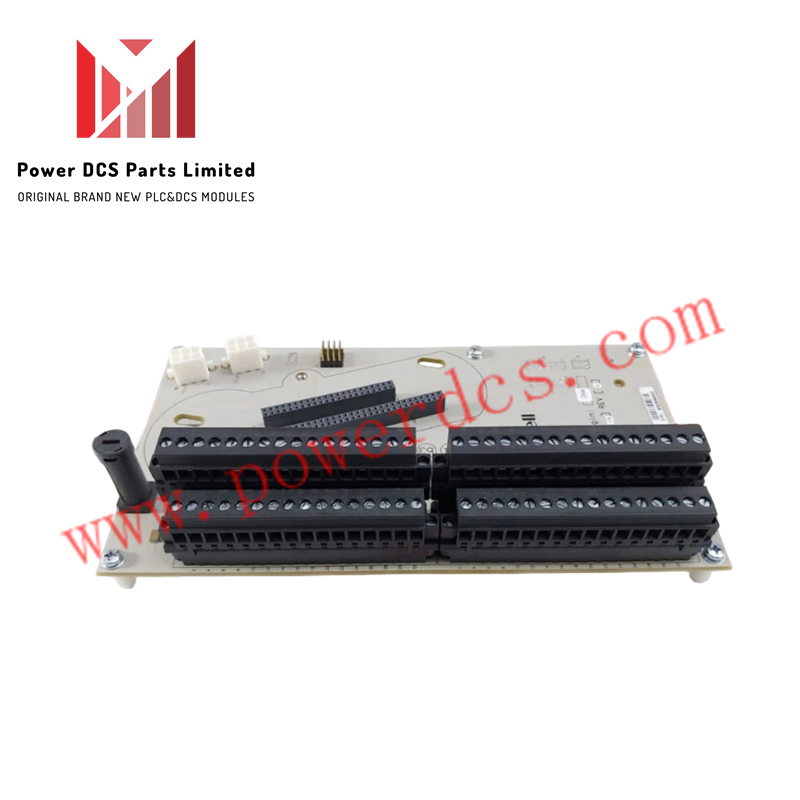

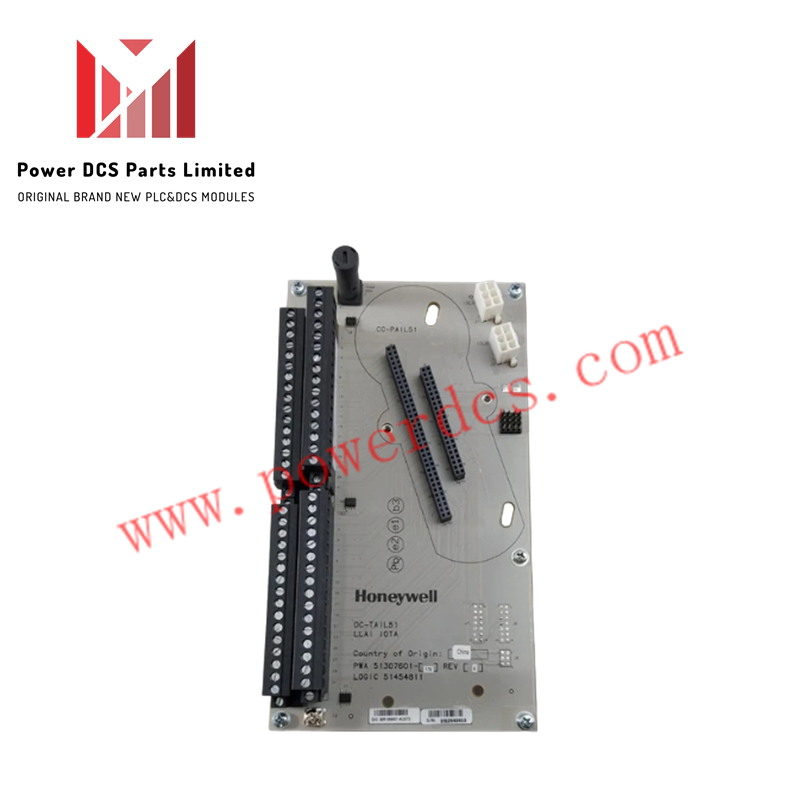

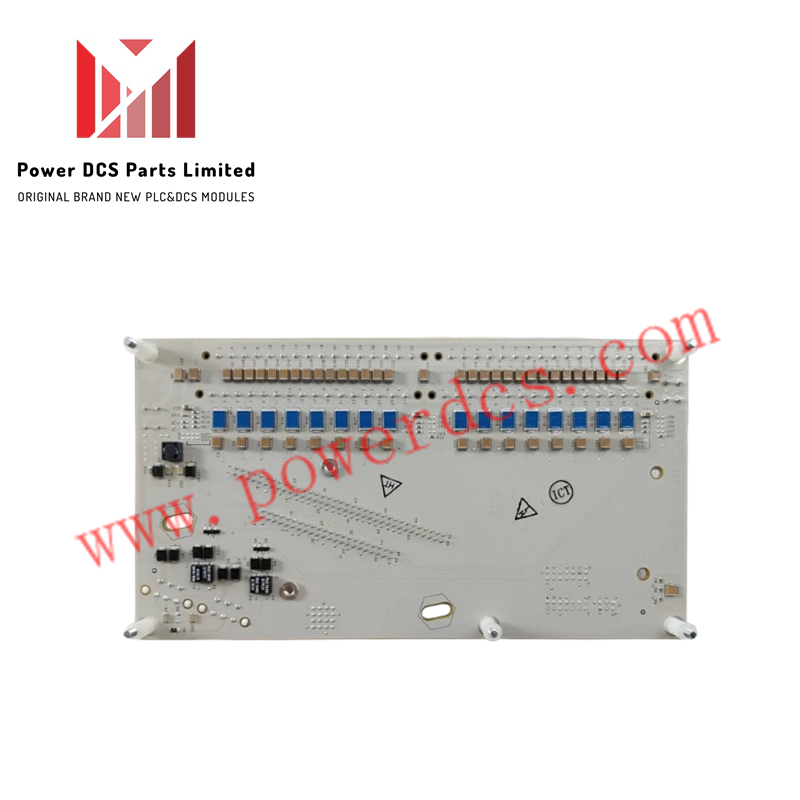

Honeywell DC-TAIL51 Analog Output 24V IOTA Module

The DC-TAIL51 is a 24 VDC analog output Input Output Termination Assembly (IOTA) module manufactured by Honeywell for Experion PKS automation systems. It provides physical field terminal connectivity and signal conditioning, routing analog control signals from system controller cards directly to field-actuated devices such as control valves and positioners.

Signal Routing and Field Interface

Designed for high-density I/O wiring within Experion chassis environments, the assembly provides isolated terminal connections for 24 VDC analog output loops. The board routes power and control signals to field transmitters and actuators while ensuring stable backplane communication and noise suppression across industrial field circuits.

Frequently Asked Questions

Q: What function does the Honeywell DC-TAIL51 IOTA module serve in an Experion system?

A: It functions as a termination assembly that routes 24 VDC analog output control signals between controller modules and field devices.

Q: What is the operating voltage rating for the DC-TAIL51 analog output loops?

A: The module is designed for 24 VDC field loop operation.
