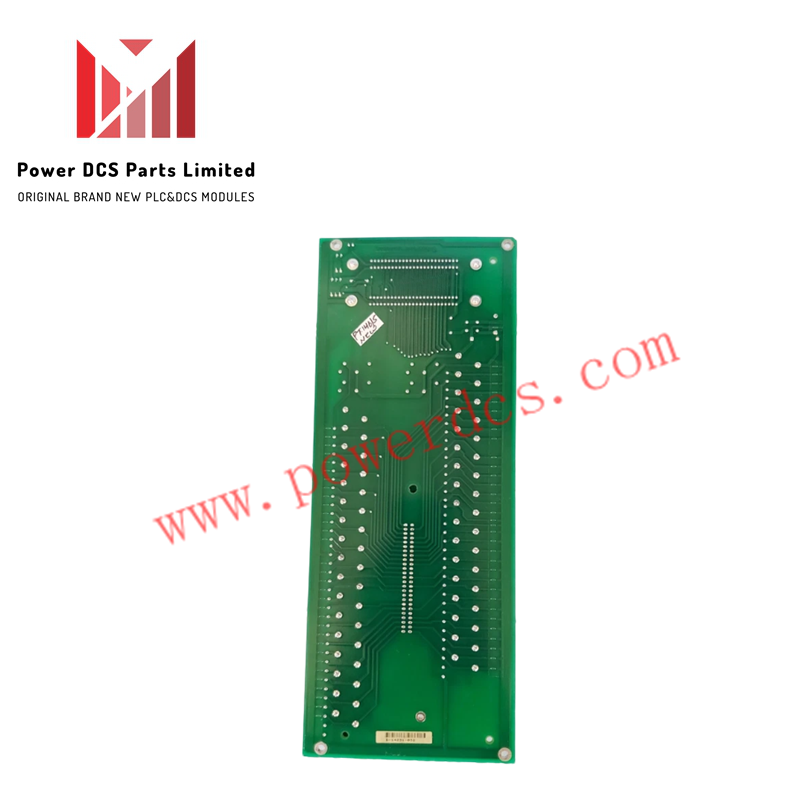

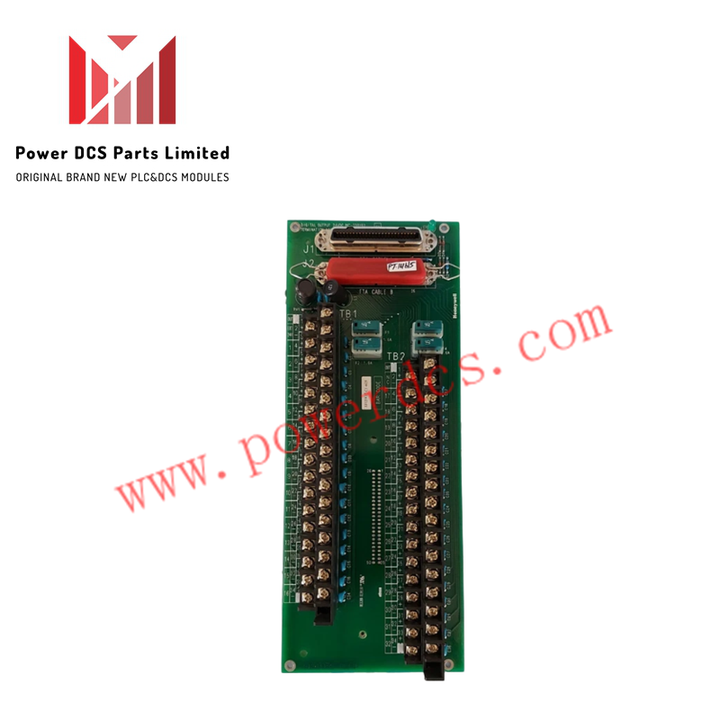

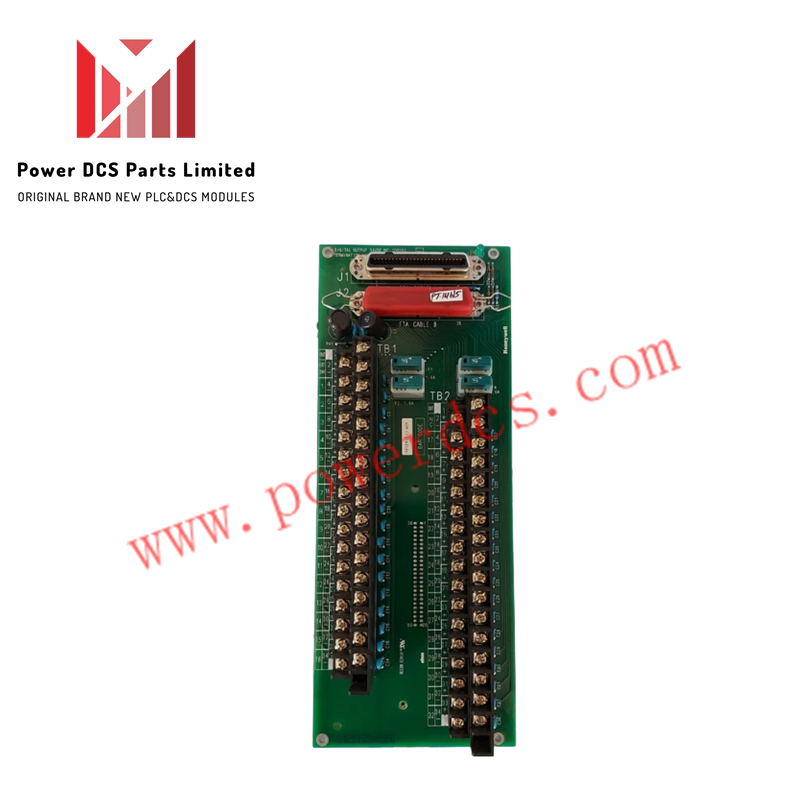

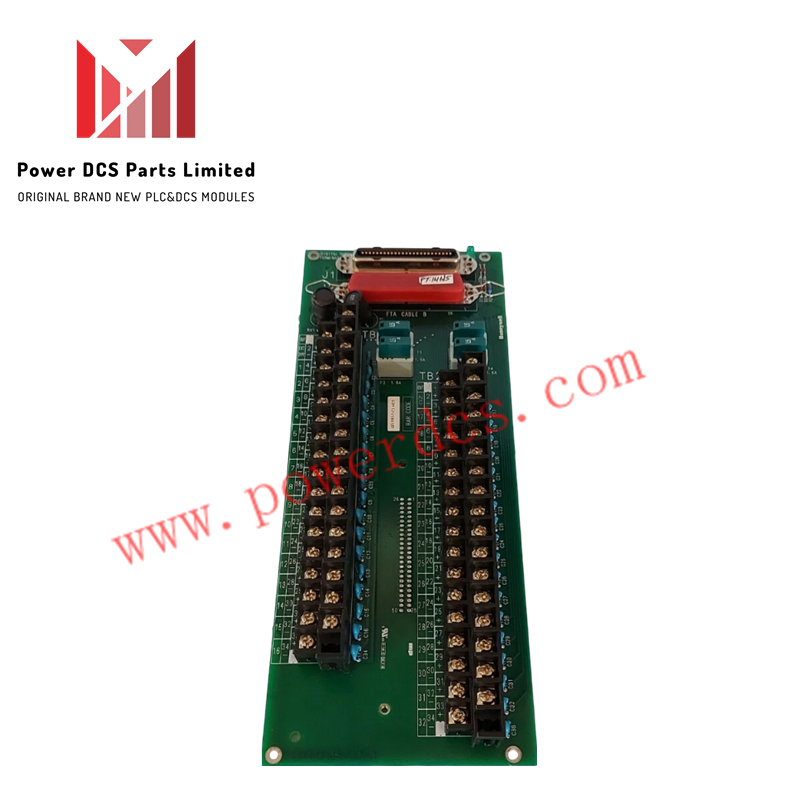

Honeywell Digital Output Termination Assembly | 51204156-175 MC-TDOY62

The Honeywell 51204156-175, also cataloged as the MC-TDOY62 Digital Output Termination Assembly, operates as a dedicated hardware component for high-density discrete signal routing within Honeywell High-Performance Process Manager (HPM) and Experion systems. Configured as a 24 VDC Field Termination Assembly (FTA), it interfaces between the digital output processor cards and field discrete loads. The assembly processes 32 output channels, executing physical relay and solid-state switching commands to control field solenoids, indicators, and interlock circuits.

Hardware Specifications

DCS Process Control & Channel Isolation

The MC-TDOY62 field termination assembly integrates channel-to-channel isolation parameters to prevent electrical transients on the 24 VDC field output loops from damaging core system backplane components. Dedicated output paths decouple individual discrete channels, ensuring that field wiring shorts or unexpected inductive kickback from solenoid coils do not propagate back to the primary digital output processor modules.

The circuit trace design accommodates 32 independent output channels without thermal crowding or signal crosstalk. By isolating channel supply lines and maintaining isolated field terminal grounds, the assembly prevents broad-spectrum ground loop noise from corrupting low-voltage instrument signals co-located in adjacent system raceways.

Frequently Asked Questions

Q: Can the MC-TDOY62 FTA be replaced while the system backplane remains energized?

A: While system logic power remains stable, field-side 24 VDC loop power to the FTA terminals should be isolated prior to removing terminal connectors or replacing the assembly to prevent arcing and output bumps.

Q: What is the primary output rating for the channels on the MC-TDOY62?

A: The board operates on a nominal 24 VDC field voltage bus across all 32 channels, driving discrete actuators, interlock relays, and status indication loops.

Q: How are field wiring connections made to the MC-TDOY62 board?

A: Field conductors connect directly via multi-position screw terminal assemblies, allowing point-to-point wiring termination for each of the 32 discrete output circuits.

Field Installation Guidelines

• Cabinet Mounting and Earthing: Secure the assembly to the designated cabinet DIN rail or mounting plate. Ensure the chassis ground lug is tied directly to the system earth ground bus using low-impedance copper grounding straps.
• Wiring Practices and Strain Relief: Route 24 VDC output cables separately from low-level analog or communication buses. Group conductors neatly and apply cable ties to prevent mechanical stress on the terminal blocks.
• Inductive Load Suppression: Install external flyback diodes across field-mounted DC inductive loads (such as solenoid valves and relay coils) to suppress voltage spikes and prevent contact oxidation.
