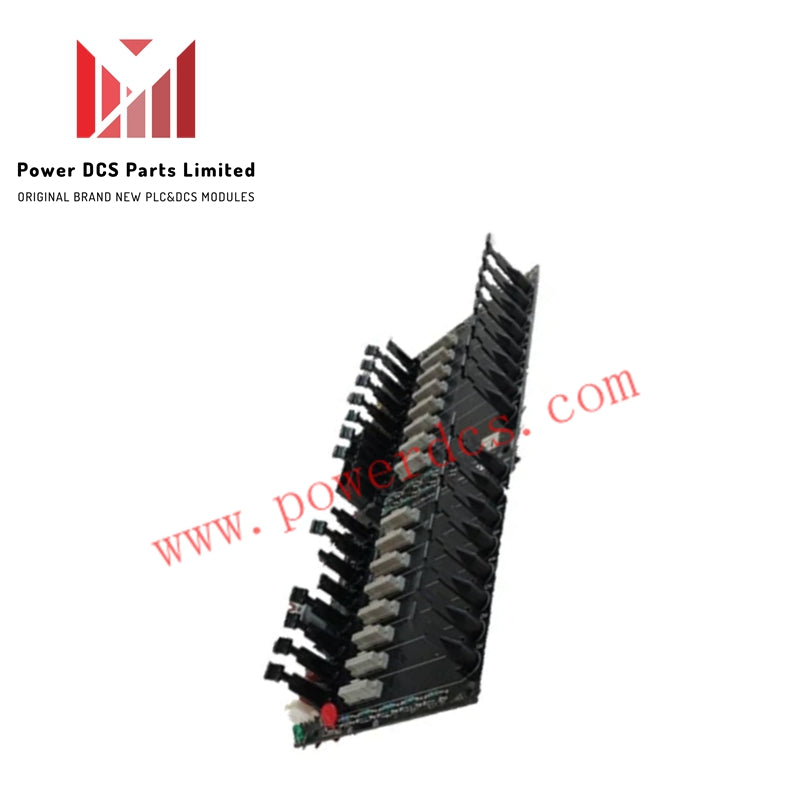

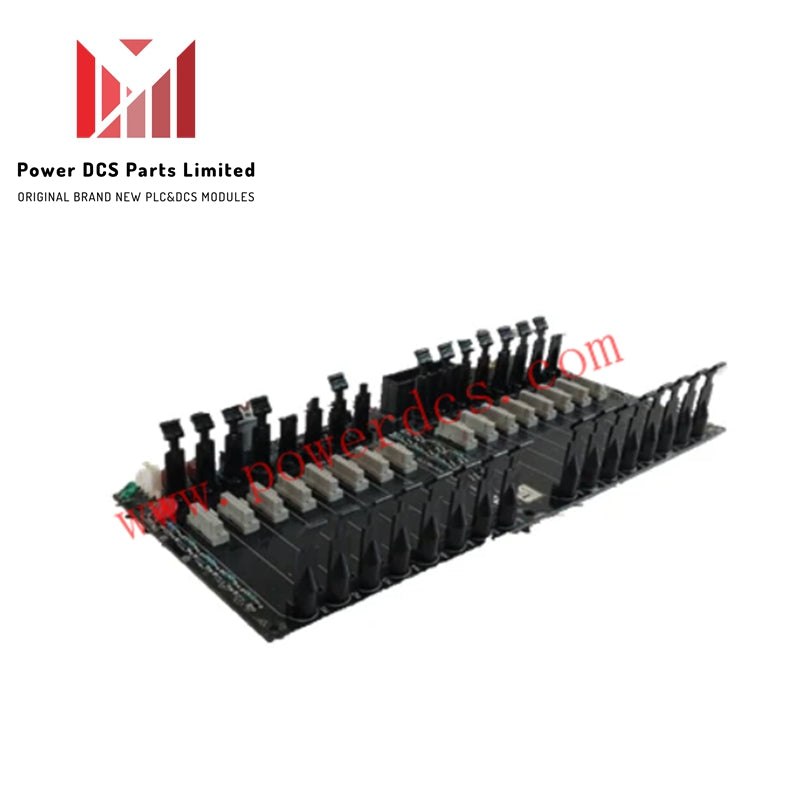

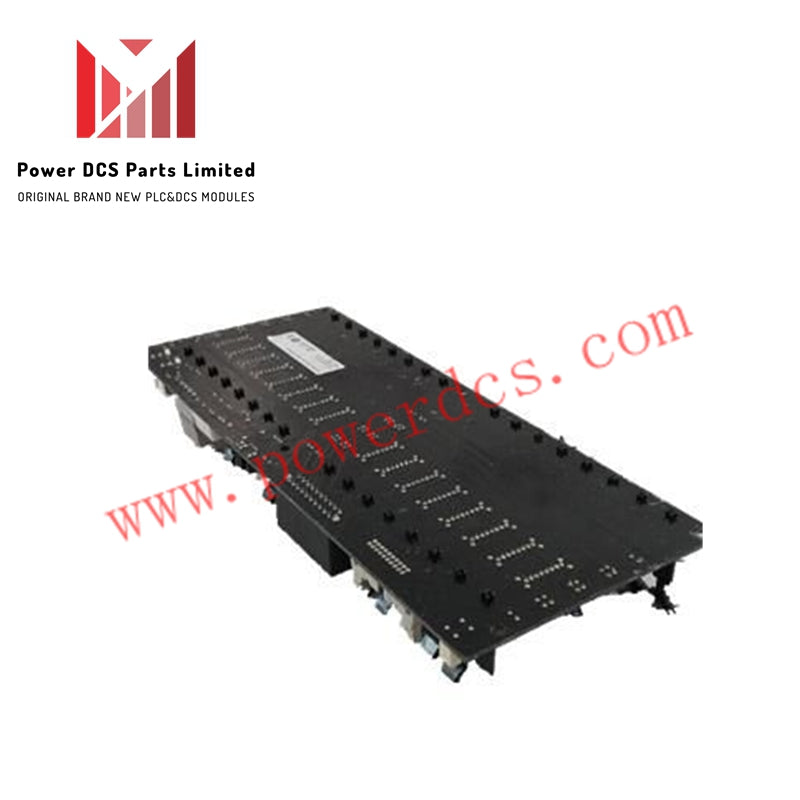

Honeywell FC-GMLA16 Analog Input FTA Module

The Honeywell FC-GMLA16, also cataloged as the FC-GMLA16 16-Channel Field Termination Assembly (FTA), operates as a dedicated hardware component for converting 4-20 mA analog field loop currents into processed digitised signals within Honeywell Safety Manager platforms. Designed with integrated signal conditioning networks, the unit performs hardware filtering, open/short-circuit loop fault detection, and sensor linearization on each channel. The assembly draws 20 mA at 24 VDC auxiliary supply across an operating temperature spectrum of -40 to 70 deg C.

Hardware Specifications

Channel-to-Channel Isolation & 4-20 mA Loop Processing

The FC-GMLA16 integrates individual channel-to-channel isolation networks alongside 4-20 mA HART loop protocol compatibility to prevent field-side ground loops from corrupting central logic processor signals. Internal isolation transformers and transient suppression arrays attenuate high common-mode voltages and electrical noise induced across long field transmitter wire runs. By maintaining signal conditioning and channel isolation at the termination level, the module guarantees analog input accuracy without burdening backplane communication processing nodes.

Frequently Asked Questions

Q: How does the FC-GMLA16 handle field wiring fault detection on active analog loops?

A: Internal monitoring circuits evaluate loop current thresholds continuously, triggering diagnostic fault bit assertions when current levels fall below open-circuit limits or exceed short-circuit bounds.

Q: What grounding procedure must be observed during installation of 4-20 mA field loops?

A: Shielded twisted-pair wiring shields must be bonded to a single cabinet earth ground point at the FTA terminal block to avoid circulating ground currents.

Q: Is external power filtering required for the 24 VDC power supply connection?

A: The board contains onboard power conditioning and transient suppression logic; however, a regulated 24 VDC source with voltage stability within nominal industrial tolerances must be supplied.

Field Installation Guidelines

1. De-energize the 24 VDC main field power supply before connecting or disconnecting field wiring terminals on the module.
2. Mount the enclosure securely within an IP65-compliant panel arrangement or DIN rail layout maintaining clearance for convective heat dissipation.
3. Terminate 4-20 mA transmitter loops using shielded twisted-pair cables, ensuring drain wires connect strictly to designated earth chassis ground bars.
4. Verify channel polarity matching on field loop connections prior to restoring 24 VDC auxiliary power.
5. Check that operating ambient temperatures inside the local junction box stay strictly within the -40 to 70 deg C thermal envelope.
