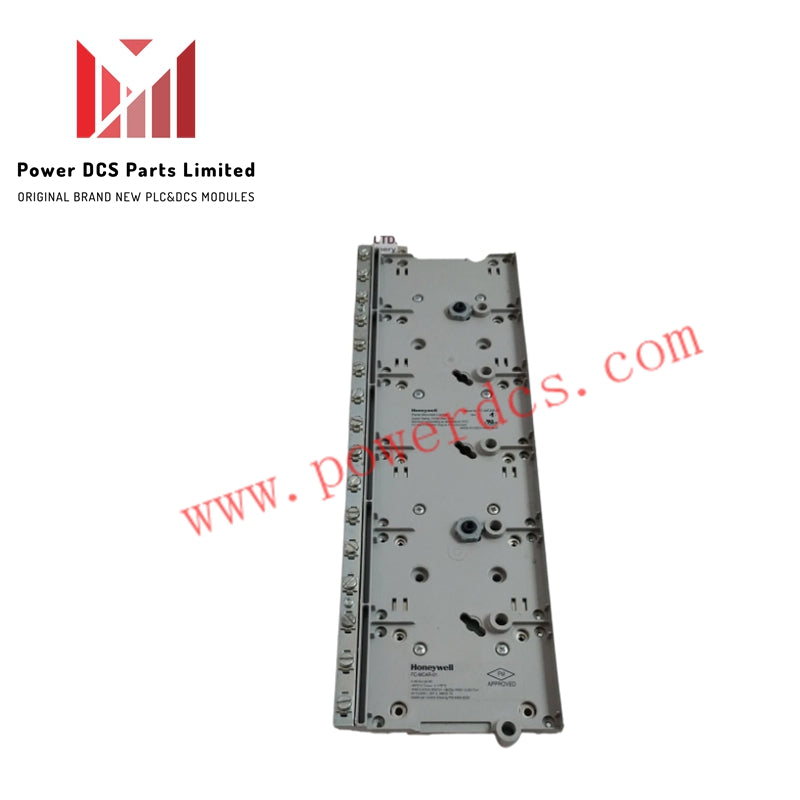

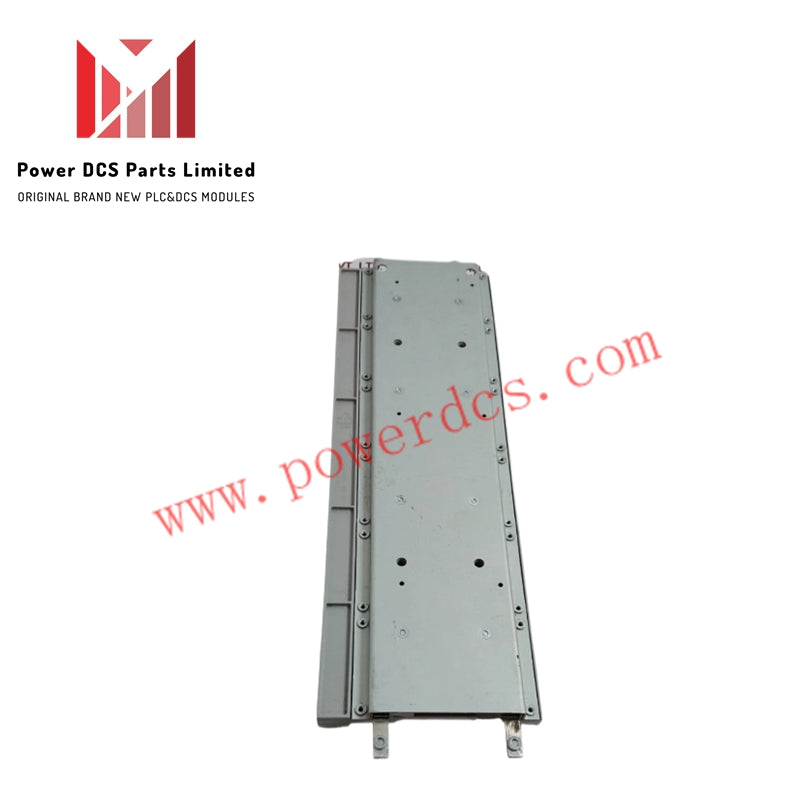

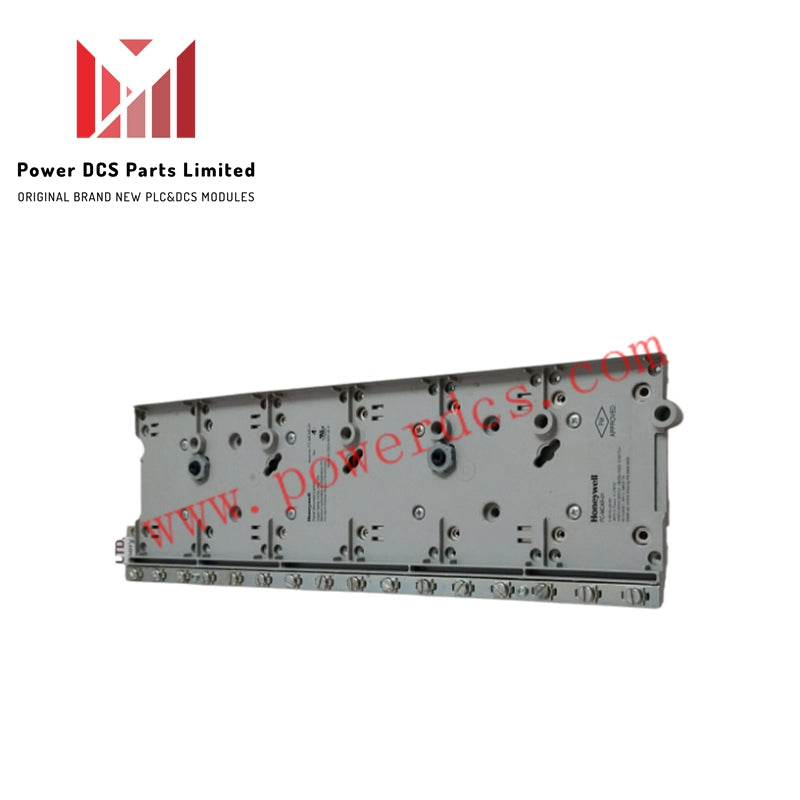

Honeywell FC-MCAR-01 Module Carrier

Configured for high-density I/O cluster mounting and heavy-duty power distribution in Safety Manager and Fail Safe Control platforms, the Honeywell FC-MCAR-01, also cataloged as the FC-MCAR-01 Module Carrier Panel, provides direct physical/electrical execution.

Hardware Specifications

Cold Junction Compensation & Channel Isolation

The module carrier backplane provides dedicated high-current supply busbars and signal routing paths for installed analog and digital modules. High-density channel-to-channel isolation across backplane connectors mitigates ground loop current shifts and field line noise transients. This isolated physical infrastructure preserves low-level signal integrity and cold junction compensation reference values across connected 4-20 mA HART loop protocol analog input channels, preventing measurement drift in high-density safety architectures.

Frequently Asked Questions

Q: What is the maximum current capacity supported on the primary supply rail of the FC-MCAR-01?

A: The backplane supply rail supports a maximum current capacity of 40 A at 24 VDC nominal voltage.

Q: Can different types of I/O modules be populated on a single FC-MCAR-01 carrier?

A: Yes, the board serves as a universal carrier supporting mixed configurations of Honeywell Safety Manager analog and digital I/O modules.

Q: What mounting orientation is recommended to optimize thermal performance up to +70 deg C?

A: Vertical cabinet mounting is recommended to facilitate natural convection airflow across installed modules and carrier power busbars.

Field Installation Guidelines

1. Mount the carrier plate securely onto the panel frame or 19-inch rack enclosure using specified mounting hardware.
2. Verify that cabinet earth grounding straps connect directly to the main grounding stud on the carrier chassis.
3. Connect main 24 VDC power feed conductors to the primary power input terminals, ensuring correct polarity.
4. Insert I/O modules firmly into their respective slot guide rails until backplane connectors fully seat and latching mechanisms engage.
5. Keep high-voltage AC wiring isolated from low-voltage DC power and field signal lines within panel wireways.
