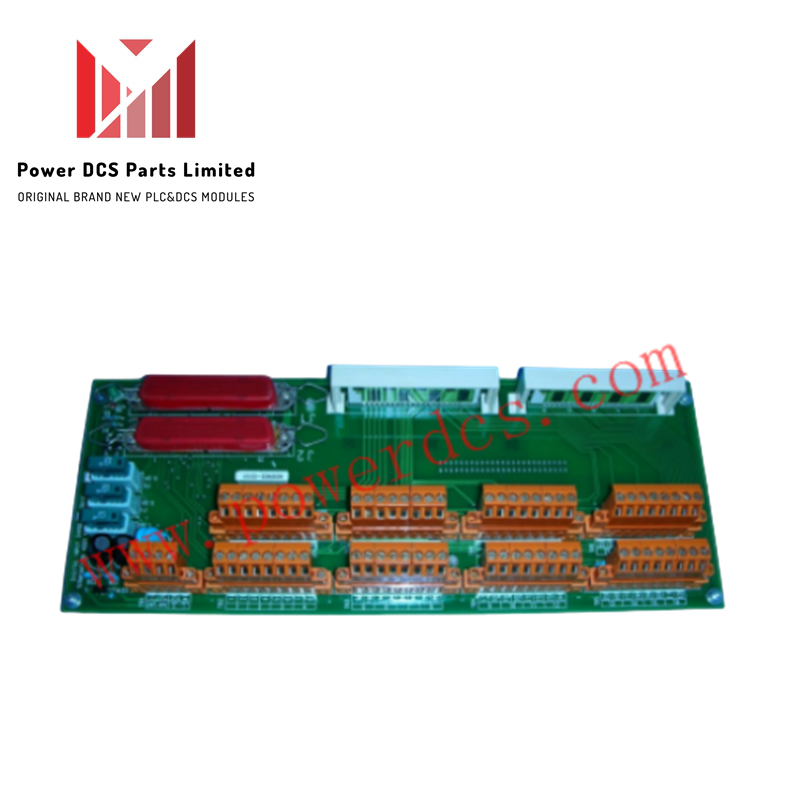

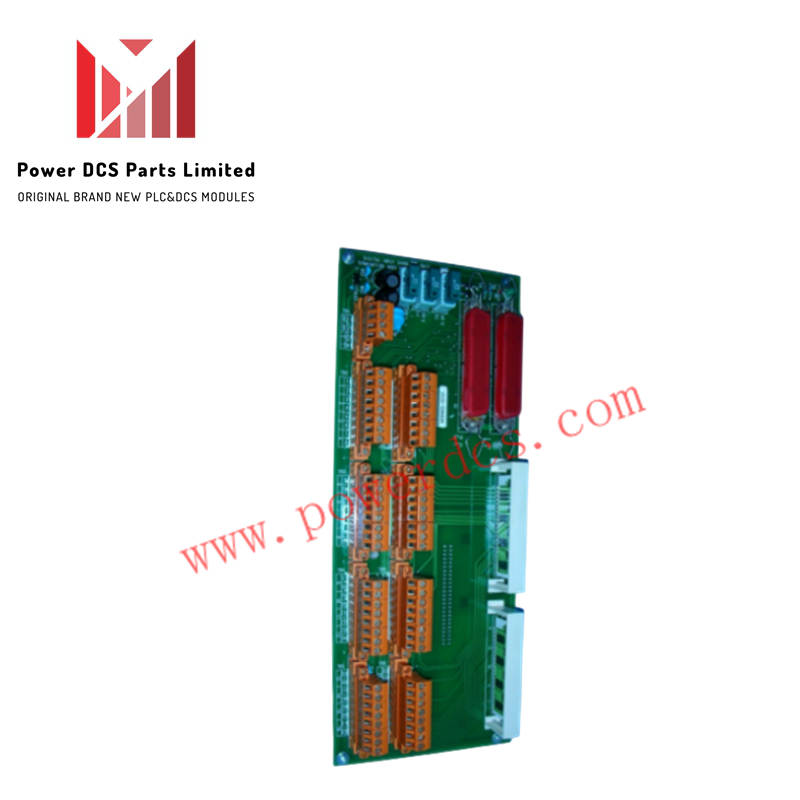

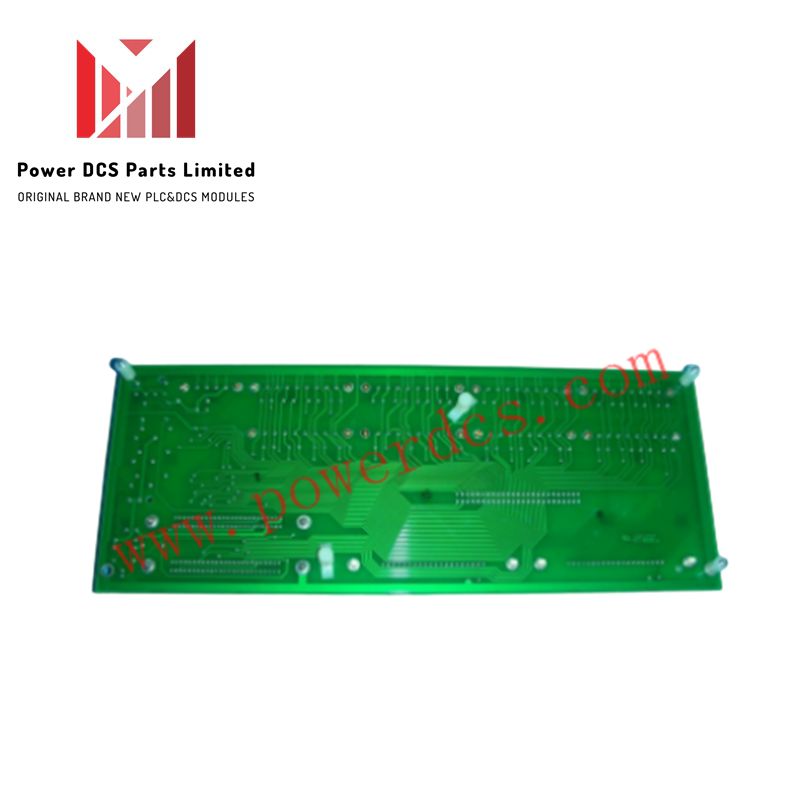

Honeywell FC-RUSFDU-02 Terminal Board Module

Specifications

  • Manufacturer: Honeywell

  • Product No.: FC-RUSFDU-02

  • Condition: 10 Items in Stock

  • Product Type: Termination Boards

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 560g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

The Honeywell FC-RUSFDU-02, also cataloged as the FC-RUSFDU-02 PCB Terminal Board Module, operates as a dedicated hardware component for field interface wiring termination and signal routing within Honeywell Safety Manager platforms.

Hardware Specifications

Parameter Specification
Model FC-RUSFDU-02
Brand Honeywell
Origin USA
Weight 0.56 kg
Dimensions 3.0 x 31.3 x 27.8 cm
Operating Temp -10 to +60 deg C
Power Consumption Passive printed circuit assembly load
Product Type PCB Terminal Board Module
Mounting Type Chassis / Rack-mounted
Integration Honeywell Safety Manager / Safety Universal I/O

Channel-to-Channel Isolation & Galvanic Protection

The FC-RUSFDU-02 terminal board routing matrix maintains discrete physical separation pathways between field instrumentation loops and system backplane channels. Galvanic isolation and embedded filter networks suppress ground potential shifts, voltage spikes, and electromagnetic interference. This signal conditioning preserves loop integrity across connected 4-20 mA HART loop protocol transmitters and discrete safety I/O modules operating in high-density control cabinets.

Frequently Asked Questions

Q: Does the FC-RUSFDU-02 PCB terminal board require active DC power supply inputs?

A: No, the board functions as a passive physical routing and termination interface between field wiring and system I/O modules.

Q: How does the terminal board assembly handle mechanical vibration within panel enclosures?

A: The printed circuit board is manufactured with heavy-duty trace layers and locking terminal headers engineered to prevent pin mechanical fatigue under continuous ambient vibration.

Q: What isolation level is provided between individual field terminal connections?

A: Physical trace spacing and isolation barriers prevent cross-channel leakage and ground loop currents between adjacent field loops.

Field Installation Guidelines

  1. Inspect the terminal board for trace continuity and connector pin integrity before chassis mounting.
  2. Align board mounting holes with panel standoffs or chassis slots and tighten retention hardware to specification.
  3. Strip field conductors to the specified strip length before inserting them into screw or tension clamp terminals.
  4. Route low-voltage analog cables separately from AC power lines to avoid inductive noise coupling.
  5. Connect all cable shield drain wires directly to the main enclosure earth grounding bus.
