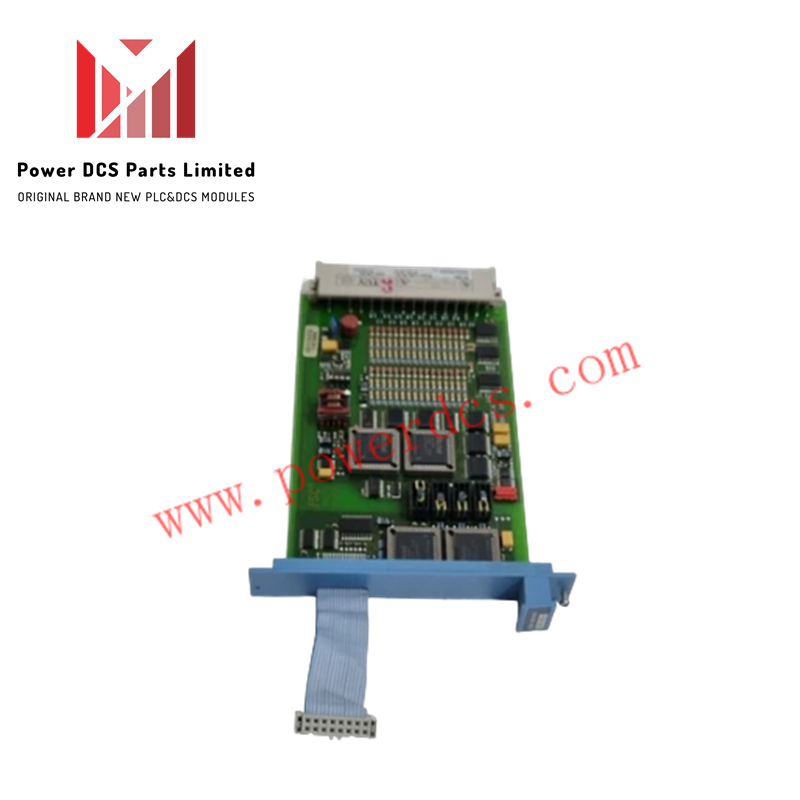

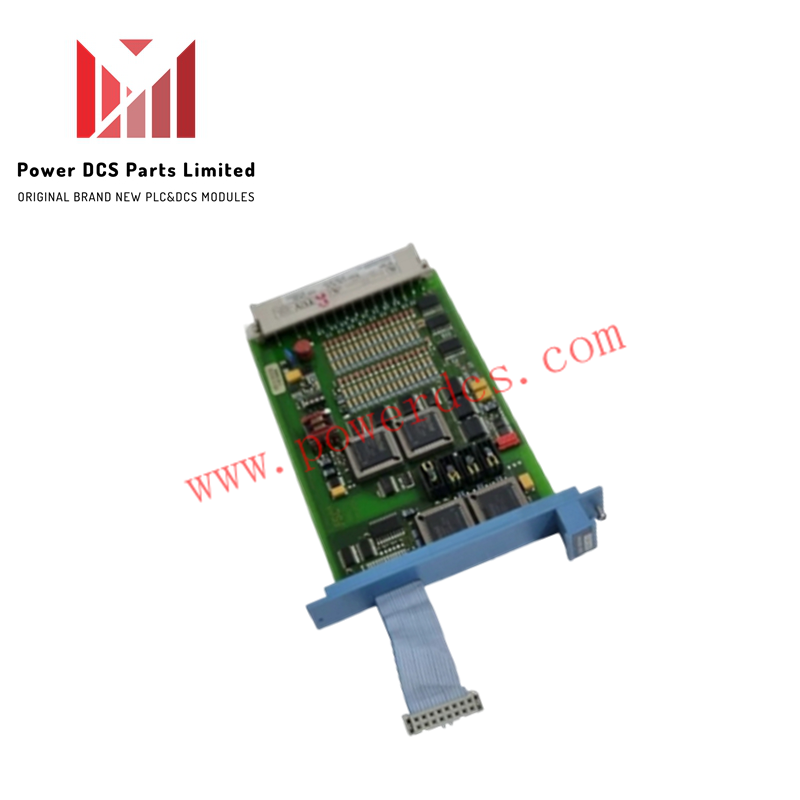

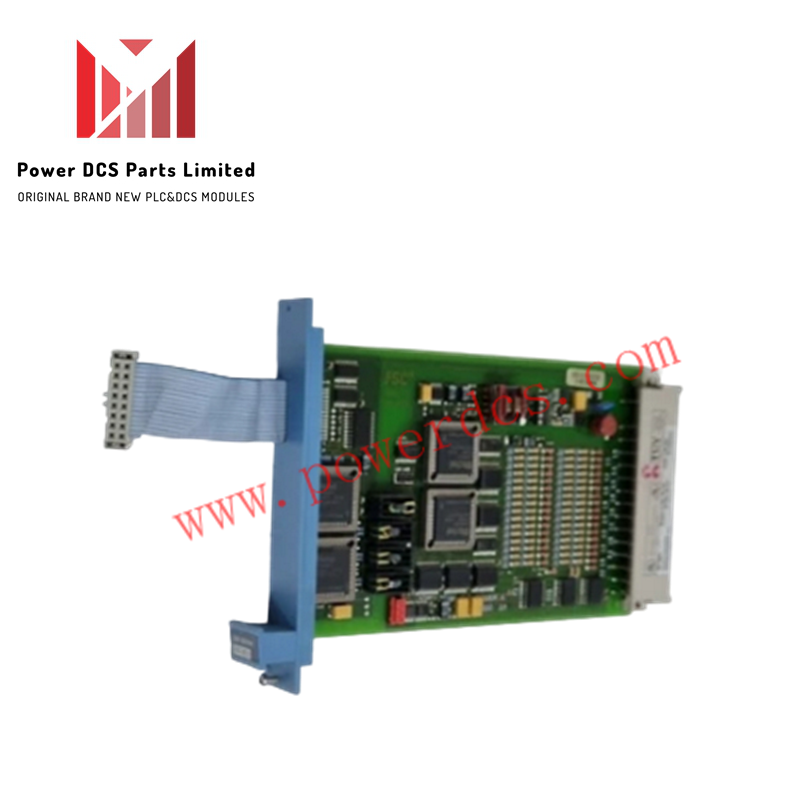

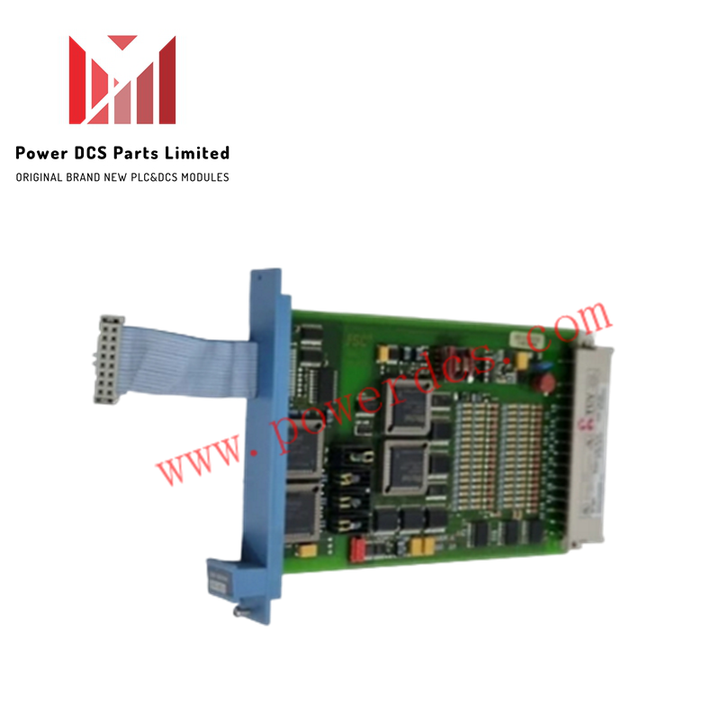

Honeywell FC-SAI-1620M Safety Manager System Module

Specifications

  • Manufacturer: Honeywell

  • Product No.: FC-SAL-1620M

  • Condition: 10 Items in Stock

  • Product Type: Analog Input Modules

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 140g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

The Honeywell FC-SAI-1620M, also cataloged as the FC-SAI-1620M Safety Manager System Module, operates as a dedicated hardware component for safe 16-channel analog signal acquisition within Honeywell Safety Manager platforms.

Hardware Specifications

Parameter Specification
Model FC-SAI-1620M
Brand Honeywell
Origin USA
Weight 0.14 kg
Dimensions 2 x 19 x 12.8 cm (0.8 x 7.5 x 5 in)
Operating Temp -20 to 70 deg C (standard panel ambient)
Power Consumption Power consumption dependent on internal backplane draw at 24 VDC
Module Type Safety Manager System Module
Input Channels 16 analog inputs
Operating Voltage 24 VDC

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

Designed for safe process parameter monitoring, the module conditions signal inputs across 16 high-density analog channels operating on a 24 VDC nominal supply. Galvanic channel-to-channel isolation restricts ground loop currents and transient voltage spikes between field transmitters and the safety backplane logic. The isolation circuitry transparently passes standard 4-20 mA HART loop signals, maintaining digital HART parameter pass-through without distorting analog measurement thresholds or logic safety functions.

Frequently Asked Questions

Q: What precautions are necessary regarding module hot-swapping inside a Safety Manager rack?

A: Before extracting the module, verify that the corresponding slot locking clips are fully released and that redundant channels are actively processing field values to prevent inadvertent safety shutdown trips during live removal.

Q: How does internal channel-to-channel isolation benefit multi-loop field wiring setups?

A: Channel-to-channel isolation prevents electrical cross-talk and potential ground offset propagation between separate instrument circuits, allowing multiple independent loop powered field devices to connect without signal distortion.

Field Installation Guidelines

  • Ensure primary power to the target safety node rack is isolated prior to module insertion or removal.
  • Slide the module card edges smoothly along the rack guides until the backplane connectors establish complete physical engagement.
  • Tighten the top and bottom retention screws to maintain solid earth bonding and prevent dislodgement under ambient cabinet vibration.
  • Route low-voltage analog signal cables in isolated wiring channels away from AC power distribution lines and high-current relay outputs.
  • Ground all field instrument cable shields at a single dedicated earth terminal bar within the control cabinet.
