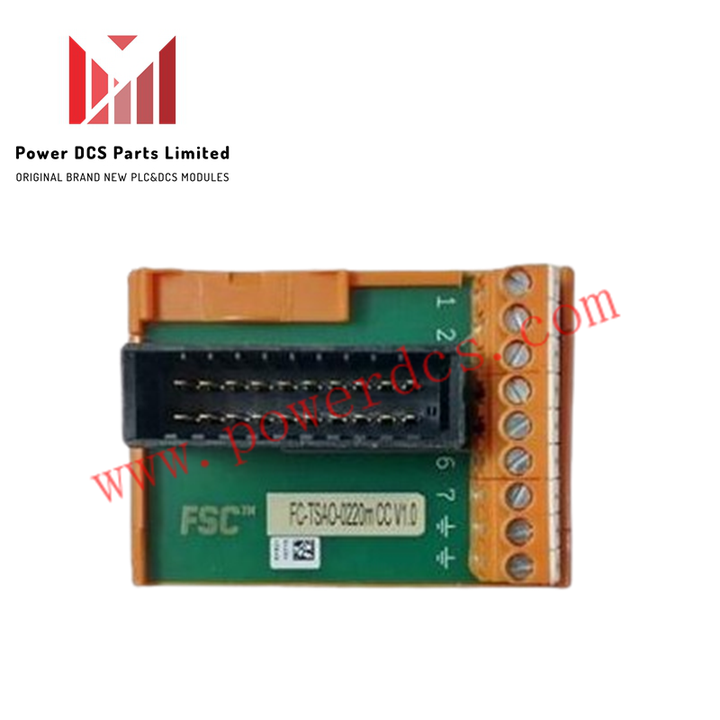

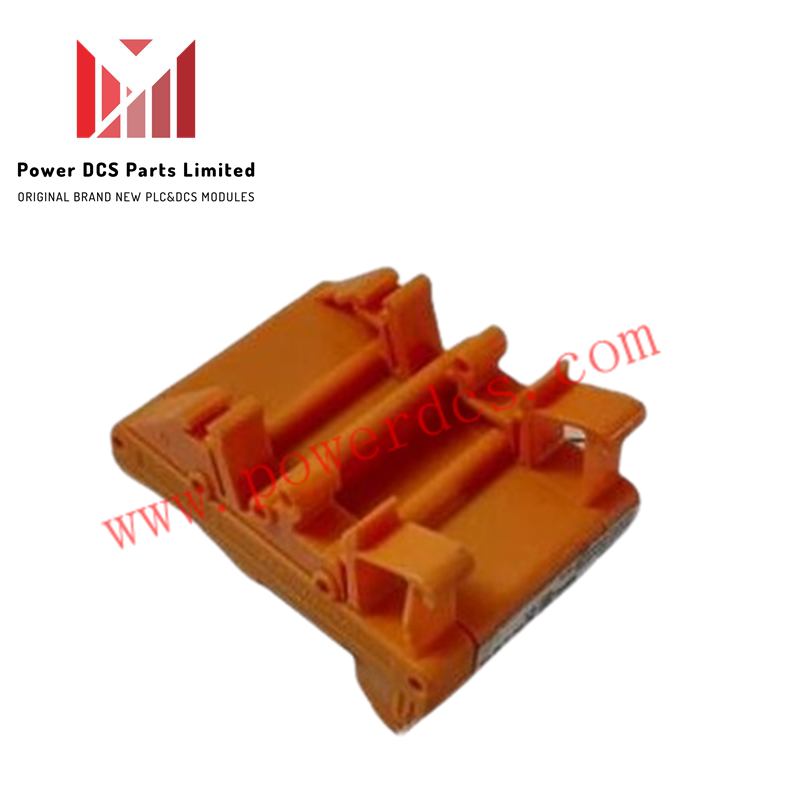

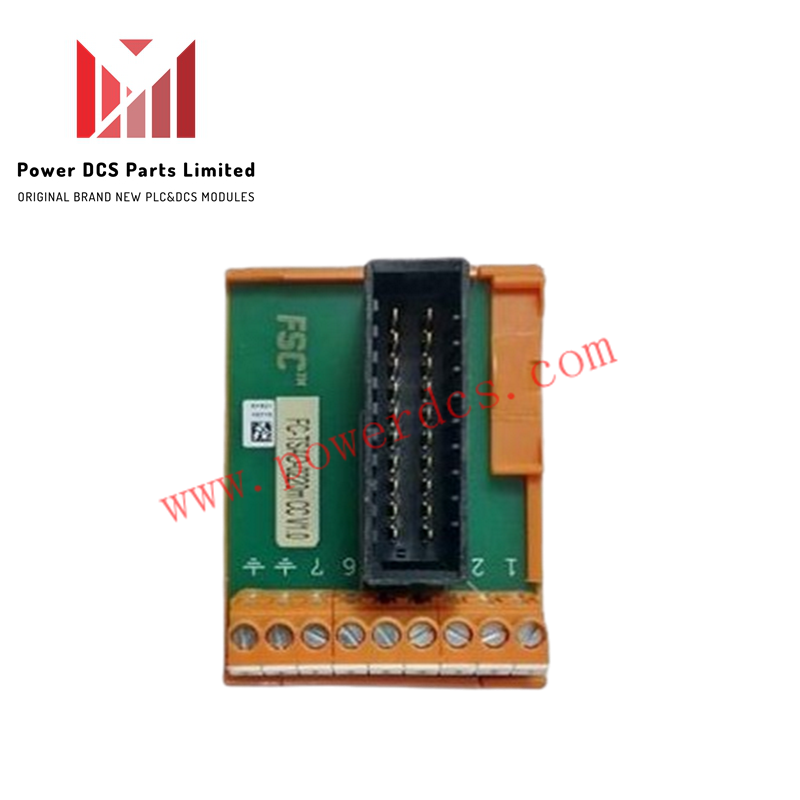

Honeywell FC-TSAO-0220 Analog Output Module

The Honeywell FC-TSAO-0220, also cataloged as the FC-TSAO-0220 Analog Output Module, operates as a dedicated hardware component for 4-20 mA analog signal generation and loop control within Honeywell Safety Manager platforms. Designed with 8 isolated analog output channels, the unit delivers digital-to-analog converted current outputs to drive field actuators, control valves, and positioners. Operating across a temperature range of -20 to +70 deg C, the 2.5 kg rack-mounted module maintains channel-to-system galvanic isolation to decouple safety logic from field loop disturbances.

Hardware Specifications

Channel-to-Channel Isolation & 4-20 mA HART Loop Integration

The FC-TSAO-0220 incorporates high-integrity channel-to-system galvanic isolation to prevent ground loops and high-voltage field spikes from propagating into the backplane logic architecture. Dedicated digital-to-analog converters on each of the 8 channels ensure precise current sourcing for safety-critical loops. The signal driver circuitry supports 4-20 mA HART loop protocol pass-through, allowing digital field device parameters and diagnostics to coexist with analog control outputs without signal degradation.

Frequently Asked Questions

Q: Does the FC-TSAO-0220 support hot-swapping during active system operation?

A: Yes, the module features a hot-swappable modular chassis interface allowing online replacement without de-energizing adjacent rack hardware.

Q: How does channel-to-system isolation function on the FC-TSAO-0220?

A: Galvanic isolation barriers physically decouple field-side current circuits from system logic, isolating individual channel electrical faults.

Q: What analog signal standards are output by the 8 channels?

A: All 8 channels drive standard industrial 4-20 mA current loops for safety-critical actuator and control valve positioners.

Field Installation Guidelines

1. De-energize external 4-20 mA field loop power feeds before inserting or removing field termination connections.
2. Slide the module into the designated rack slot along chassis guide rails until backplane connectors engage securely.
3. Use shielded twisted-pair cabling for all 4-20 mA output loops to prevent electromagnetic noise coupling.
4. Connect all cable drain wires to the main cabinet earth ground bar at a single termination point.
5. Confirm cabinet ambient operating temperatures remain within -20 to +70 deg C prior to placing channels in auto control mode.
