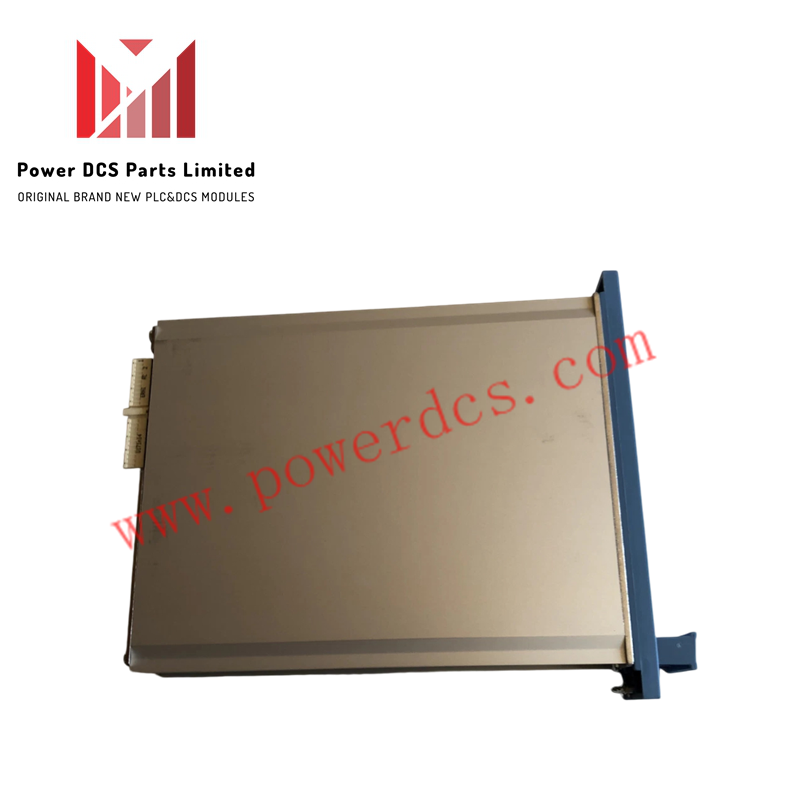

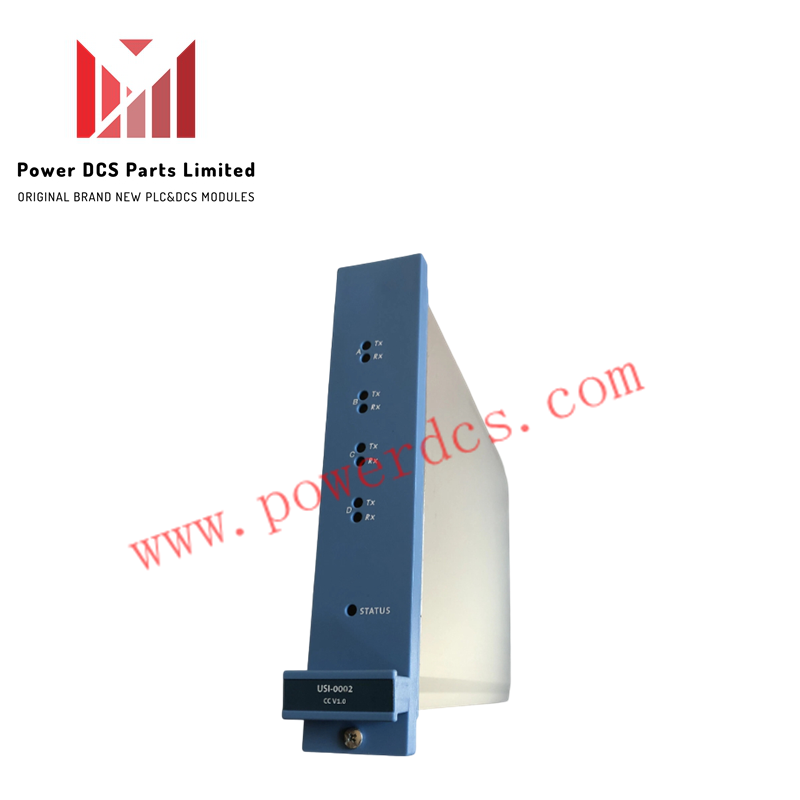

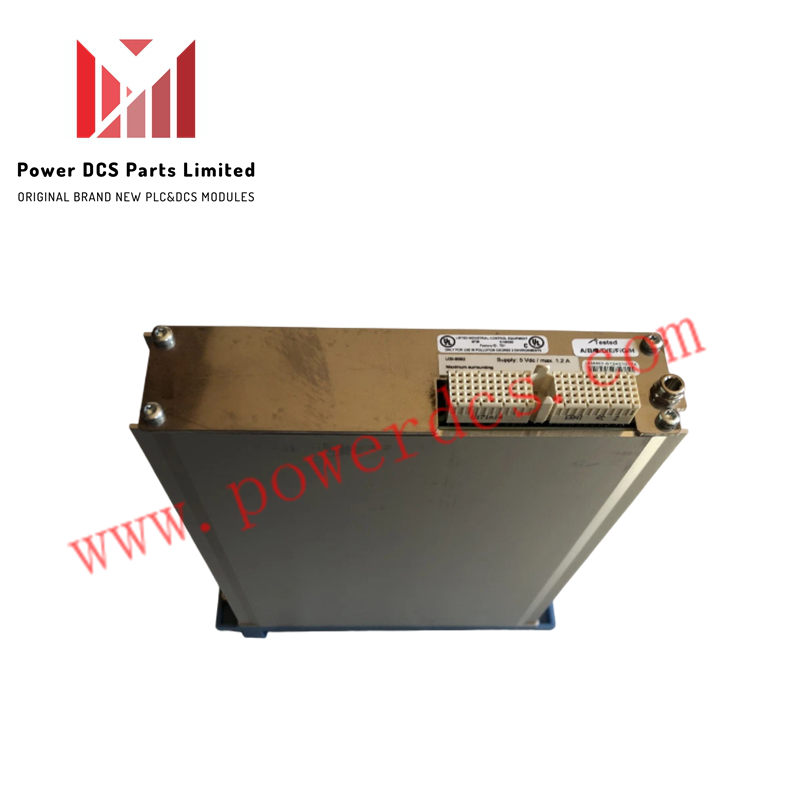

Honeywell FC-USI-0002 CC V1.0 Universal Safety Interface Module

The Honeywell FC-USI-0002 CC V1.0, also cataloged as the FC-USI-0002 Universal Safety Interface Module, operates as a dedicated hardware component for safety-critical data routing and protocol translation within Honeywell Safety Manager platforms. Interfacing directly with the chassis backplane bus, the module processes field telemetry and safety logic signals through onboard isolation networks to prevent voltage spikes from compromising system processing nodes. The card maintains real-time communications across redundant system channels to execute continuous diagnostic and safety state functions.

Hardware Specifications

Channel-to-Channel Isolation

The FC-USI-0002 CC V1.0 incorporates channel-to-channel isolation barriers and dedicated transient voltage suppression networks to prevent high common-mode currents from breaching internal logic paths. By isolating discrete communication loop grounds from the central processing backplane, the module maintains continuous safety signal routing under severe electrical noise conditions, suppressing ground loops and cross-talk interference across dense control cabinet configurations.

Frequently Asked Questions

Q: Does the FC-USI-0002 CC V1.0 support online replacement while the safety manager is active?

A: Module removal or replacement requires verifying that redundant communication paths are active or placing the associated safety loop into a predetermined safe manual state prior to disengaging the backplane connectors.

Q: How is logic power supplied to the module internal components?

A: Power is drawn directly from the chassis redundant backplane DC power rails through internal isolated power regulation circuits.

Q: What protective measures prevent external voltage spikes from damaging the internal communication channels?

A: Integrated transient surge suppression diodes and galvanic isolation transformers shield logic circuits against field wiring faults and induced electrical noise.

Field Installation Guidelines

1. Isolate main power to the target safety rack prior to inserting or removing the interface module.
2. Align the module circuit card edges with the card guides located inside the chassis slot.
3. Push the assembly firmly into the rack slot until the backplane edge connectors seat completely into the bus header.
4. Tighten captive faceplate retention screws to ensure mechanical integrity and grounding continuity.
5. Verify that field wiring shield lines connect to a single cabinet earth ground point to prevent ground loops.
