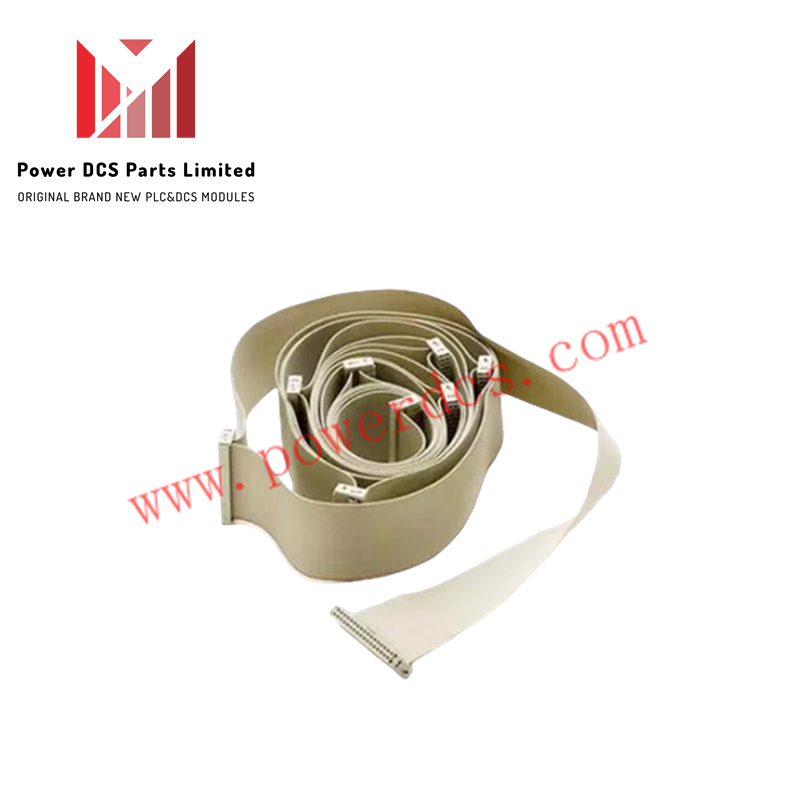

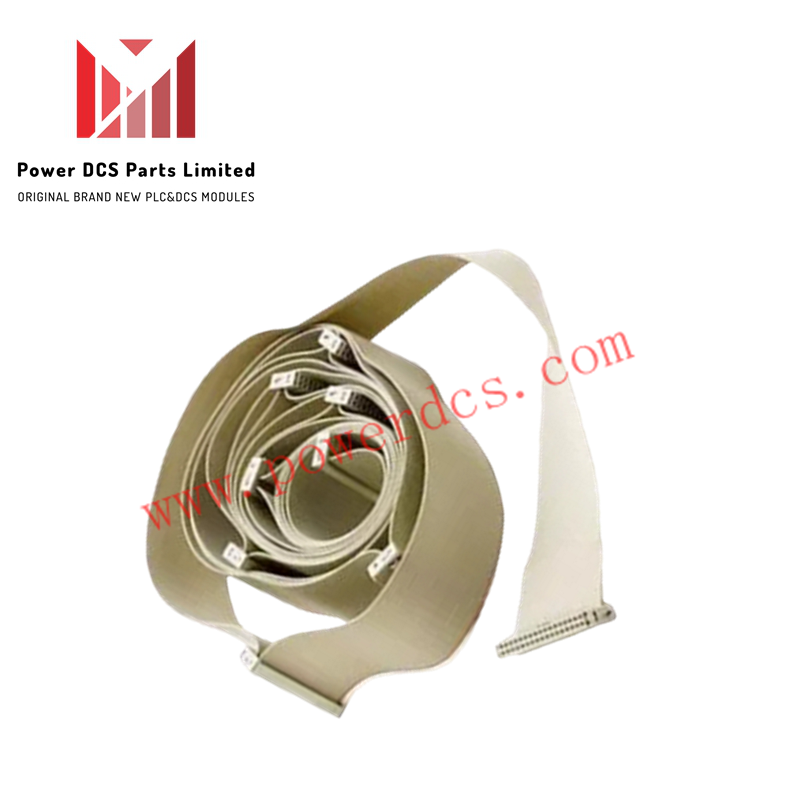

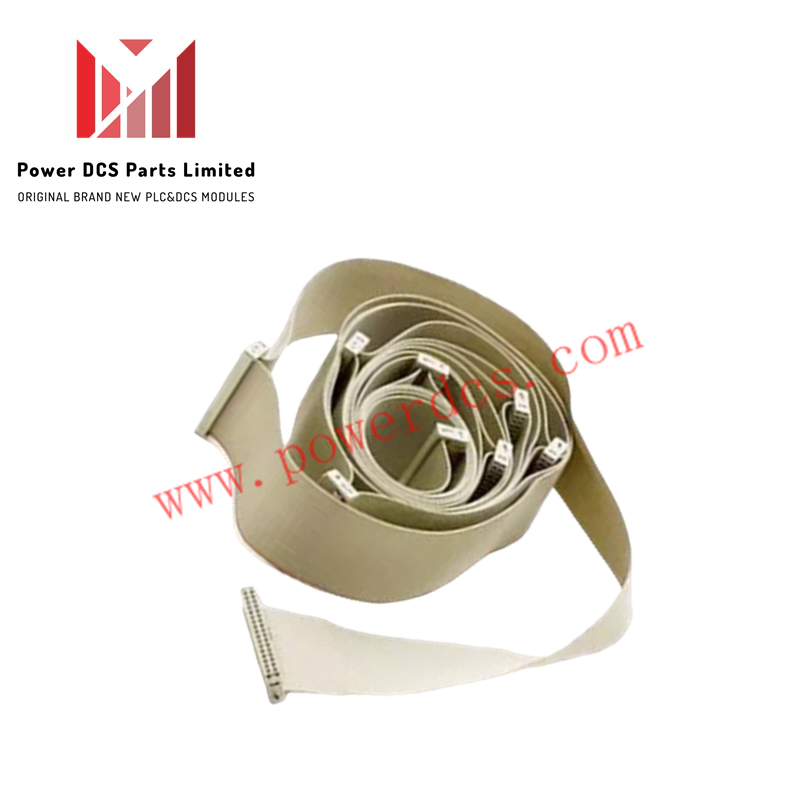

Honeywell FS-IOBUS-CPIO I/O Bus Cable

The Honeywell FS-IOBUS-CPIO, also cataloged as the FS-IOBUS-CPIO I/O Bus Cable, operates as a dedicated hardware component for high-speed bus communication between the controller chassis and extension I/O chassis within Honeywell Safety Manager platforms.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The bus cable assembly implements double-shielded twisted-pair conductors to enforce channel-to-channel isolation principles across chassis interconnection lines. This physical isolation prevents high-frequency backplane bus switching noise and ground loop potential offsets from coupling into sensitive analog field input circuits. The assembly maintains differential signal integrity across multi-rack topologies, allowing transparent transmission of 4-20 mA HART loop protocol diagnostic data and safety system logic states between controller modules and remote I/O sub-assemblies.

Frequently Asked Questions

Q: What physical connector style is used to attach the FS-IOBUS-CPIO cable to chassis backplanes?

A: The cable assembly utilizes 34-pole female latch connectors on its ends to provide positive mechanical lock and vibration-proof electrical engagement with backplane headers.

Q: Can the FS-IOBUS-CPIO bus cable be disconnected while the system is operating?

A: Unplugging the I/O bus cable breaks active communication between the controller chassis and the expansion I/O rack; disconnection must only occur under bypass conditions or when the associated I/O rack is de-energized.

Q: What safety agency approvals govern the electrical design of this cable assembly?

A: The FS-IOBUS-CPIO assembly holds formal UL and CSA certifications for industrial safety system compliance.

Field Installation Guidelines

• Route the I/O bus cable through dedicated low-voltage wireways inside the control enclosure, maintaining separation from high-voltage AC power wiring.
• Align the 34-pole female connector with the mating male header on the controller or I/O chassis backplane and push firmly until the side retention latches click fully into place.
• Observe a minimum static bending radius along the cable run to prevent conductor fatigue or shield mesh deformation.
• Verify that the cable shield drain wire is properly referenced to the cabinet protective earth (PE) bus bar at a single termination point to prevent circulating ground currents.
