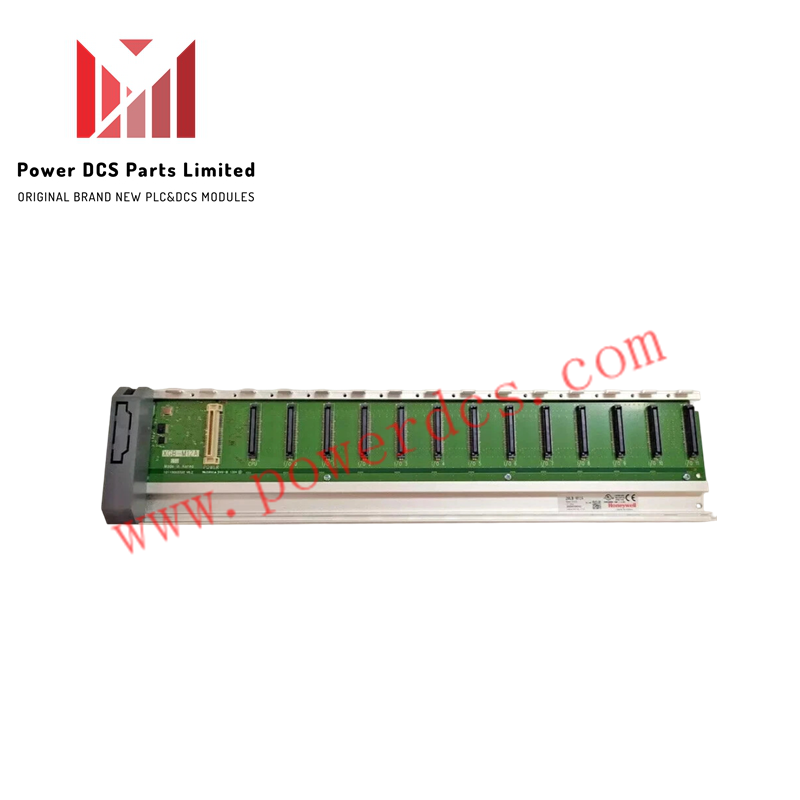

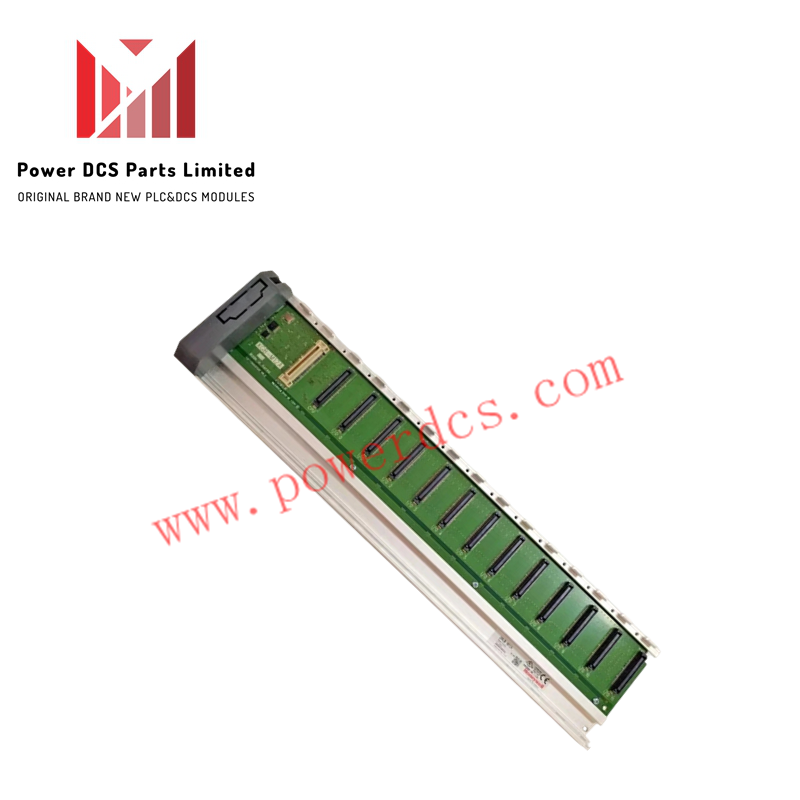

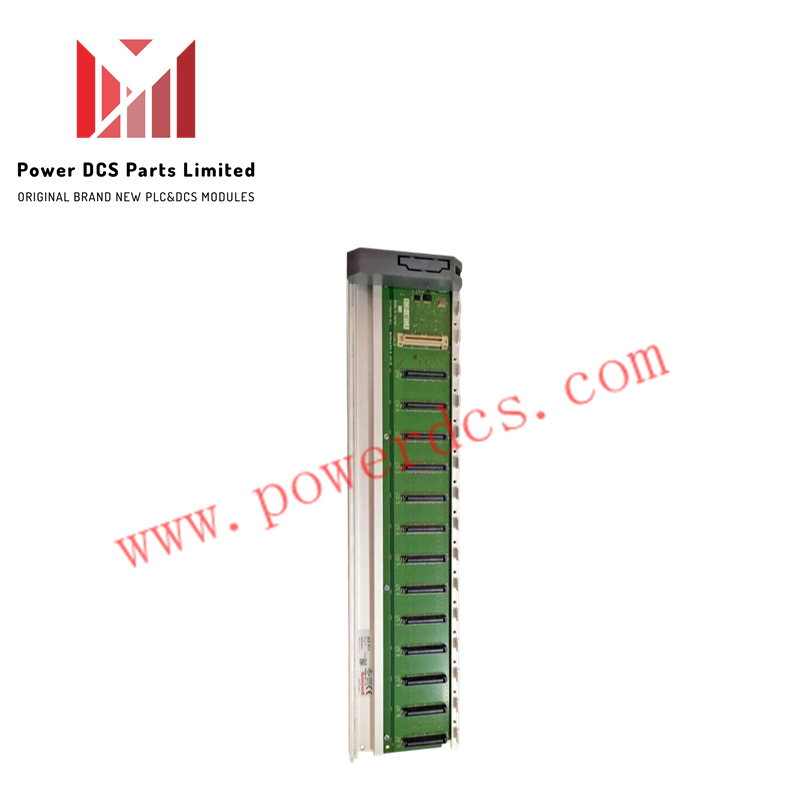

Honeywell Main CPU Base | 2MLB-M12A

The Honeywell 2MLB-M12A is a 12-slot main CPU base designed to serve as the structural and backplane backbone for Honeywell automation rack assemblies. It accommodates up to 12 modules, enabling centralized mounting and interconnection between CPU processors, power supplies, and expansion I/O units.

Backplane Integration and Structure

The base provides physical slot positions to route internal system communication signals and power across installed modules. Measuring 426 mm x 98 mm x 19 mm with a net weight of 0.54 kg, its multi-slot configuration simplifies control cabinet layout by housing extensive rack hardware within a single chassis footprint.

Technical Specifications

Frequently Asked Questions

Q: How many module positions are available on the 2MLB-M12A main CPU base?

A: The base features slot capacity for up to 12 modules.

Q: What are the physical dimensions of the 2MLB-M12A base?

A: The module base measures 426 mm W x 98 mm H x 19 mm D.
