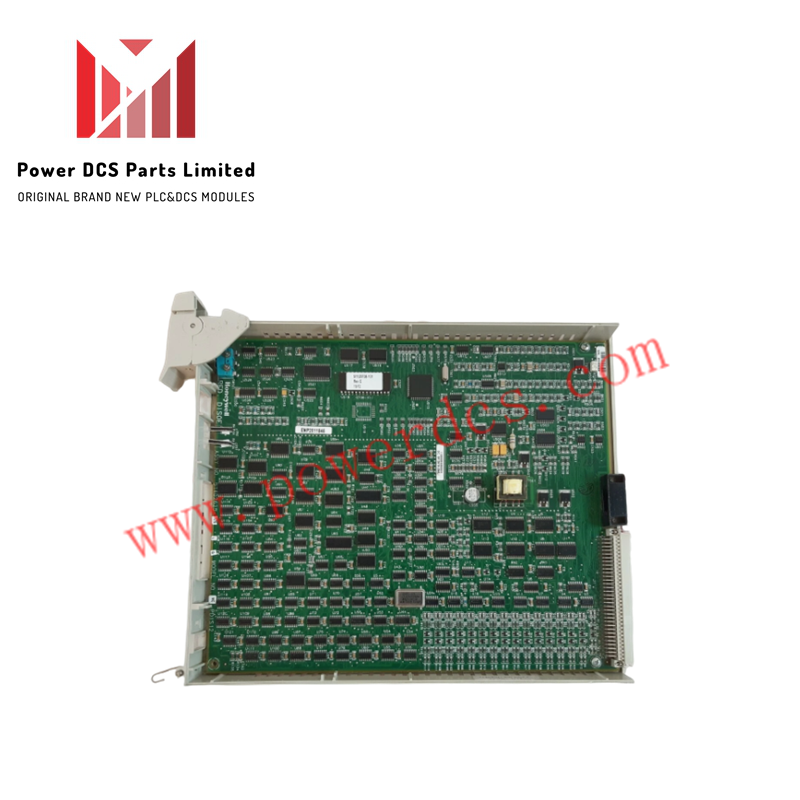

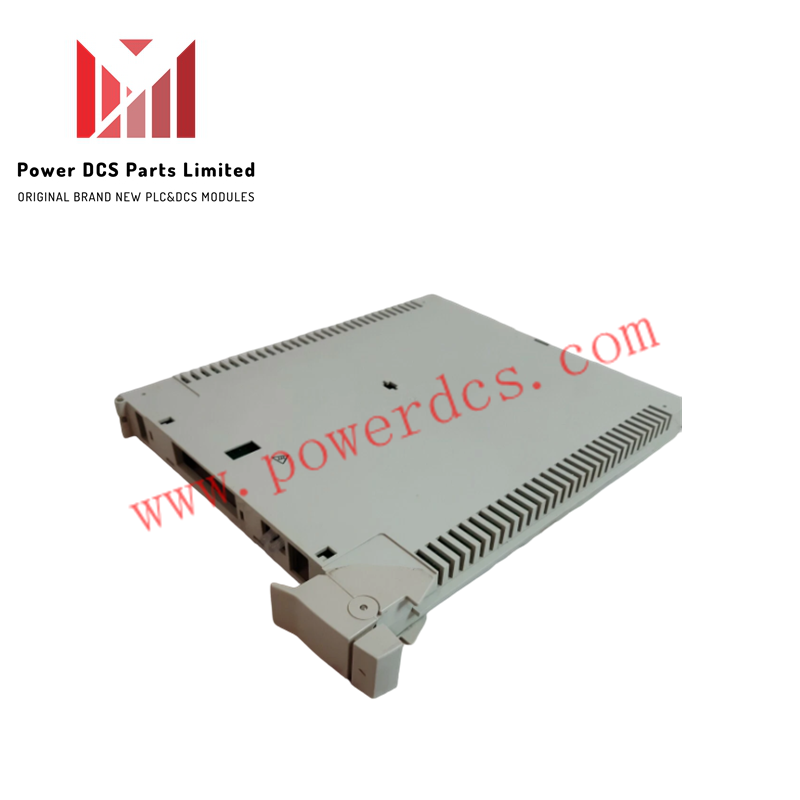

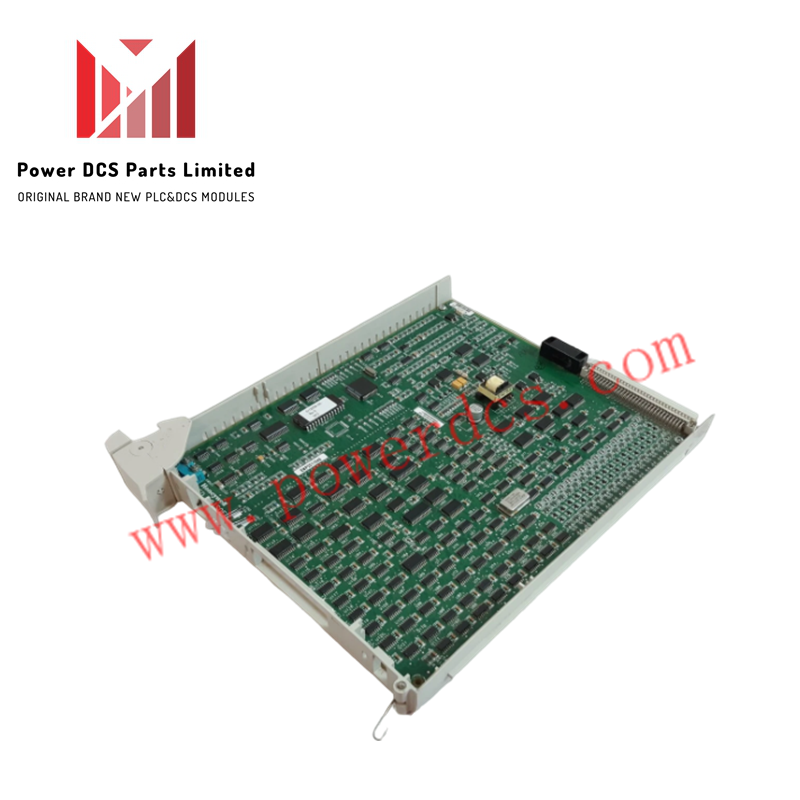

Honeywell MC-PDIS12 51402625-175/51120708-101 Digital Input SOE Card

The Honeywell 51402625-175, also cataloged as the MC-PDIS12 Digital Input SOE Card, operates as a dedicated hardware component for discrete digital signal acquisition and sequence of events time-stamping within Honeywell Experion PKS and TDC 3000 platforms. Configured with 32 isolated digital input channels, the card captures status transitions across breaker operations, emergency shutdown lines, and system interlocks to preserve event chronologies at the hardware level.

Hardware Specifications

DCS Process Control & Channel Isolation

The MC-PDIS12 Digital Input SOE Card incorporates channel-to-channel isolation across all 32 discrete inputs, preventing common-mode noise propagation and ground potential shifts between field switches and the system backplane bus. Designed for process control networks utilizing 4-20 mA HART loop protocol architectures and discrete alarm arrays, the board decouples field transients from high-speed digital logic.

By executing time-stamping directly at the I/O interface, the hardware eliminates backplane polling latency during high-density event cascades. The card maintains signal acquisition integrity across operating environments from 0 to 60 deg C, preserving sequence tracking accuracy during continuous control room operations.

Frequently Asked Questions

Q: How many digital input channels are available on the MC-PDIS12 card for event recording?

A: The board provides 32 isolated digital input channels configured for discrete field signal processing and sequence of events logging.

Q: Is the MC-PDIS12 card compatible with both Honeywell Experion and legacy TDC systems?

A: Yes. The board interfaces natively with both Honeywell Experion PKS and legacy TDC 3000 High-Performance Process Manager (HPM) architectures.

Q: What mechanisms prevent electrical noise from interfering with time-stamped inputs?

A: Galvanic channel-to-channel isolation blocks field-side electrical transients and common-mode noise from corrupting the time-stamping logic on the central backplane bus.

Field Installation Guidelines

• Backplane Chassis Seating: Slide the card evenly into the designated High-Performance Process Manager (HPM) chassis slot, verifying that backplane edge connectors mate fully before securing retaining latches.
• Shield Grounding Discipline: Terminate all discrete input cable shields to the main cabinet earth bus bar at a single point to preserve channel-to-channel isolation and prevent ground loops.
• Field Cable Routing: Maintain physical separation between incoming discrete 24 VDC switch field wiring and heavy AC power conductors to avoid electromagnetic coupling into the SOE channels.
