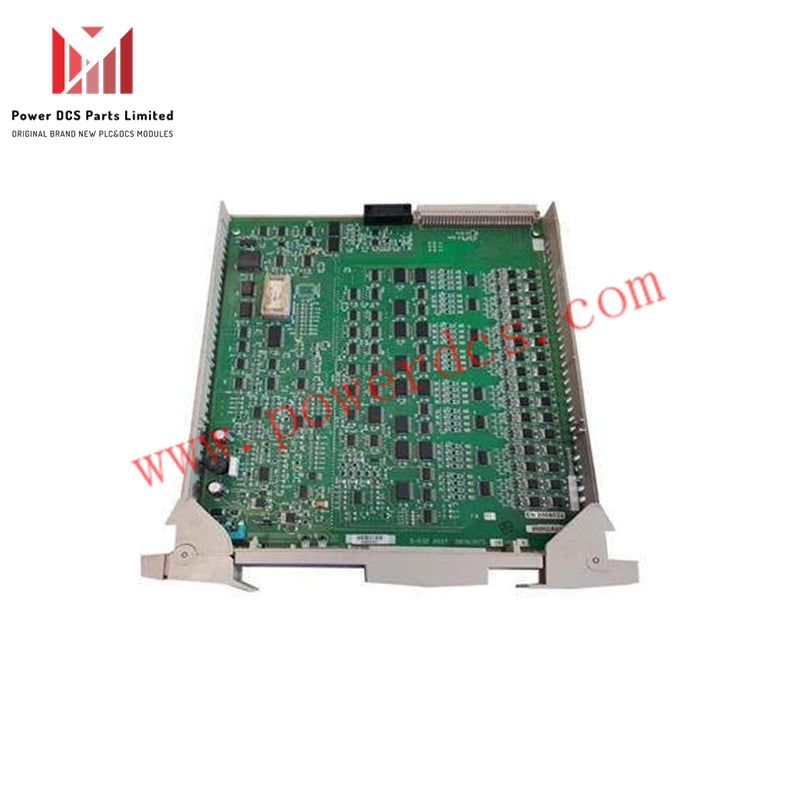

Honeywell MC-PDOY22 80363975-150 Digital Output Module

Product Model and Equivalent Model:

• Product Model: MC-PDOY22

• Equivalent Model: 80363975-150

Origin: United States

Product Features:

The MC-PDOY22 module is designed for seamless integration into control system architectures, delivering high-performance digital output functionality. Supporting a variety of output configurations, it effectively manages industrial process controls. Emphasizing reliability and accuracy, this module ensures strong signal transmission with a fast response time, making it ideal for critical operations.

Technical Specifications:

• Load Voltage Range: FTA OY22 supports 62–15–30 VDC

• Maximum Load Voltage: FTA OY23 supports 63–250 VAC / 125 VDC (32 output channels require 2 FTAs)

• Input Points: 16

• Output Channels: 32 channels

• Signal Compatibility: Supports 4–20 mA and 0–10 V signals

• Mounting Method: Panel mount

• Power Consumption: 10 W

• Weight: Approx. 0.28 kg

Applications:

This rugged, industrial-grade solution is suitable for high-reliability control systems and delivers precise digital output functionality across a wide range of industrial applications, including:

• Automated production lines

• Process control environments

Installation and Compatibility Guidelines:

• Ensure Compatibility: Before installation, verify that the module is compatible with the control system in use (such as PLCs), including communication interfaces, power requirements, and data transmission protocols.

• Select Appropriate Installation Environment: Install the module in a well-ventilated location, avoiding areas with high temperature, humidity, dust, or strong electromagnetic interference to prevent overheating or operational disturbances.

• Correct Module Installation: Follow device specifications and installation manuals carefully. Align module pins properly when inserting into slots to avoid incorrect connections or poor circuitry.

• Proper Grounding: Improper grounding can cause unstable control or equipment damage. Ensure grounding is done according to standards, using dedicated ground wires connected to grounding bars to reduce electromagnetic interference and enhance system safety.
