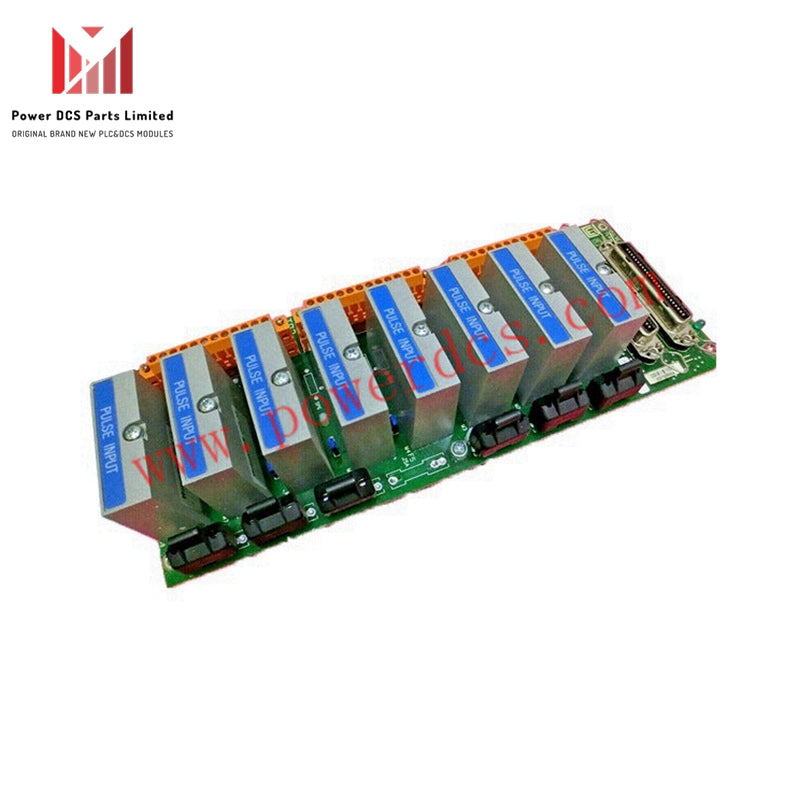

Honeywell MC-TPIX12 51304084-175 Pulse Input Module

Honeywell MC-TPIX12 Pulse Input Module

Product Code: MC-TPIX12
Part Number: 51304084-175
Module Type: Pulse Input Module
Manufacturer: Honeywell

Technical Specifications:

• Input Capacity: 12 Input Channels

• Signal Range: 0 to 20 mA

• Sampling Rate: 1000 Hz

• Power Supply: 12 to 24V DC

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -40°C to +85°C

• Dimensions: 75 mm × 75 mm × 30 mm

• Weight: 0.15 kg

• Certifications: UL, CE, CSA

Product Overview:

The Honeywell MC-TPIX12 (51304084-175) is a high-performance Pulse Input Module designed specifically for industrial automation systems. It provides accurate and reliable pulse signal processing, making it a critical component for precise timing and control in a broad range of high-speed industrial applications.

Key Features:

• High-Speed Signal Processing: Supports pulse frequencies up to 1 MHz, ideal for time-sensitive and high-resolution applications.

• 12 Independent Channels: Simultaneously manages multiple pulse inputs, improving efficiency and reducing hardware requirements.

• Wide Signal and Power Compatibility: Operates with 0–20 mA input signals and a 12–24V DC power supply for flexible deployment.

• Compact Design: Small footprint allows for easy integration into existing control systems without occupying excess space.

• Industrial-Grade Reliability: Engineered to operate reliably across wide temperature extremes and in challenging industrial environments.

• Safety & Compliance: Certified by UL, CE, and CSA, ensuring it meets global safety and performance standards.

Applications:

• Industrial Automation

• High-Speed Counting Systems

• Flow Measurement & Monitoring

• Machine Control & Feedback Loops

• Motion Control Systems

• SCADA and PLC-Based Systems

Conclusion:

The Honeywell MC-TPIX12 51304084-175 Pulse Input Module is a powerful and reliable solution for precision pulse signal processing in industrial settings. With its high input capacity, compact design, and certified safety compliance, it is ideal for applications demanding accuracy, responsiveness, and durability. Whether you're modernizing an existing system or building a new one, this module delivers the performance and reliability needed for advanced control tasks.
