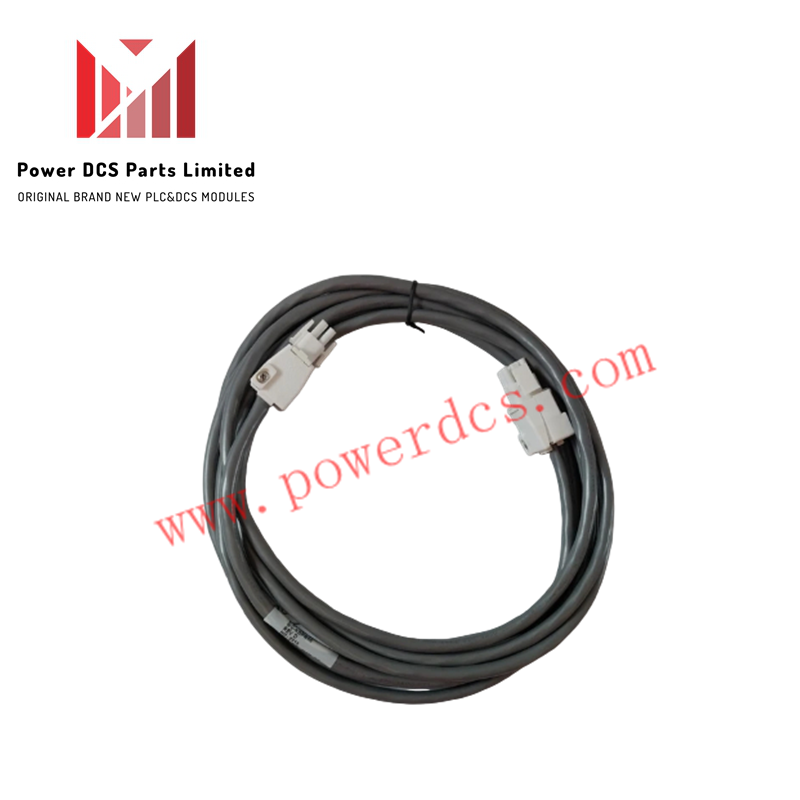

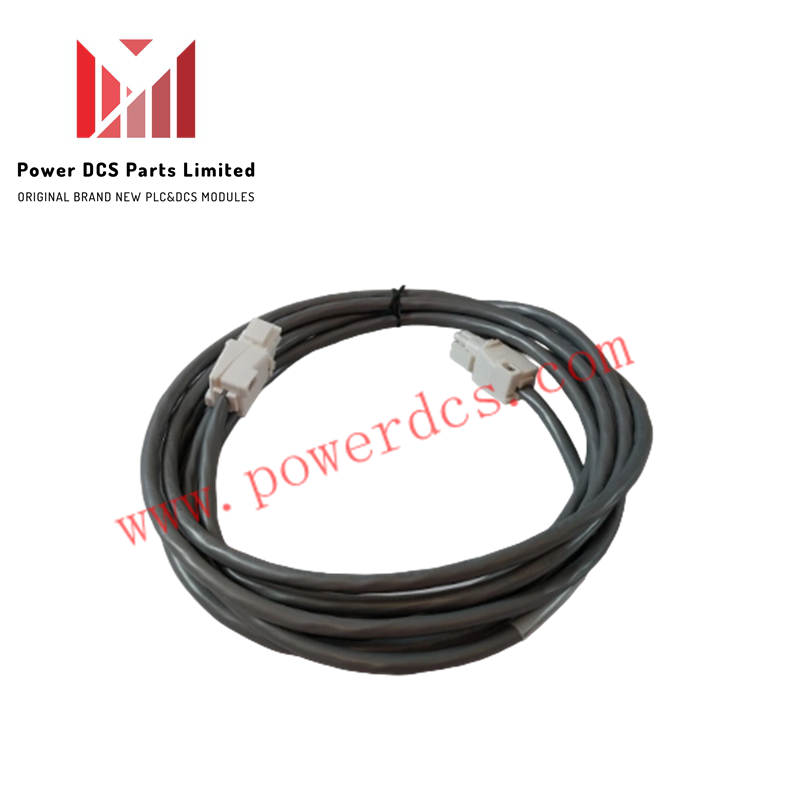

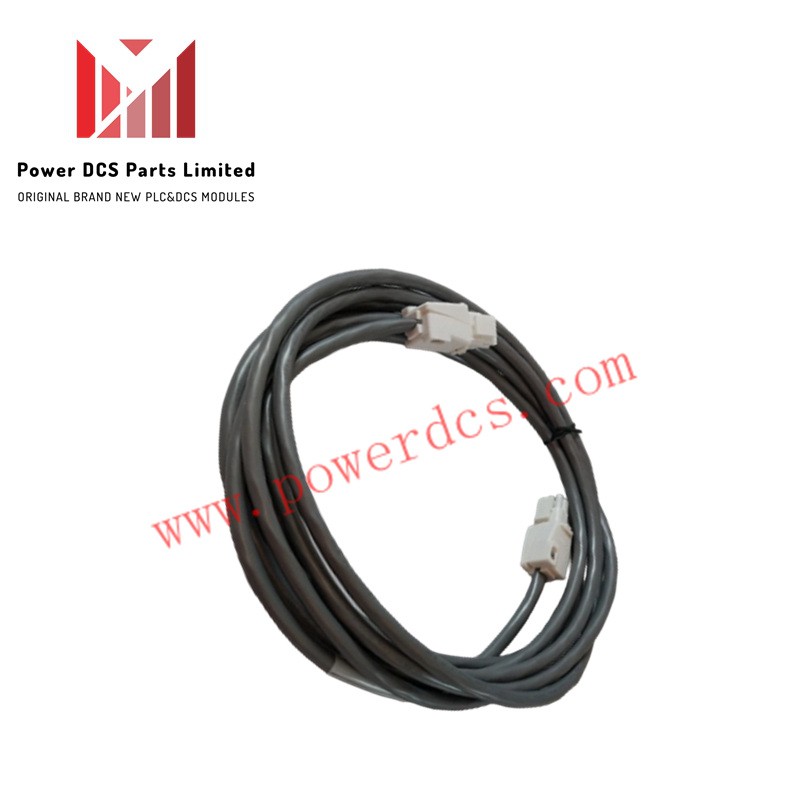

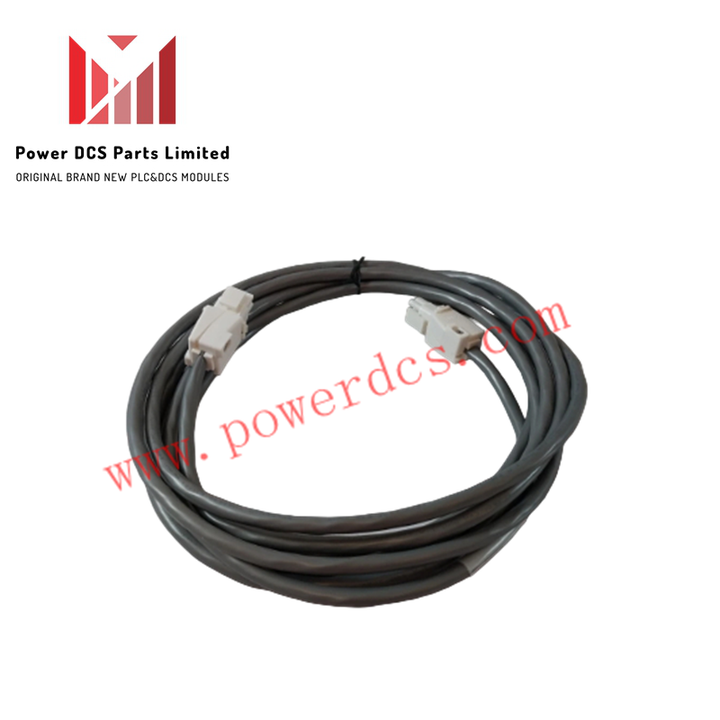

Honeywell MU-KGPR05 51109620-195 Control Cable Assembly

The Honeywell MU-KGPR05, also cataloged as the MU-KGPR05 Control Cable Assembly, operates as a dedicated hardware component for signal interconnection and physical signal routing within Honeywell TDC 3000 and Experion PKS platforms. It routes discrete and analog signal paths between control modules and field termination assemblies across the system hardware interface.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The MU-KGPR05 control cable assembly maintains continuous electrical continuity and low-attenuation signal paths between host I/O modules and termination assemblies. Built to support multi-channel DCS wiring, its internal conductor layout and high-density shielding preserve channel-to-channel isolation across shared cable trays. This interference suppression prevents cross-talk and ensures distortion-free transmission of 4-20 mA HART loop protocol telemetry and discrete control signals between field interface cards and logic processors.

Frequently Asked Questions

Q: Does the Honeywell MU-KGPR05 require an external power supply for operation?

A: No. The MU-KGPR05 functions as a passive cable assembly with no internal active electronics and zero power consumption.

Q: Can the MU-KGPR05 cable shield be grounded at both ends of the run?

A: No. The cable shielding layer must be grounded at a single reference point according to Honeywell system grounding standards to prevent ground loop currents while maintaining noise suppression.

Q: Are the connectors on the MU-KGPR05 compatible with standard third-party terminal blocks?

A: The assembly uses dedicated Honeywell multi-pin industrial connectors designed specifically for direct mating with Experion PKS and TDC 3000 system backplanes and termination cards.

Field Installation Guidelines

1. Inspect the multi-pin connector pins and shell housing for physical damage prior to installation.
2. Route the control cable assembly through dedicated low-voltage cable trays separated from high-voltage AC power lines to minimize EMI.
3. Observe specified minimum bend radius limits during routing to avoid internal conductor deformation or shield degradation.
4. Ensure connector locking screws are fully seated and hand-tightened to maintain constant low-resistance contact.
5. Terminate the overall cable shield braid to the designated cabinet ground bar at the system enclosure end only.
