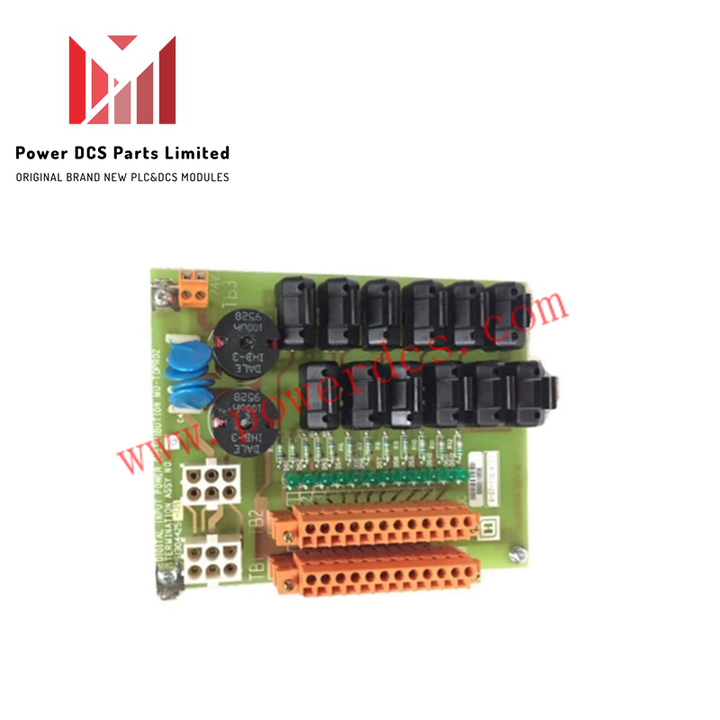

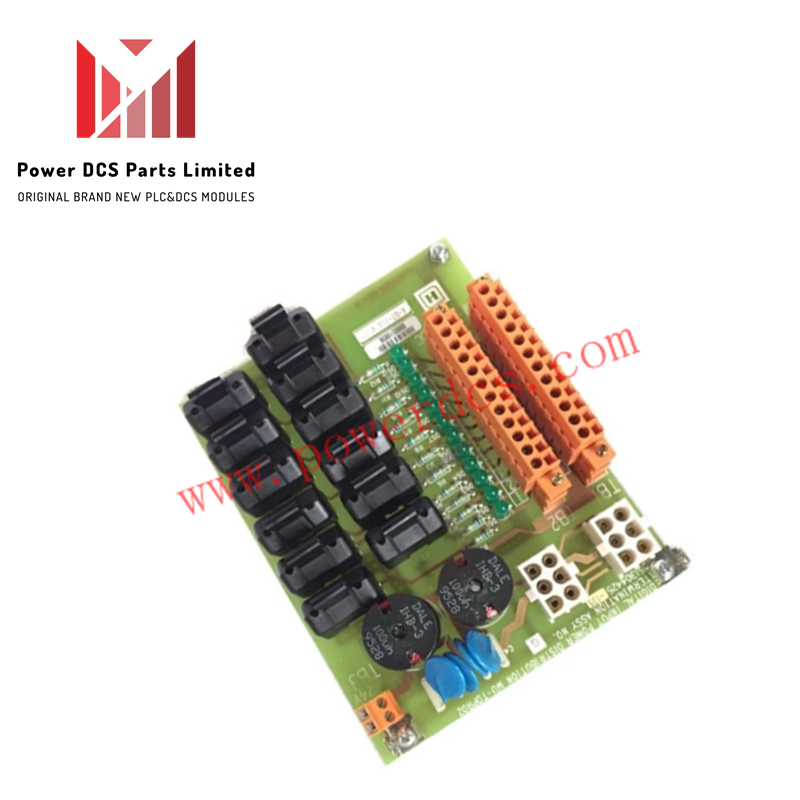

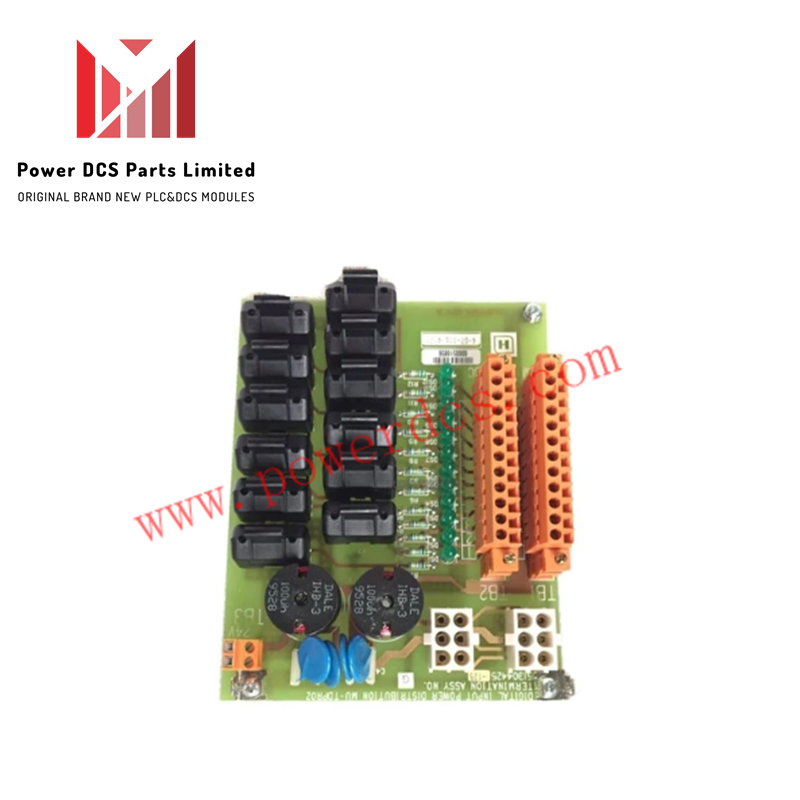

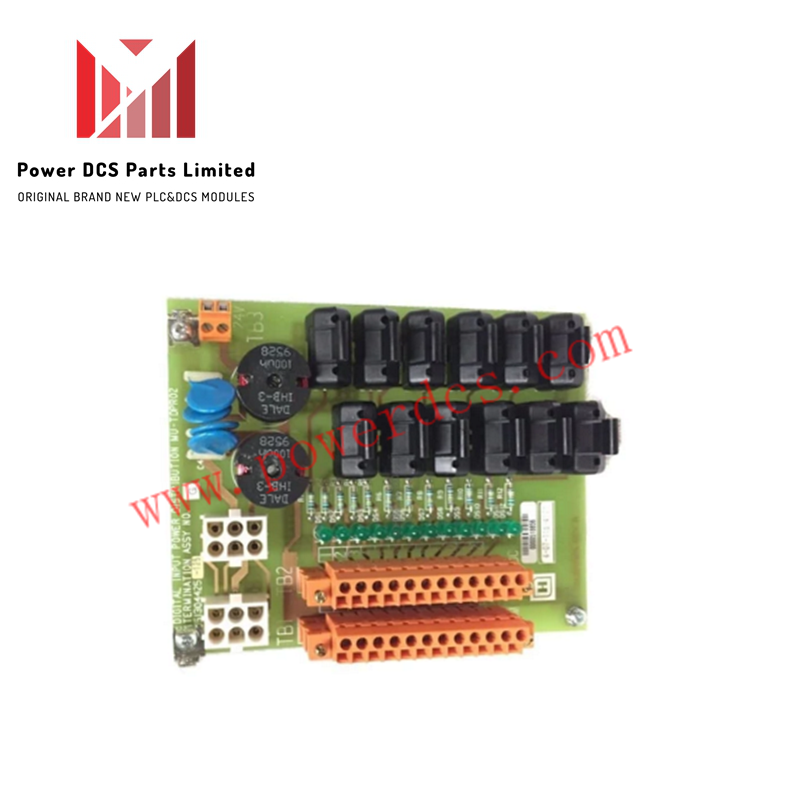

Honeywell MU-TDPR01 Digital Input Power Distribution Assembly

The Honeywell MU-TDPR01, also cataloged as the MU-TDPR01 Digital Input Field Termination Assembly, operates as a dedicated hardware component for power routing and signal termination within Honeywell Experion PKS platforms. It routes 24 VDC field excitation power and terminates discrete signal paths across 16 digital input channels.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The MU-TDPR01 provides systematic signal referencing and power distribution to support 16 discrete input field circuits. Built for integration alongside high-density DCS racks and 4-20 mA HART loop protocol architectures, the passive distribution assembly isolates power distribution buses to suppress transient noise. High-density field terminals route 24 VDC excitation directly to field contacts while maintaining stable channel-to-channel isolation and signal integrity to host control hardware.

Frequently Asked Questions

Q: Does the MU-TDPR01 require dedicated active power supply inputs for internal processing?

A: No. The MU-TDPR01 functions as a passive power distribution assembly without active processing logic, consuming less than 2 W typical to distribute field loop excitation.

Q: Can field wiring on the MU-TDPR01 be modified while the system backplane remains powered?

A: De-energizing the corresponding field power supply circuits or I/O rack is required prior to connecting or disconnecting field wires to prevent accidental short circuits across terminal points.

Field Installation Guidelines

1. Mount the assembly firmly onto panel plates inside a clean, dry control enclosure protected from industrial vibration.
2. De-energize connected field power supplies and I/O racks prior to servicing or terminating field wiring.
3. Crimp conductors with appropriate wire ferrules before securing them into terminal blocks to ensure solid mechanical and low-resistance electrical connections.
4. Route field discrete input lines in separate wiring ducts away from high-voltage AC power cabling to suppress EMI.
5. Connect all common signal return paths and terminal shield points directly to the cabinet ground bar according to Experion wiring standards.
