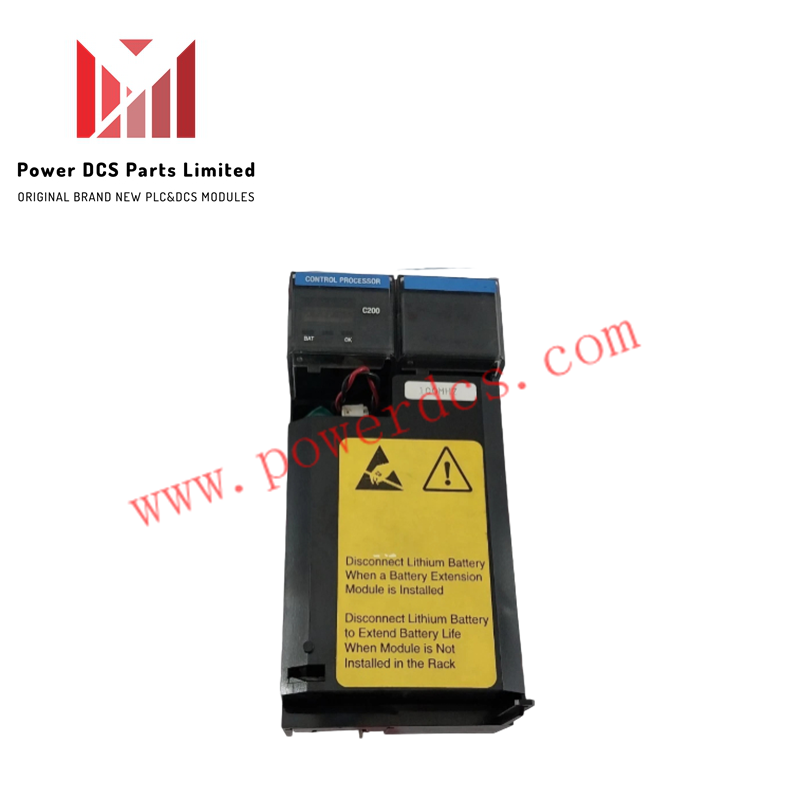

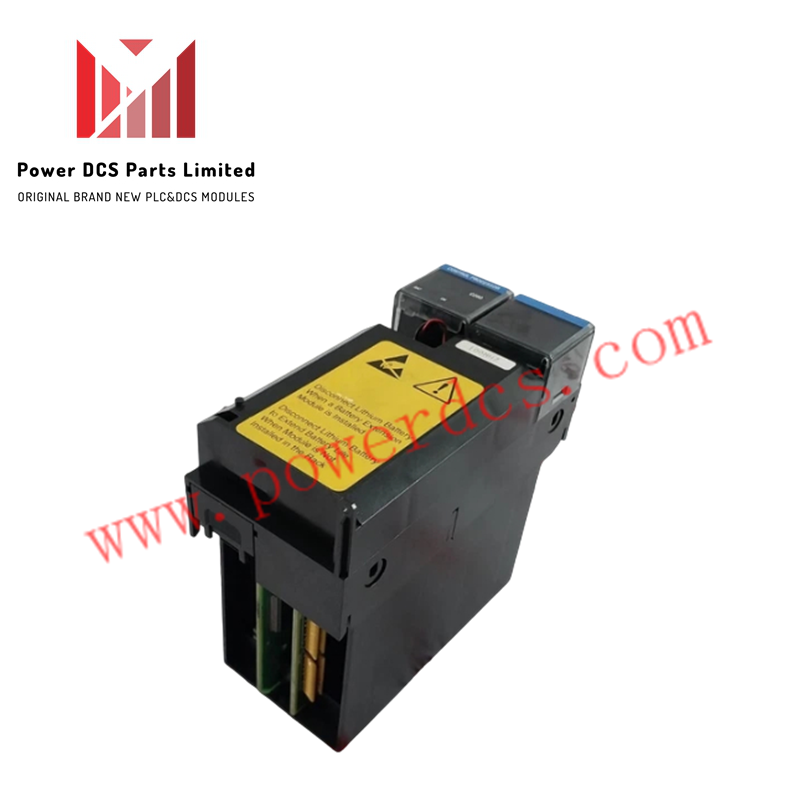

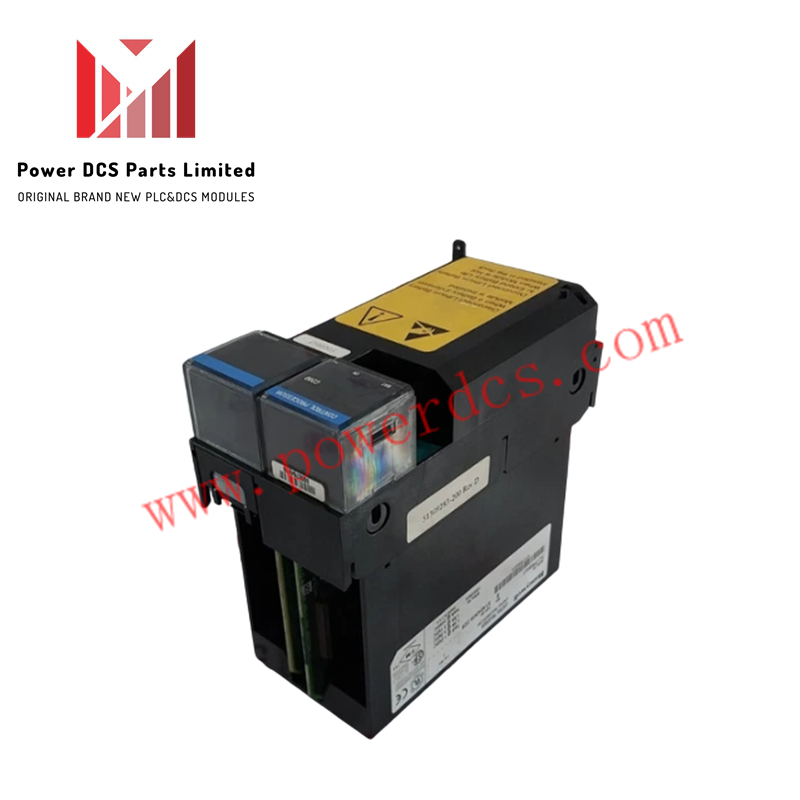

Honeywell TC-PRS021 Control Processor Module

The Honeywell TC-PRS021 is a control processor module designed for MasterLogic-200 PLC systems and Experion network environments. It executes control logic, interlock functions, and sequential tasks to coordinate field devices and system operations across industrial automation architectures.

Communication Interfaces and Multi-Protocol Integration

The module provides extensive serial and network connectivity to interface with diverse field equipment and control networks. Integrated communication options include RS232, RS422, RS485, and Ethernet (supporting wired and wireless connections), enabling flexible multi-protocol data exchange with supervisory systems and industrial field devices.

Power Parameters and Electrical Protection

Operating across an AC voltage range of 110 V to 380 V at 5 Hz to 50 Hz, the unit draws an input current between 1 A and 30 A while supporting an output current of 5 A to 40 A. Power consumption ranges from 1 W to 2 W in standby mode up to 5 W to 130 W under full operating load. Built-in protective mechanisms include overcurrent protection, overvoltage protection, and diagnostic indicators for environmental faults.

Frequently Asked Questions

Q: What communication interfaces are integrated into the TC-PRS021 control processor?

A: The TC-PRS021 includes RS232, RS422, RS485, and Ethernet ports supporting both wired and wireless multi-protocol communications.

Q: What are the input operating voltage and frequency limits for the TC-PRS021?

A: The module accepts an operating voltage range of 110 V to 380 V across a frequency range of 5 Hz to 50 Hz.

Q: What diagnostic and protection features are provided on the module?

A: It includes onboard overcurrent protection, overvoltage protection, and visual fault indicators for environmental diagnostics.
