IC693CHS397 CPU Baseplate GE Fanuc

Description

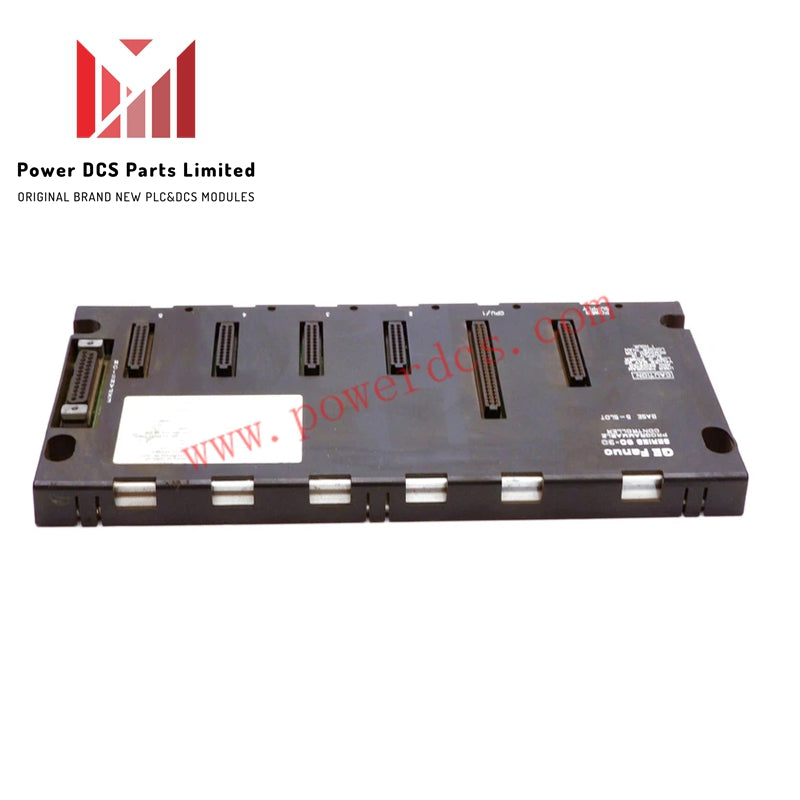

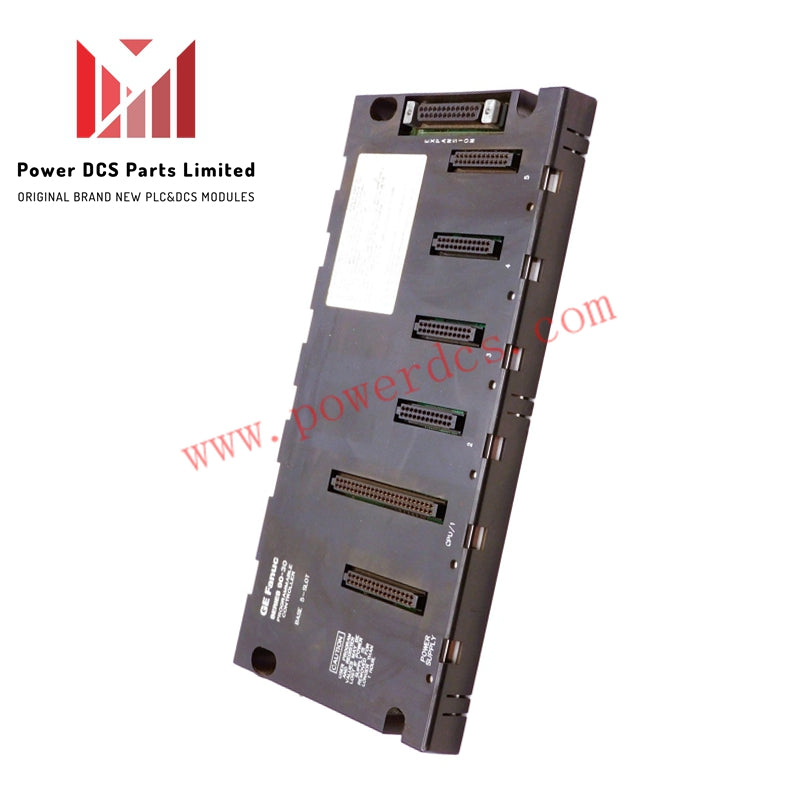

The GE Fanuc IC693CHS397 CPU Baseplate is a 5-slot baseplate designed for the Series 90-30 system. It facilitates integration with CPU, I/O, and option modules and supports expansion capabilities, enabling complex control systems.

Key Features

• Product Type: CPU Baseplate

• Part Number: IC693CHS397

• Series: Series 90-30

• Slot Configuration: 5 slots (1 for CPU, 4 for I/O/option modules)

• Expansion Support: Maximum expansion cable length of 50 feet (15 meters)

• Mounting: Panel mounting

Electrical Specifications

• Power Supply Slot: 1

• I/O Slots: 4

• Expansion Connector Type: 25-Pin D-Type Female Connector

• Bus Voltage: +5VDC

• Current Load: 270 mA

• Internal Power Consumption: 270 mA at 5 VDC

Installation and Compatibility

• Rack Address: Rack 0

• Expansion Slot: 25-Pin D-shell Female Connector

• Maximum Expansion Cable Length: 50 feet (15 meters)

• Mounting Type: Panel Mounting

• Rack Installation: Supports installation in Rack 0
