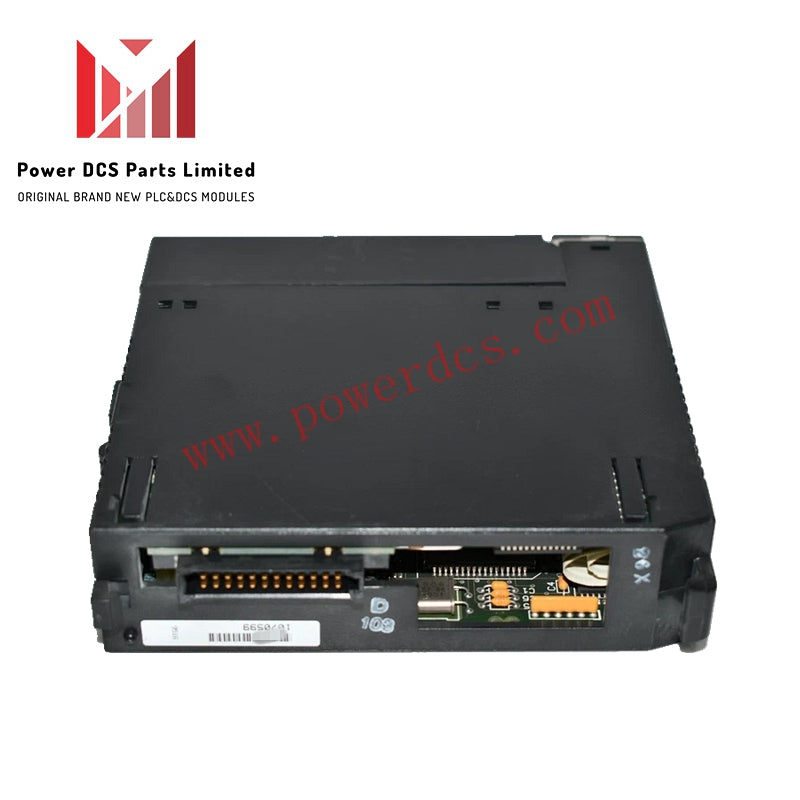

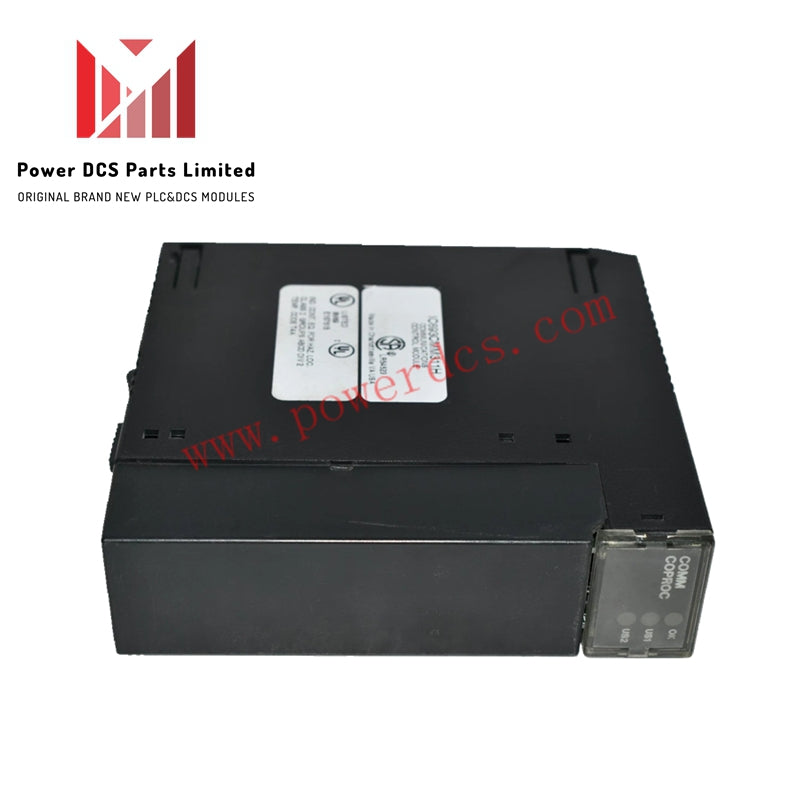

IC693CMM311 GE Fanuc Communication Coprocessor Module

Description

The GE Fanuc IC693CMM311 Communication Coprocessor Module is designed for use with modular GE Series 90-30 CPUs. It supports SNP and Modbus RTU protocols and provides communication capabilities for system integration. The module includes two serial ports and can be mounted on the Series 90-30 CPU baseplate.

Key Features

• Product Type: Communication Coprocessor Module

• Compatible Devices: Modular GE Series 90-30 CPUs

• Supported Protocols: SNP, Modbus RTU, CMM

• Slot Width: Single slot

• Serial Ports: 2

• Mounting: Baseplate mounted

• Mounting Location: Series 90-30 CPU baseplate

• RS-232 Applications: Supported

• RS-485 Applications: Supported (Port 2 only)

• Status LED Indicators: Module OK, PORT1, PORT2, US1, US2

Electrical and Connection Specifications

• Port 1: RS232

• Port 2: RS232 / RS422 / RS485

Installation and Compatibility

• Slot Assignment: Can be installed in any slot except CPU slot

• Module Location: CPU baseplate only
