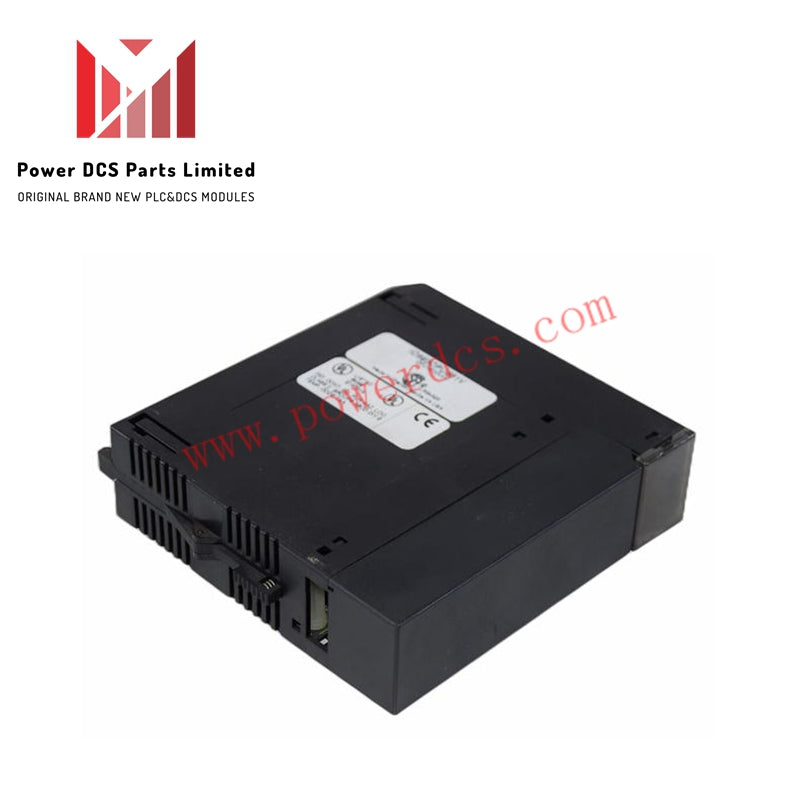

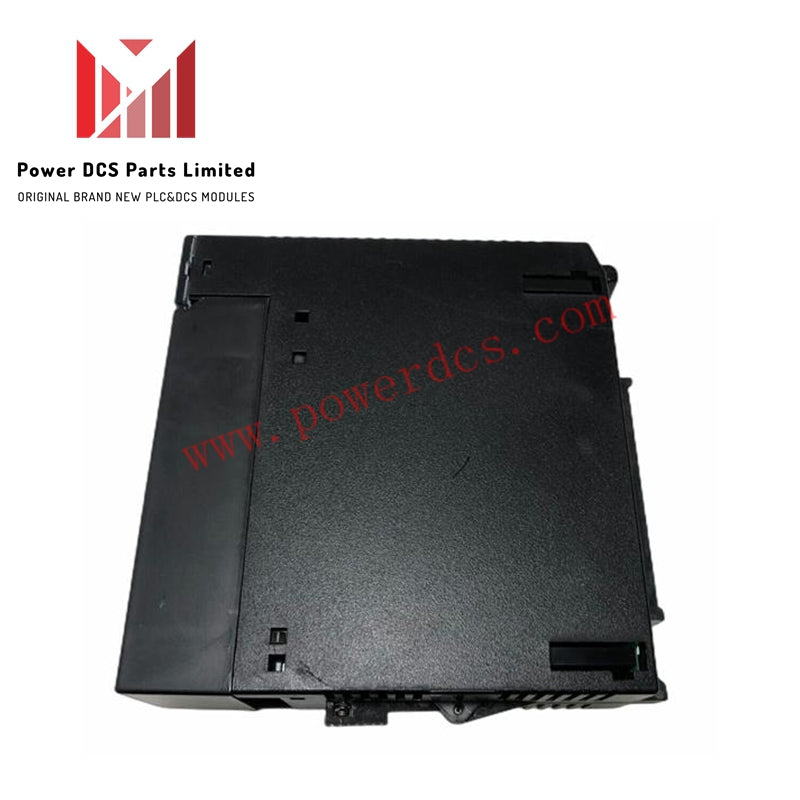

IC693CPU331 Modular CPU GE Fanuc

Description

The IC693CPU331 is a Modular CPU from GE Fanuc, part of the Series 90-30. This CPU module offers powerful processing capabilities with 16 KB of user memory and supports expansion for scalability in industrial automation systems. It is compatible with GE Fanuc 90-30 PLCs and provides solid performance for a wide range of control applications.

Key Features

• Part Number: IC693CPU331

• Product Type: CPU Module

• Processor Type: 80188

• Clock Speed: 10 MHz

• User Memory: 16 Kbytes

• Expandable: Yes

• Serial Port: 1 (supports SNP slave and SNP-X slave protocols)

• Discrete Inputs: 512

• Discrete Outputs: 512

• Analog Inputs: 128 Words

• Analog Outputs: 64 Words

• Discrete Input Points (%I): 512

• Discrete Output Points (%Q): 512

• Timers / Counters: 680

• Shift Registers: Yes

• Current Load: 350 mA

Performance Specifications

• Typical Scan Rate: 0.4 ms per 1K of Boolean logic

• Operating Temperature Range: 32°F to 140°F (0°C to 60°C)
