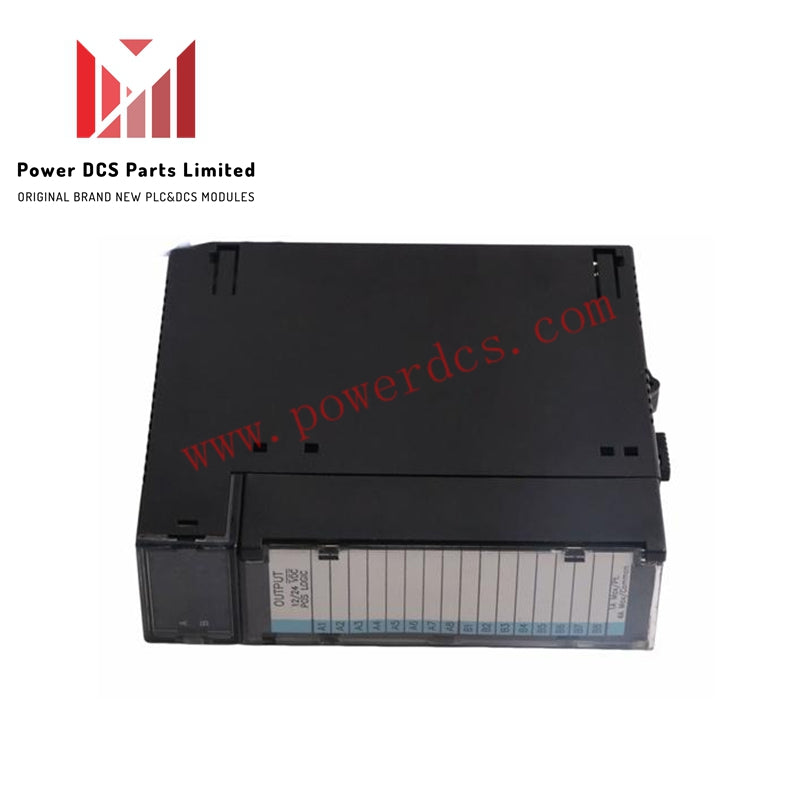

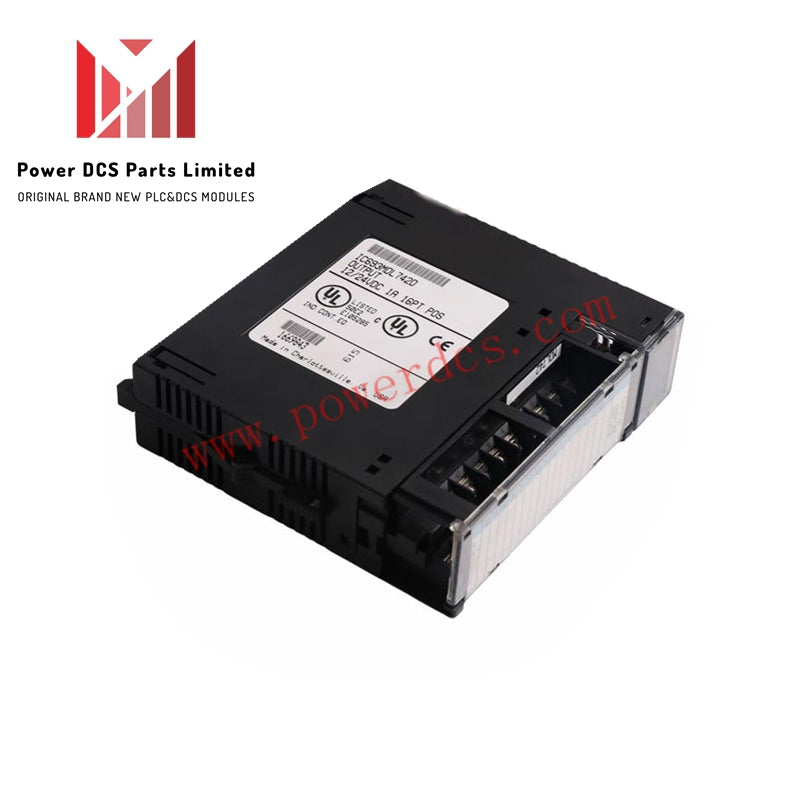

IC693MDL742 GE Fanuc Discrete Output Module

Description

The IC693MDL742 Discrete Output Module from GE Fanuc is designed for industrial automation systems, offering reliable digital I/O functionality. It supports up to 16 output channels and integrates Electronic Short Circuit Protection (ESCP) for added safety and protection.

Specifications

• Part Number: IC693MDL742

• Product Type: Discrete Output Module

• Series: Series 90-30

• Compatibility: GE Fanuc 90-30

• Number of Channels: 16

• Number of Output Groups: 2

• Channels per Group: 8

• Rated Voltage: 12/24 VDC

• Nominal Input Voltage: 12/24 VDC

• Nominal Output Voltage: 12/24 VDC

• Output Signal Range: 12 to 24 VDC (+20%, -15%)

• Maximum Off Response Time: 2 ms

• Maximum On Response Time: 2 ms

• Output Current:

• 1.0 A per point

• 4.0 A per group at 50°C

• 3.0 A per group at 60°C

• Peak Output Voltage Drop: 1.2 V

• Peak Module Current Draw: 130 mA (all outputs active)

• Isolation:

• 1500 V between field side and logic side

• 500 V between groups

• Off-State Leakage: 1 mA maximum

• Relative Humidity: 5 to 95%
