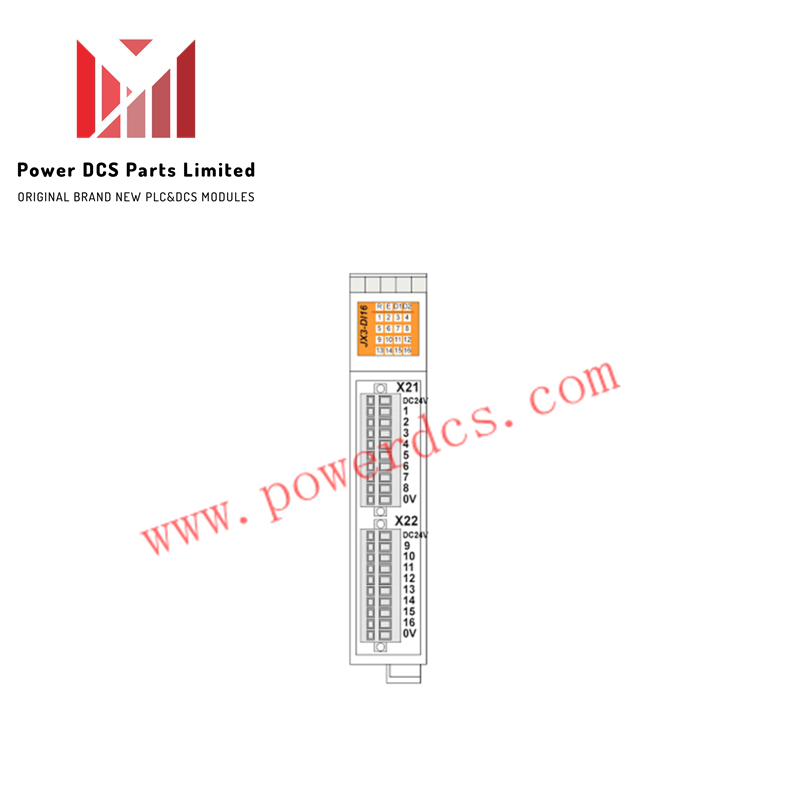

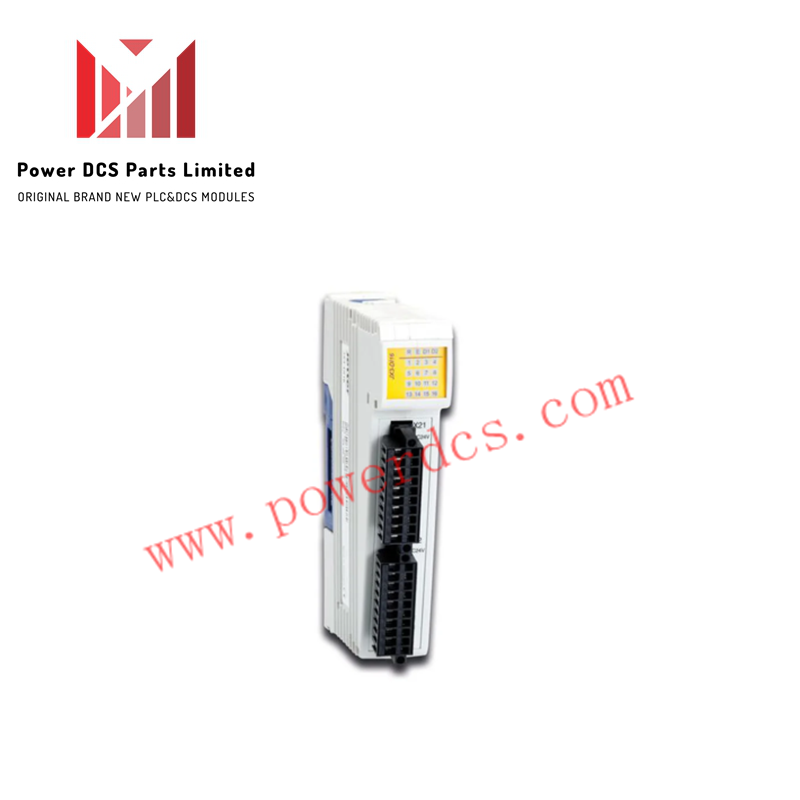

Jetter JX3-DI16_PI Expansion Modules

Description

The JETTER JX3-DI16_PI is a compact digital input expansion module designed for use with JX3 bus systems and JetControl controllers. It provides reliable signal acquisition for industrial automation tasks.

Specifications

• Model: JX3-DI16_PI

• Manufacturer: Jetter

• Type: Digital Input Expansion Module

• Digital Inputs: 16 channels

• Input Type: 24 VDC, sink connection

• Connection Technology: Push-in terminals (PI version)

• Signal Filtering: Integrated digital input filters

• Pulse Extension: Programmable pulse stretching function

• Counting Function: Supports basic counting applications

• Status Indicators: LED indicators for power and communication

• Mounting: DIN rail

• Operating Voltage: 24 VDC

• Protection Class: IP20

• Dimensions: Approx. 100 mm × 70 mm × 25 mm

• Weight: Approx. 150 g

Features

• 16 Digital Inputs: Enables connection of multiple sensors or switches

• Push-In Terminals: Simplifies field wiring and reduces installation time

• Signal Conditioning: Built-in filters improve input signal reliability

• Pulse Stretching: Extends short pulses for accurate detection

• Diagnostic LEDs: Visual feedback for power and communication status

• Modular Integration: Compatible with all JX3 bus heads and JetControl-300 series

• Compact Design: Saves space in control cabinets and supports scalable systems
