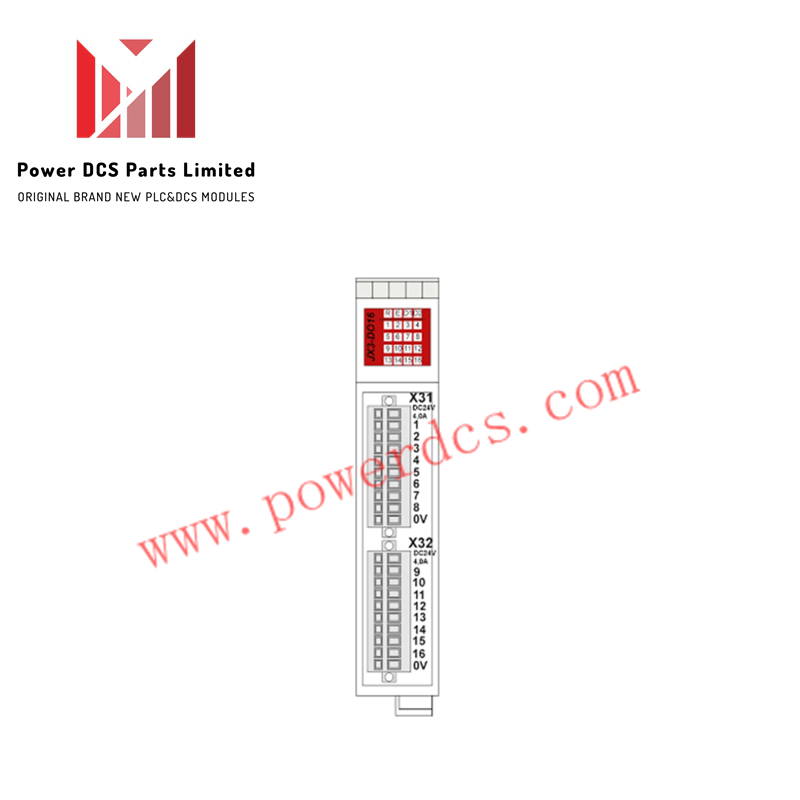

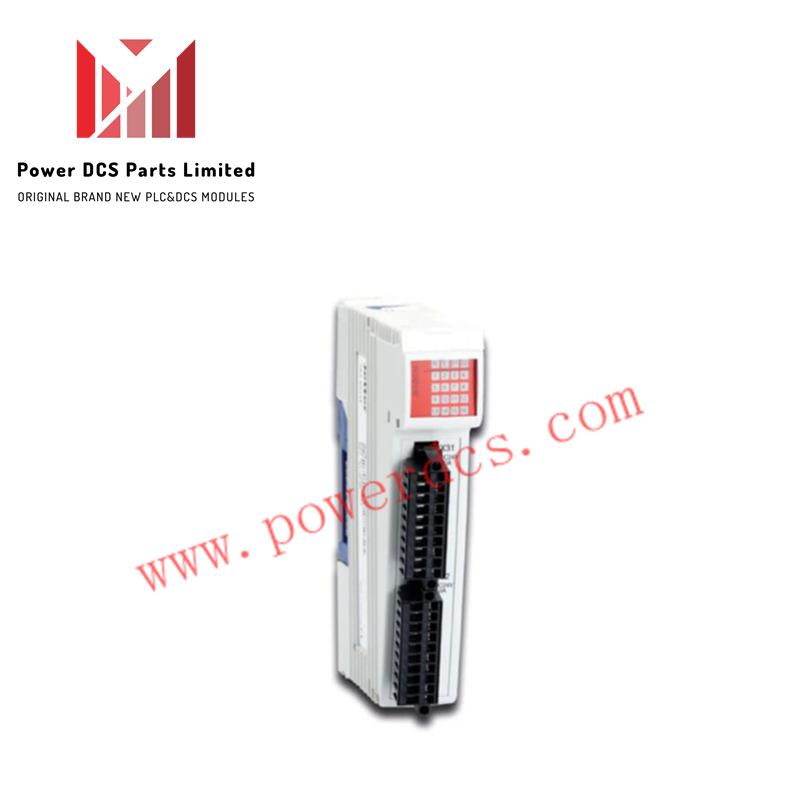

Jetter JX3-DO16_PI Expansion Modules

Description

The JETTER JX3-DO16_PI is a compact digital output module designed for JX3 bus systems. It provides 16 reliable 24VDC outputs with push-in wiring and integrated protection for industrial automation.

Specifications

• Model: JX3-DO16_PI

• Manufacturer: Jetter

• Type: Digital Output Expansion Module

• Digital Outputs: 16 channels

• Output Type: 24 VDC, sourcing

• Connection Technology: Push-in terminals (PI version)

• Output Current: Max. 0.5 A per channel

• Protection Features: Short-circuit and overload protection

• Status Indicators: LED indicators for each output

• Mounting: DIN rail

• Operating Voltage: 24 VDC

• Protection Class: IP20

• Dimensions: Approx. 100 mm × 70 mm × 25 mm

• Weight: Approx. 150 g

Features

• 16 Digital Outputs: Controls actuators, relays, and indicators with precision

• Push-In Terminals: Fast and secure wiring for field installations

• Integrated Protection: Prevents damage from short circuits and overloads

• LED Diagnostics: Visual status for each output channel

• Modular Design: Seamlessly integrates with JX3 bus heads and JetControl systems

• Compact Footprint: Saves space in control cabinets

• Reliable Switching: Ensures consistent performance in industrial environments
