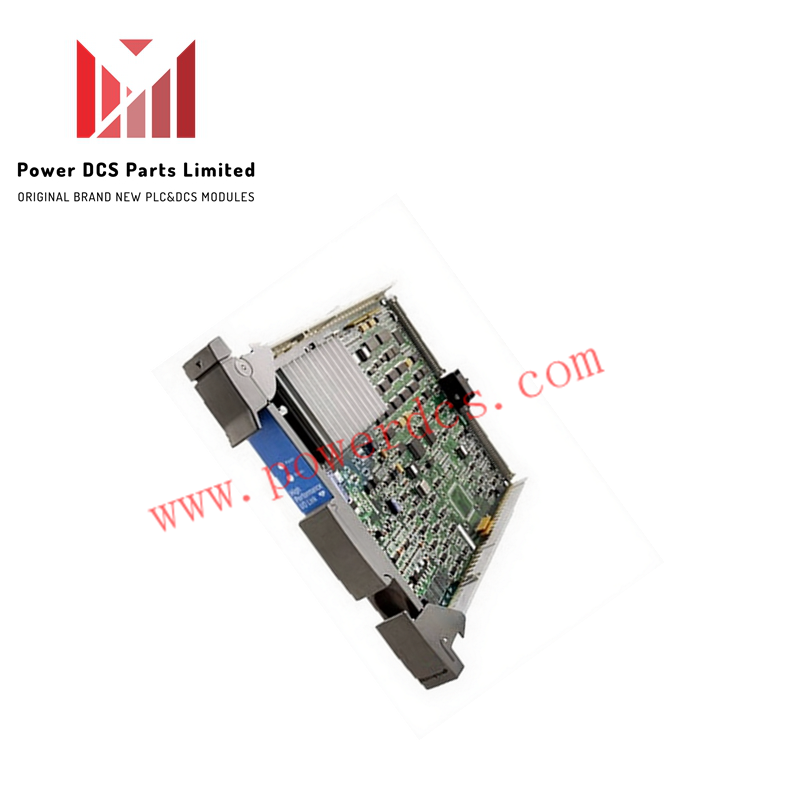

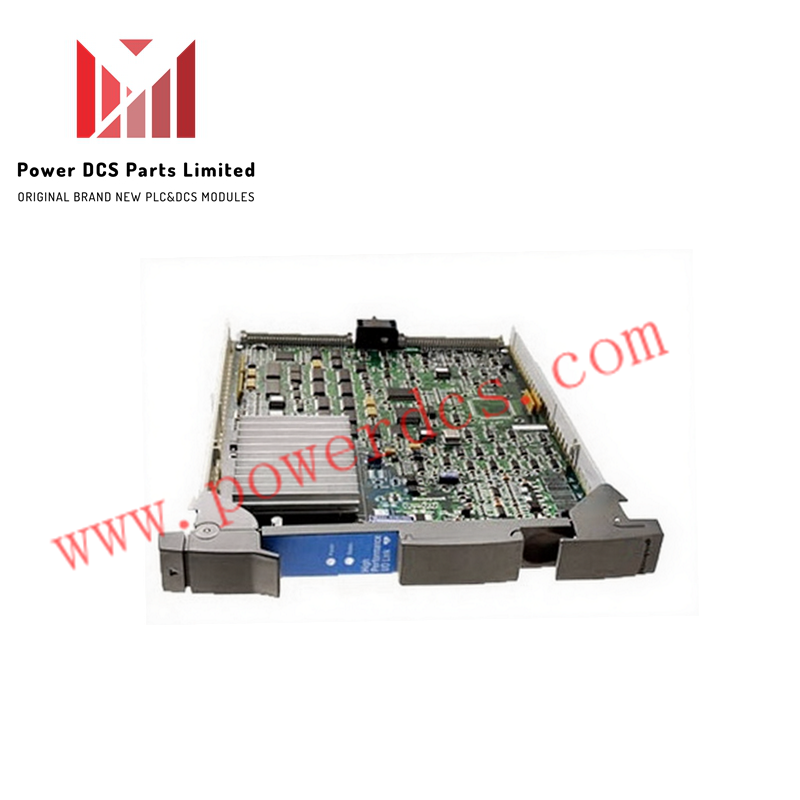

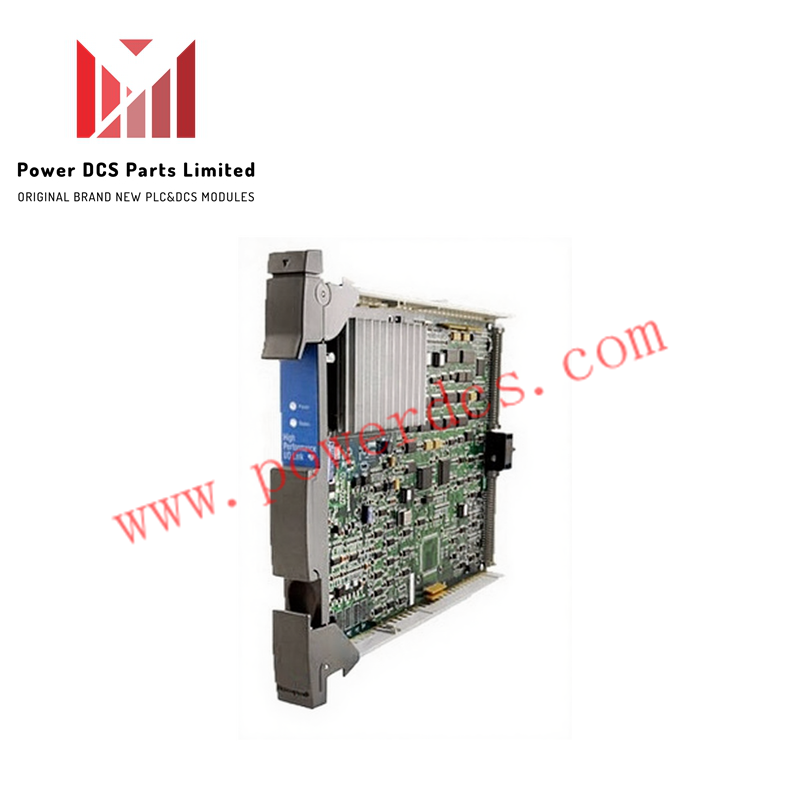

PELCO CM9750-KBDVS-X DCS Module

Description

The PELCO CM9750-KBDVS-X is a high-performance DCS module designed for advanced control and monitoring in industrial automation systems. It supports robust logic programming and integrates seamlessly with Honeywell platforms.

Specifications

• Manufacturer: PELCO / Honeywell

• Model Number: CM9750-KBDVS-X

• Product Type: DCS Control Module

• Control Structure: Supports both redundant and non-redundant configurations

• I/O Capacity: Up to 1920 remote I/O points

• Analog Inputs: 480 universal channels, 960 high-level analog inputs

• Digital I/O: On/off LED indicators for status feedback

• PID Control: Auto-tuning PID functionality included

• Logic Programming: Boolean logic with over 100 robust function blocks

• Math Functions: Advanced floating-point operations supported

• Alarm Handling: Extensive alarm and event monitoring capabilities

• Module Count: Supports 400, 2000, or 5000 graphical function blocks

• Scan Rate: Fast scan capability at 27 ms

• Hot-Swap Support: Live I/O replacement without system shutdown

• Interface Options: Experion Station or Internet Explorer for remote access

Features

• Flexible Configuration: Offers fixed or rotational server connections for operator stations

• High I/O Density: Manages thousands of I/O points for complex process control

• Graphical Programming: Supports intuitive module configuration via graphical interface

• Redundancy Ready: Ensures system reliability with redundant module support

• Remote Monitoring: Enables full plant visibility through integrated video and control interface

• Universal Compatibility: Works with Honeywell DVM and Experion HS systems

• Efficient Licensing: Rotational connection model optimizes license usage

• Industrial Grade: Built for demanding environments like oil refining, mining, and manufacturing
