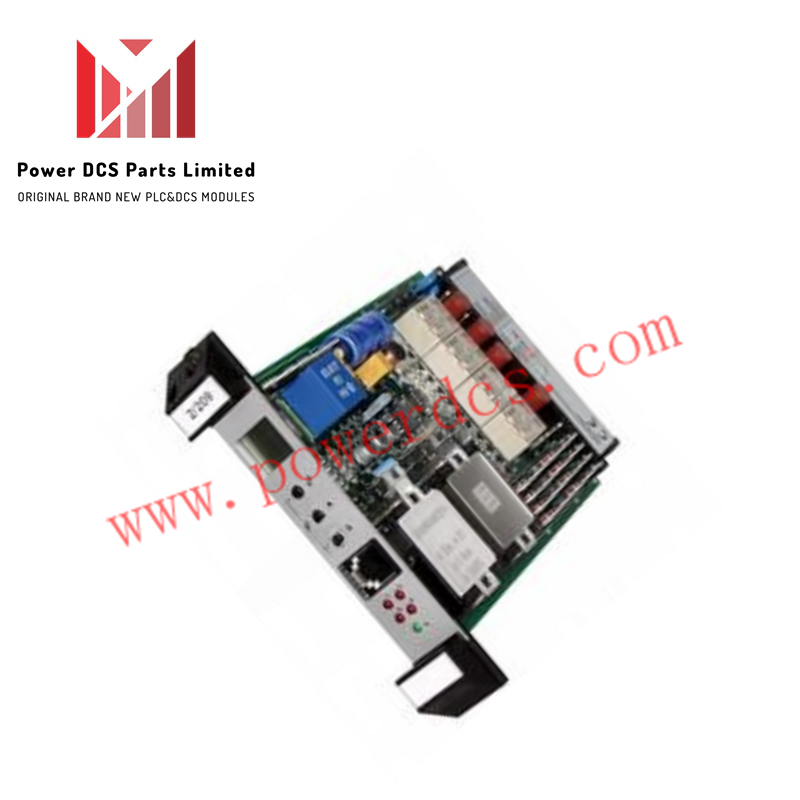

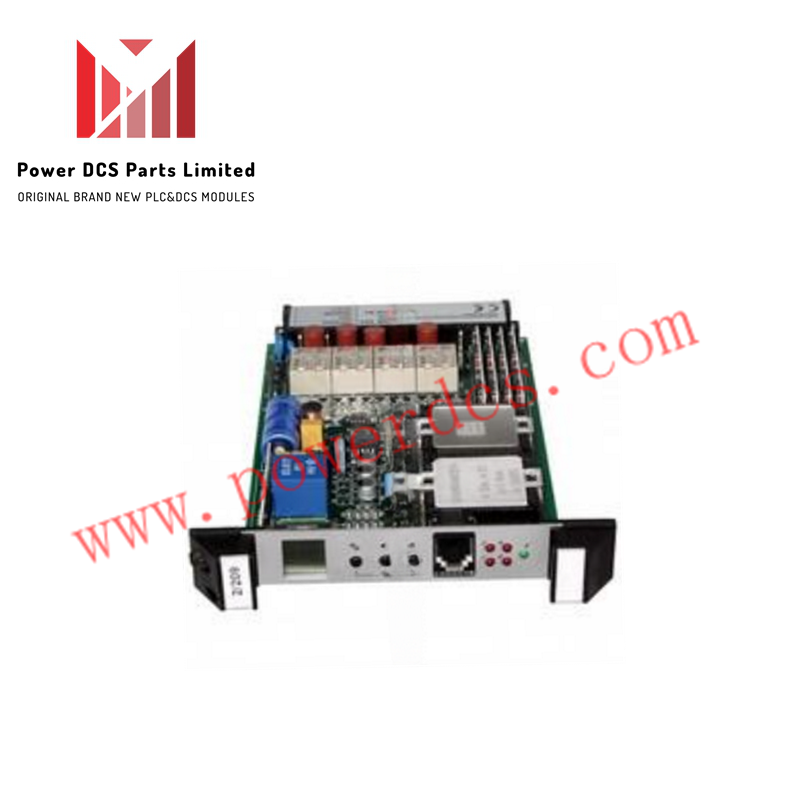

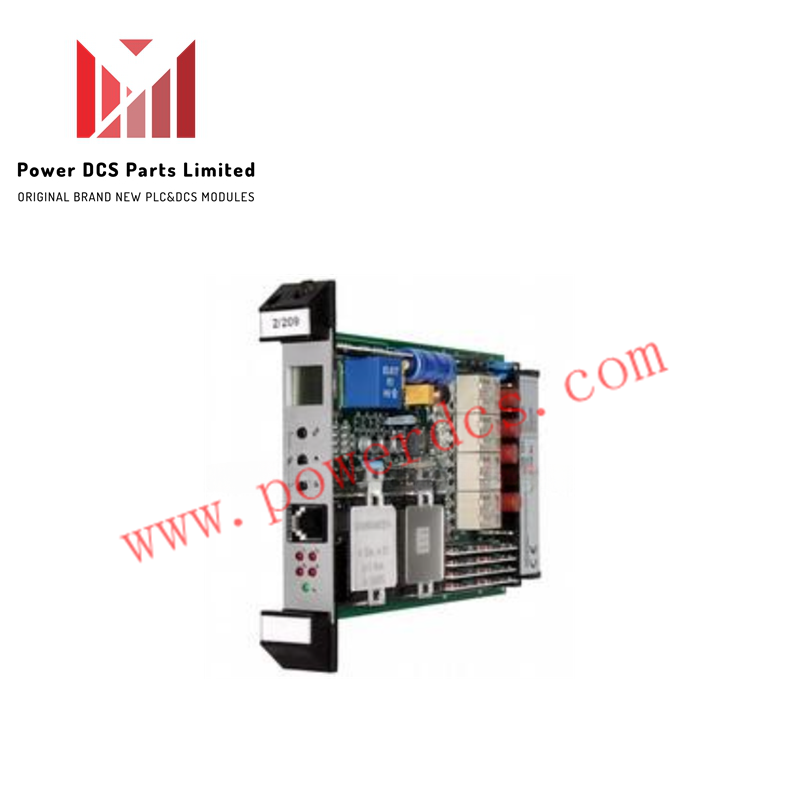

Pepperl+Fuchs 2/209/GHG1372041C4046 Signal Trip Amplifier

Description

The 2/209/GHG1372041C4046 from Pepperl+Fuchs is a 4-channel signal trip amplifier designed for precise monitoring and switching of analog current signals. It offers programmable thresholds and galvanic isolation for safe and flexible integration into process automation systems.

Specifications

• Manufacturer: Pepperl+Fuchs

• Model Number: 2/209/GHG1372041C4046

• Product Type: Signal Trip Amplifier

• Input Signal: 0/4–20 mA analog input

• Number of Channels: 4 input channels

• Output Type: 4 relay contact outputs

• Switching Frequency: <10 Hz

• Programming: Front-panel buttons or PC interface

• Isolation: Galvanic isolation between input, output, and power supply

• Mounting Method: DIN rail compatible

• Application: Process automation, signal monitoring, safety interlocks

Features

• Multi-Channel Design: Supports four independent analog input channels for versatile signal monitoring

• Relay Outputs: Provides four isolated relay contacts for alarm or control switching

• Programmable Thresholds: Easily configure trip points using front-panel buttons or software

• Galvanic Isolation: Enhances safety by isolating input, output, and power circuits

• Lead Monitoring: Detects open-circuit conditions for improved system reliability

• Compact Form Factor: Saves panel space while delivering high channel density

• Industrial Reliability: Designed for harsh environments with robust construction and stable performance
