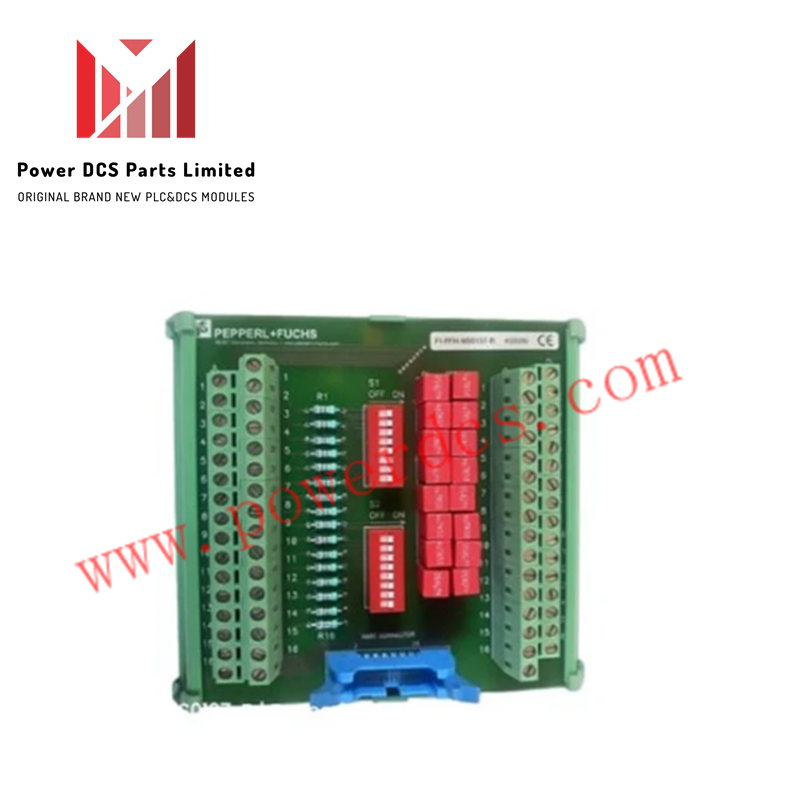

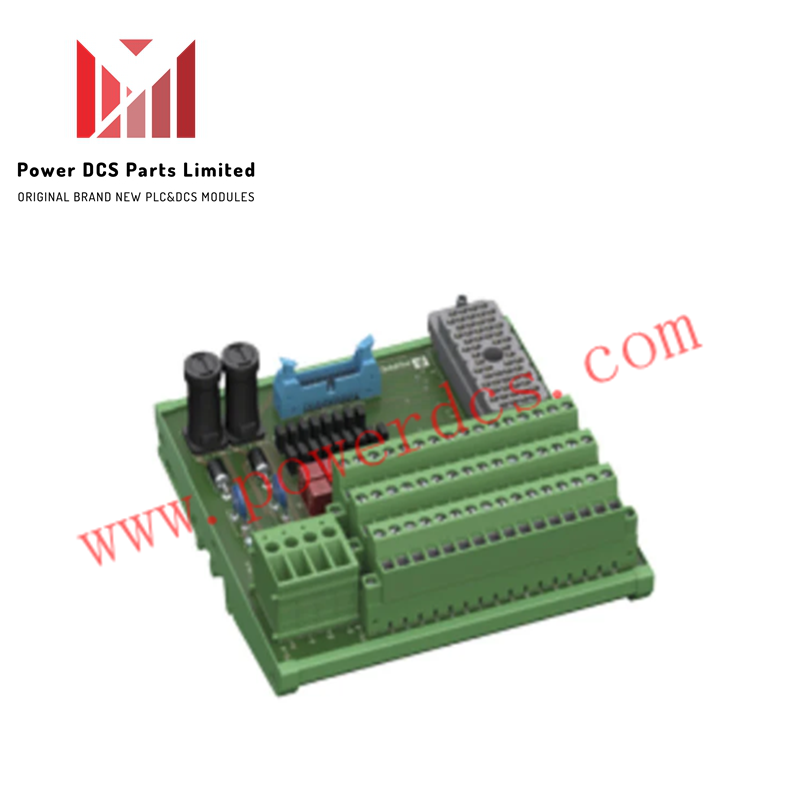

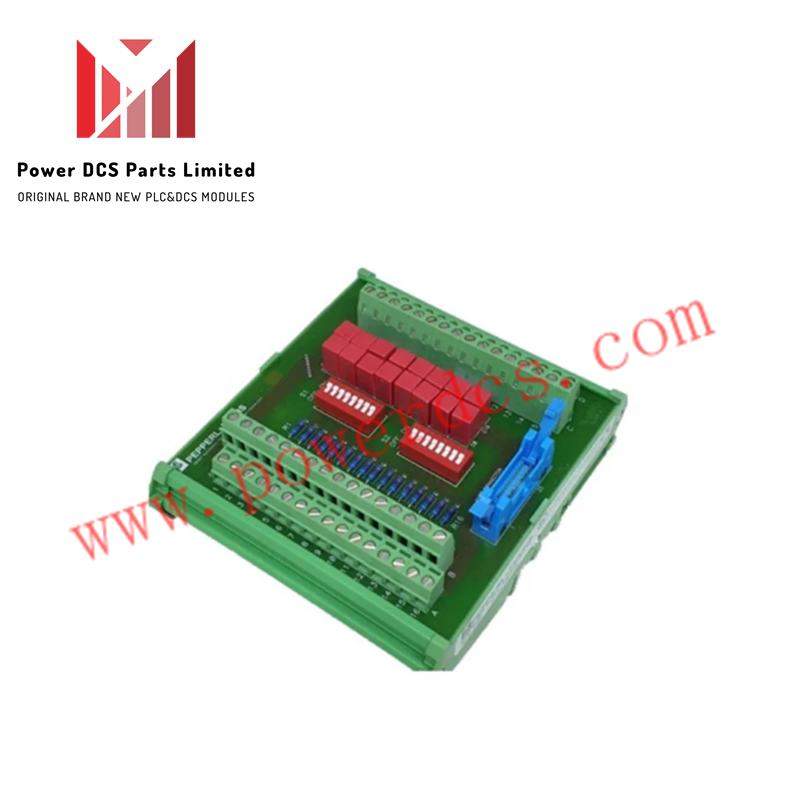

PEPPERL+FUCHS 22593 FI-PFH-NS0137-R HART Termination Board

Description

The PEPPERL+FUCHS FI-PFH-NS0137-R termination board (Part No. 22593) is designed for HART signal channels in non-intrinsically safe environments. It supports multiplexer integration and offers flexible DIP switch control in a compact DIN rail mountable format.

Specifications

• Model: FI-PFH-NS0137-R

• Manufacturer: PEPPERL+FUCHS

• Part Number: 22593

• Signal Type: HART, non-intrinsically safe

• Load Resistor: 220 ohms, switchable via DIP switch

• Interface Type: 26-pin IDC plug for multiplexer connection

• Rated Current: Maximum 30 mA per channel

• Control Element: DIP switch for operating mode selection

• Factory Setting: DIP switches S1 and S2 set to ON

• Protection Class: IP20 according to IEC 60529:2001

• Ambient Temperature: 0 to 50°C (32 to 122°F)

• Storage Temperature: -15 to 50°C (5 to 122°F)

• Humidity: ≤93%, non-condensing

• Shock Resistance: 15g, 11 ms per EN 60068-2-27

• Vibration Resistance: 1g, 10 to 150 Hz per EN 60068-2-6

• Dimensions: 110 x 125 x 61 mm (W x H x D)

• Weight: Approximately 210 grams

• Mounting: 35 mm DIN rail per EN 60715:2001

• Housing Material: PVC

• Core Cross Section: 0.25 to 1.5 mm² (24 to 16 AWG)

• Explosion Protection: Ex nA IIC T4 Gc

Features

• Multiplexer Compatibility: Supports direct connection via 26-pin IDC plug

• Switchable Load Resistor: DIP switch toggles resistor mode for flexible configuration

• Compact Design: Saves panel space with DIN rail mounting

• Dual-Side Terminals: Screw terminals on both field and control sides

• Industrial Durability: Shock and vibration resistant for harsh environments

• Clear Operating Modes: DIP switch settings simplify signal control

• Hazardous Area Ready: Certified for Zone 2 with Ex nA IIC T4 Gc marking

• Reliable Performance: Stable operation across wide temperature and humidity ranges

• Easy Installation: Standard DIN rail mounting and clear terminal layout
