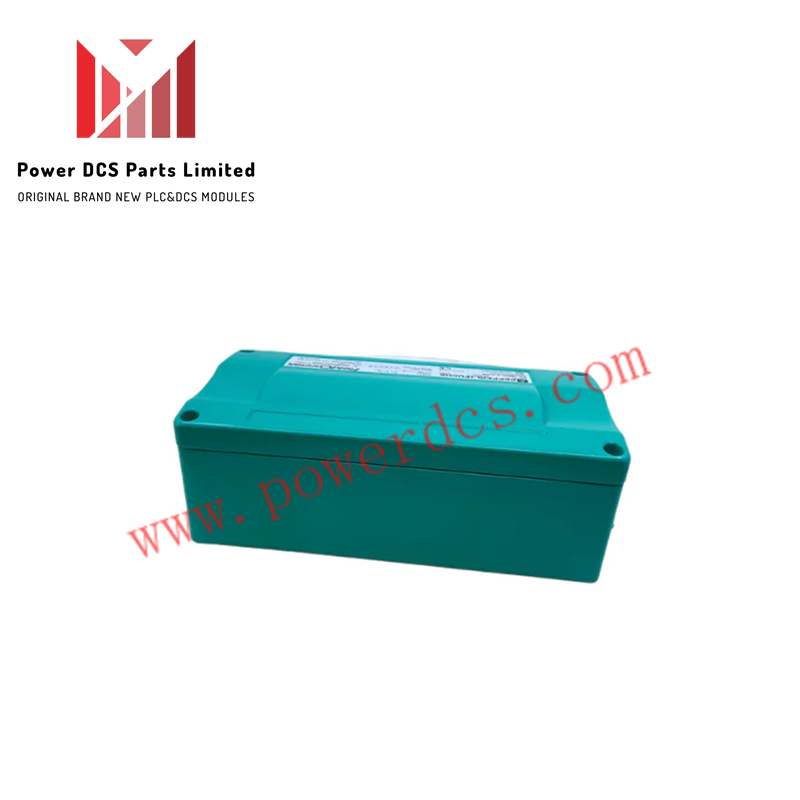

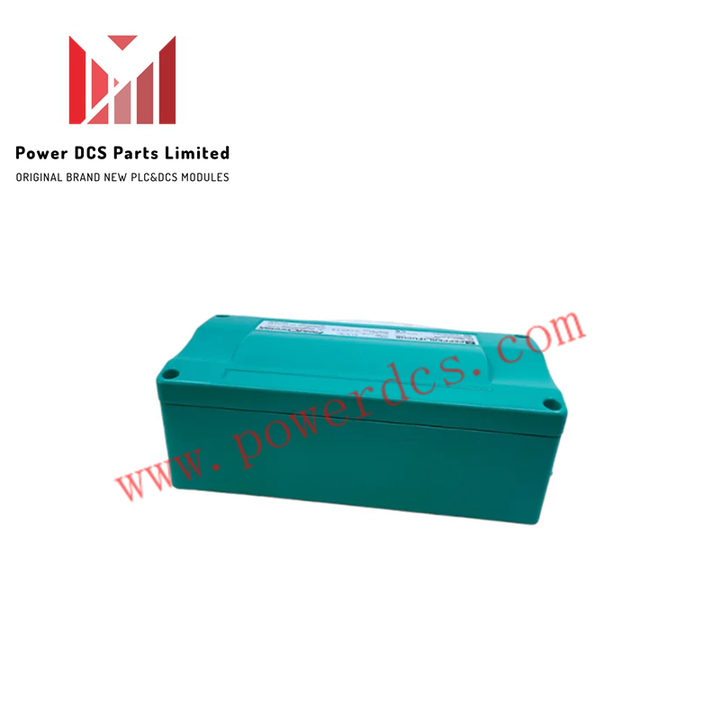

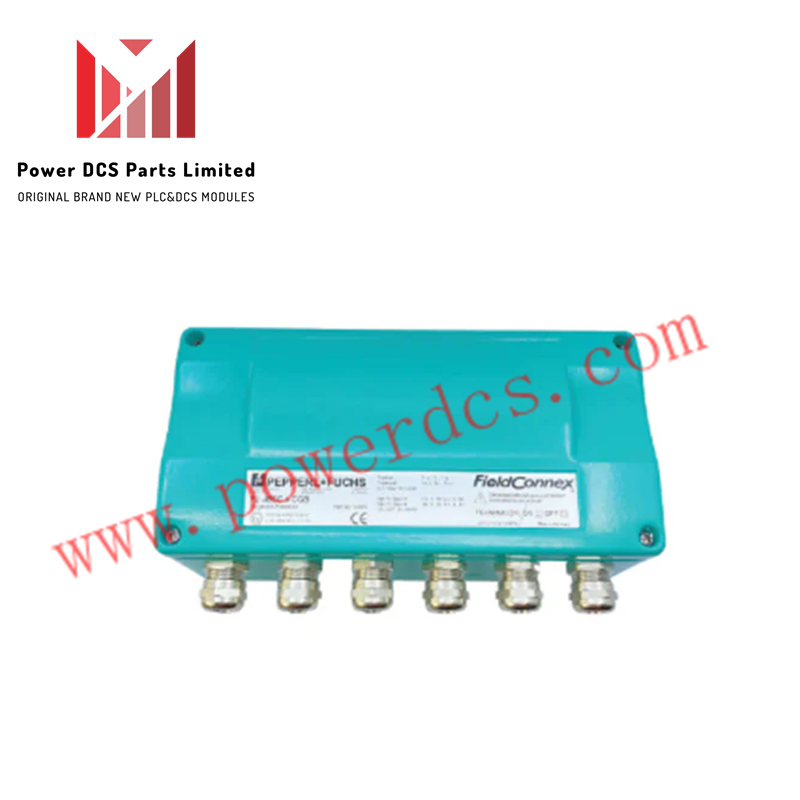

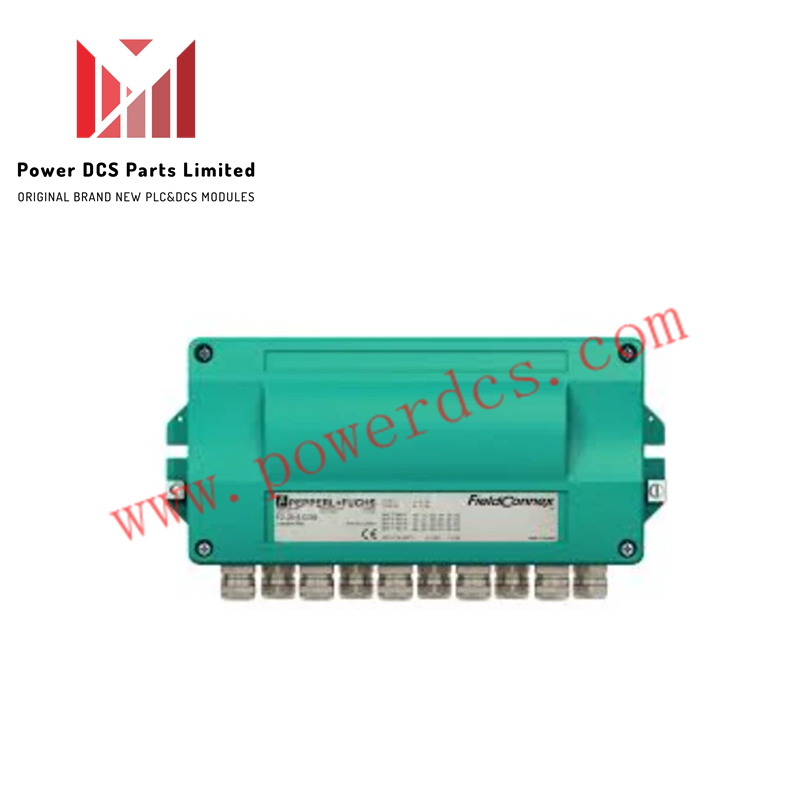

Pepperl+Fuchs F2-JBSC-4.CG Fieldbus Junction Box

Description

The F2-JBSC-4.CG Fieldbus junction box from Pepperl+Fuchs is engineered for robust industrial environments. It offers flexible grounding options and supports multiple fieldbus protocols for safe signal distribution.

Specifications

• Manufacturer: Pepperl+Fuchs

• Model Number: F2-JBSC-4.CG

• Product Type: Fieldbus Junction Box

• Rated Voltage: Maximum 35 V DC

• Rated Current: 3 A DC at 70°C, with 0.1 A/K reduction

• Protection Grade: IP67 (dust-tight and waterproof)

• Ambient Temperature Range: -40°C to +85°C

• Dimensions: 258 mm × 114 mm × 84 mm (excluding cable glands)

• Weight: 1800 g

• Mounting Method: Wall mounting

• Connection Type: Fixed screw terminals or plug-in spring clamp connectors

• Grounding Options: Hard and capacitive grounding selectable via jumper

Features

• Selectable Outputs: Offers 4 to 8 configurable outputs for flexible fieldbus distribution

• Protocol Compatibility: Supports FOUNDATION Fieldbus H1 and PROFIBUS PA networks

• Installation Environment: Designed for non-explosion hazardous areas

• Durable Housing: Aluminum enclosure withstands harsh industrial conditions

• Flexible Grounding: Jumper-based selection between hard and capacitive grounding concepts

• Standards Compliance: Meets FISCO and Entity model requirements for intrinsic safety

• Reliable Connections: Terminal options simplify wiring and maintenance in the field
