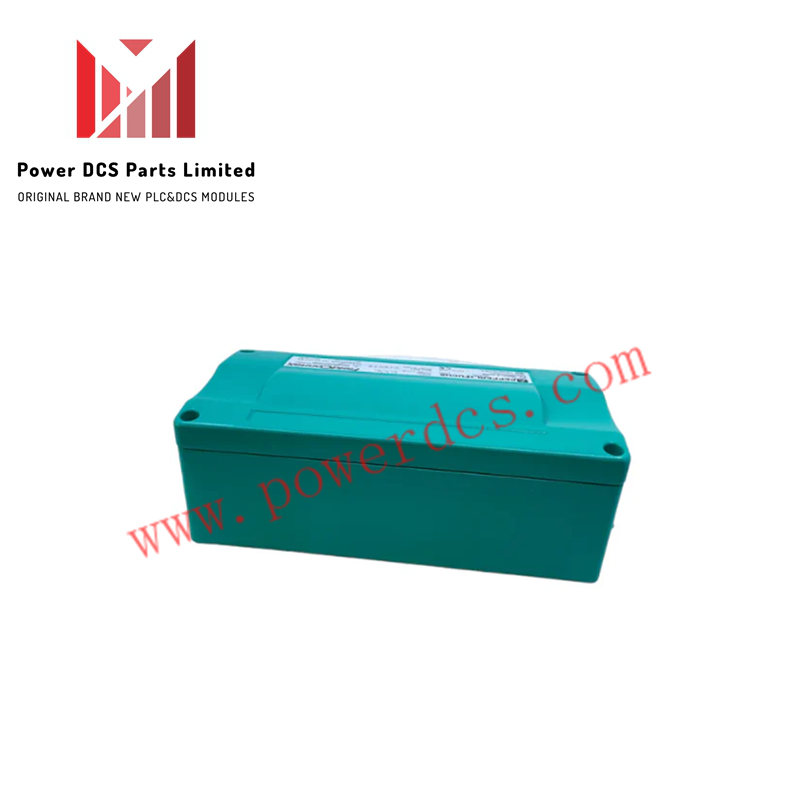

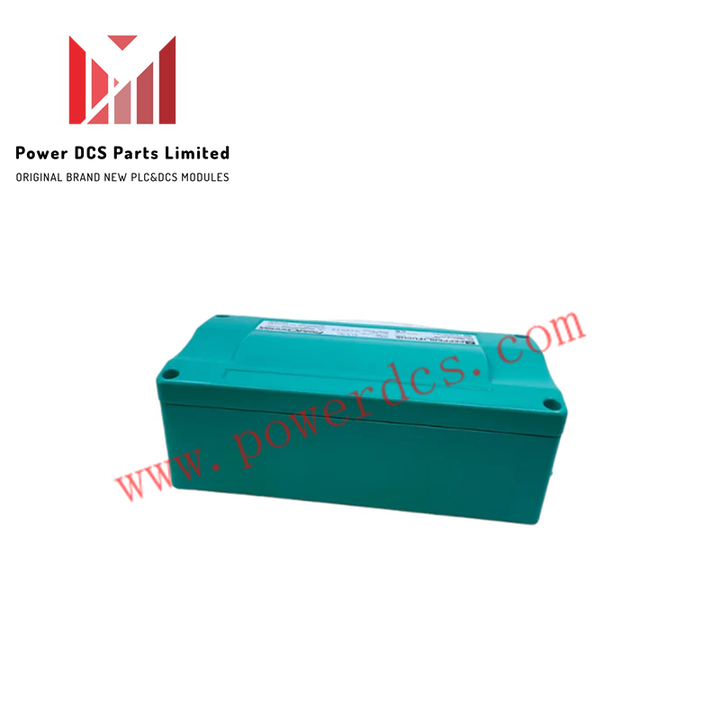

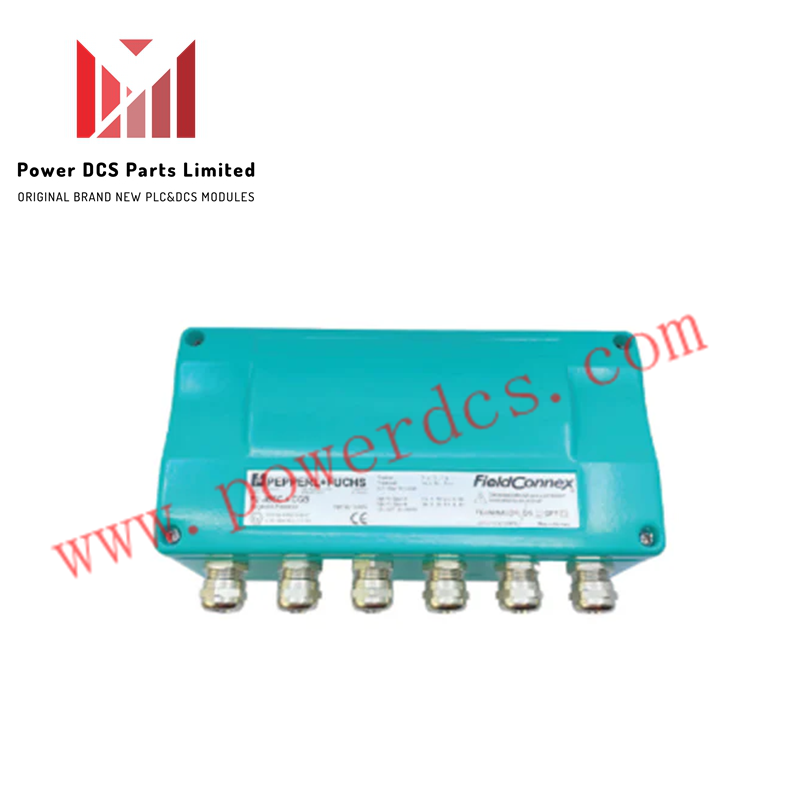

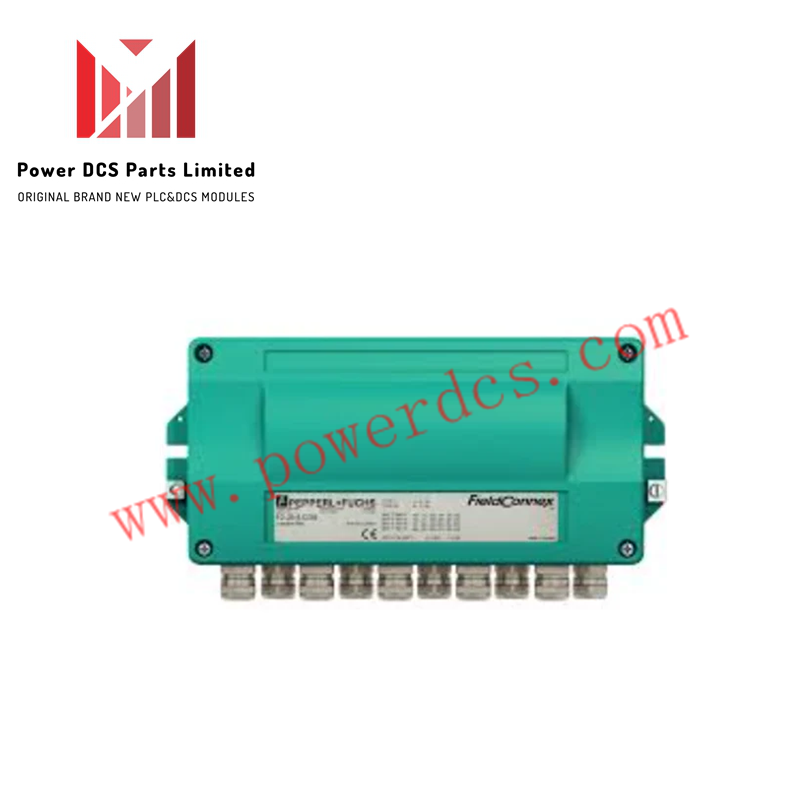

Pepperl+Fuchs F2-JBSC-8.CG Field Distributor Junction Box

Description

The F2-JBSC-8.CG Field Distributor Junction Box from Pepperl+Fuchs is a passive coupler designed for FOUNDATION Fieldbus H1 and PROFIBUS PA networks. It ensures stable signal distribution in non-explosion hazardous areas.

Specifications

• Manufacturer: Pepperl+Fuchs

• Model Number: F2-JBSC-8.CG

• Product Type: Field Distributor Junction Box

• Rated Voltage: Maximum 35 V DC

• Rated Current: 3 A DC at 70°C, with 0.1 A/K reduction

• Ambient Temperature Range: -40°C to +85°C

• Dimensions: 258 mm × 114 mm × 84 mm (excluding cable glands)

• Core Cross Section: Up to 2.5 mm²

• Mass: 1800 g

• Mounting Method: Wall mounting

• Protection Grade: IP67

• Electromagnetic Compatibility: NAMUR NE 21

• Fieldbus Standard: IEC 61158-2

Features

• Number of Outputs: Provides 8 selectable outputs for field device connectivity

• Housing Material: Anodized aluminum enclosure ensures durability in industrial environments

• Connection Type: Offers fixed screw terminals or plug-in spring clamp connectors

• Grounding Concepts: Jumper-selectable hard or capacitive grounding for flexible installation

• Protocol Support: Compatible with FOUNDATION Fieldbus H1 and PROFIBUS PA systems

• Environmental Resistance: IP67 rating protects against dust and water ingress

• Reliable Integration: Designed for stable communication in non-explosion hazardous zones
