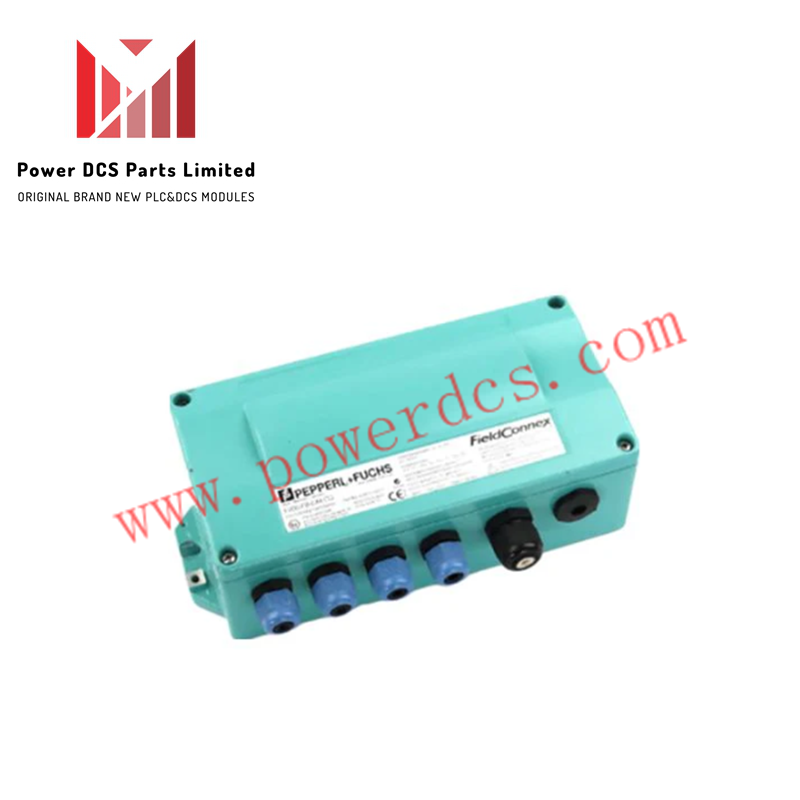

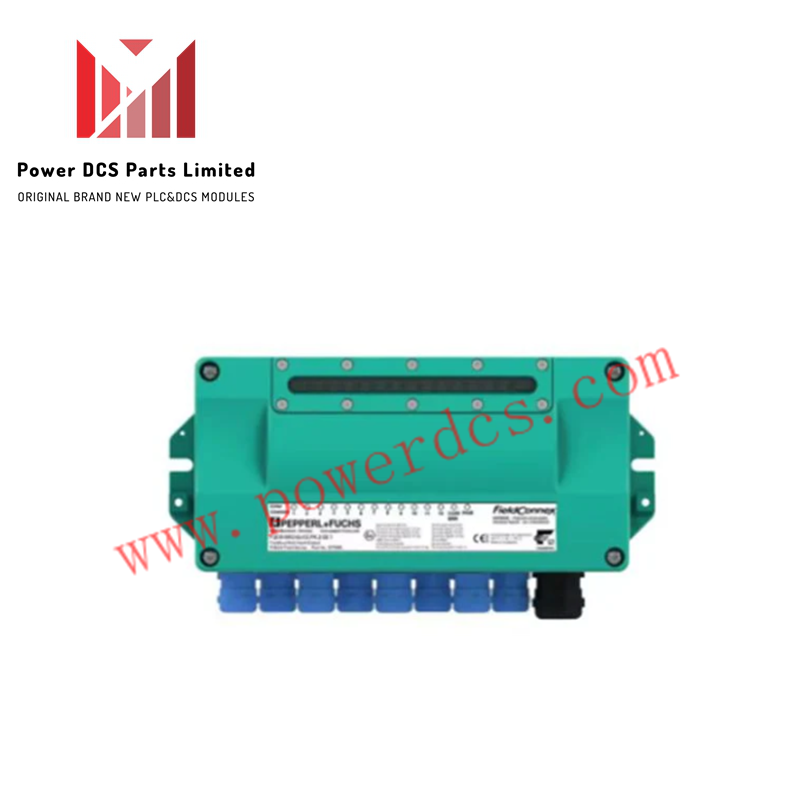

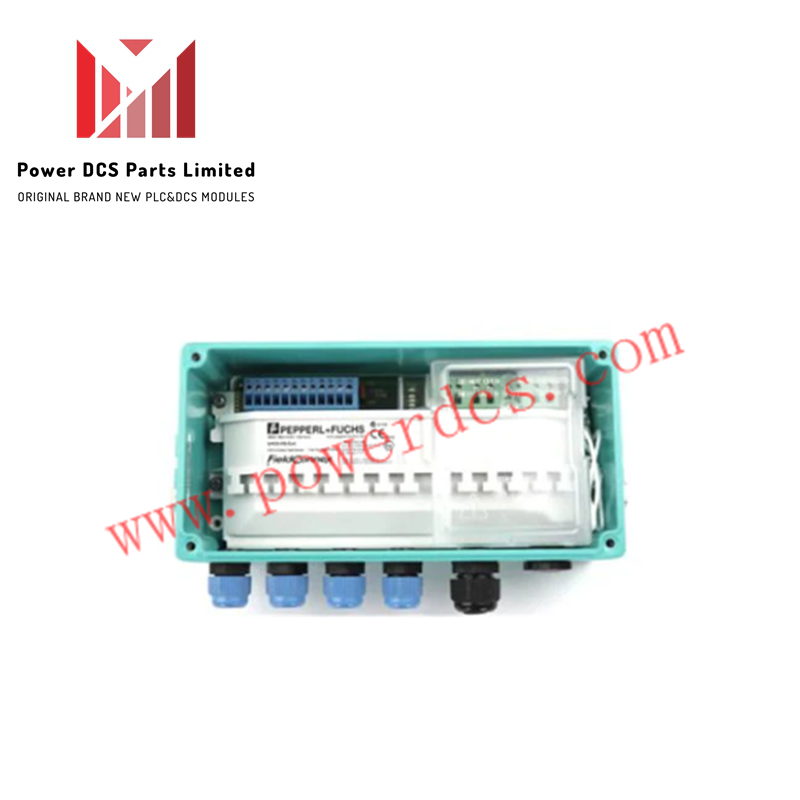

Pepperl+Fuchs F2D0-TI-EX8.FF.CG.ST Temperature Multi-Input Device

Description

The F2D0-TI-EX8.FF.CG.ST from Pepperl+Fuchs is a rugged temperature multi-input device designed for hazardous area installations. It supports multiple sensor types and integrates seamlessly with FOUNDATION Fieldbus H1 networks.

Specifications

• Manufacturer: Pepperl+Fuchs

• Model Number: F2D0-TI-EX8.FF.CG.ST

• Product Type: Temperature Multi-Input Device

• Sensor Channels: 8 inputs for temperature or analog sensors

• Supported Sensor Types: RTD (2-, 3-, 4-wire), thermocouples, voltage, resistance

• Fieldbus Protocols: FOUNDATION Fieldbus H1, PROFIBUS PA

• Installation Zone: Zone 1/Div. 1; sensors in Zone 0/Div. 1

• Connection Method: FISCO or Entity model

• Temperature Compensation: Cold junction compensation included

• Terminal Type: Removable terminals for easy wiring

• Monitoring: Sensor condition monitoring supported

• Integration: PCS integration via device description and function blocks

Features

• Multi-Sensor Support: Handles RTD, T/C, voltage, and resistance inputs across 8 channels

• Hazardous Area Ready: Certified for Zone 1/Div. 1 with intrinsically safe design

• Fieldbus Compatibility: Fully supports FOUNDATION Fieldbus H1 and PROFIBUS PA networks

• Simplified Configuration: Uses concentrator method for efficient setup and diagnostics

• Cold Junction Compensation: Ensures accurate thermocouple readings in varying conditions

• Robust Housing: Aluminum enclosure with corrosion-resistant coating for field durability

• Removable Terminals: Speeds up installation and maintenance in industrial environments
